12 Ton HD Hydraulic Scissor Hoist Kit - Fits 16-20' Dump Body PF-625

In stock - 34 items available
SKU: PF-625-K
Regular price $ 3,195.00
Model

We offer the following methods of delivery:

  • Same day Freight Shipping when ordered Mon-Fri before 12pm central time. (excluding holidays)
  • Pickup from our Mandeville, Louisiana warehouse
  • In some cases, free shipping - please contact us: sales@primarymover.com or call 985-888-6554

PF-625 HD Scissor Hoist Dump Trailer Kit

The PF-625 HD is part of our Extreme Lift Series, purpose-built for the most demanding jobs and heaviest loads. Rated for 12 tons (24,000 lbs), this hoist features a massive 6.5" diameter cylinder with a 10mm thick wall and an extended 25" stroke—delivering industry-leading lift height and power. With a dramatically reinforced frame and HD Hinges, the PF-625 HD is ideal for 16 to 20-foot dump trailers operating in rugged environments.

Key Features

  • Extreme Durability:
    6.5" diameter cylinder with 10mm thick sidewall and a reinforced structure for maximum pressure resistance.

  • 25" Extended Stroke:
    Designed to lift longer dump beds with greater efficiency and control.

  • Reinforced Frame Design:
    Built to endure years of abuse on tough job sites.

  • Heavy-Duty Hinges:
    HD hinges offer superior pivot strength and stability under heavy loads.

  • 3-Year Manufacturer Warranty:
    Comprehensive coverage to protect your investment.


Kit Options

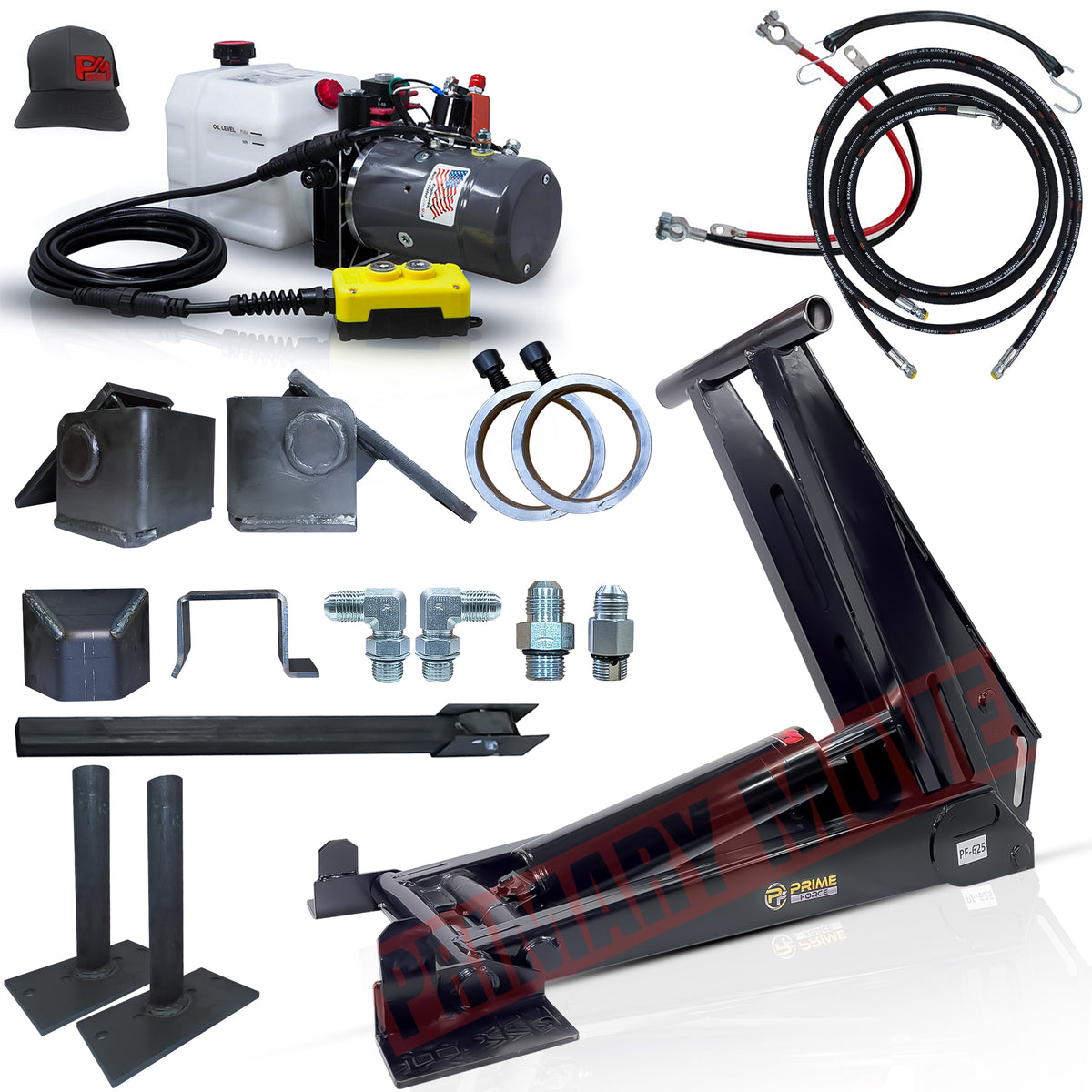

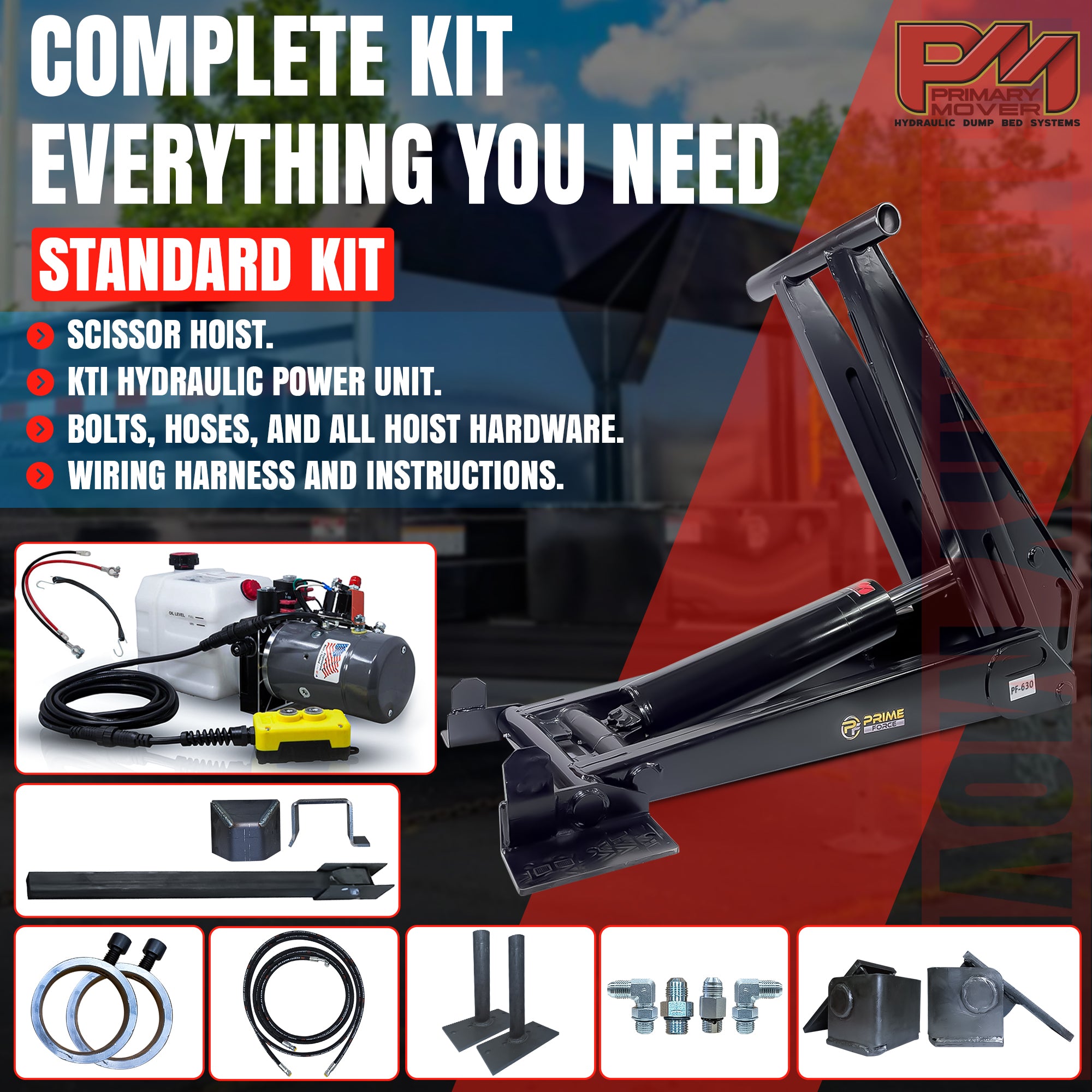

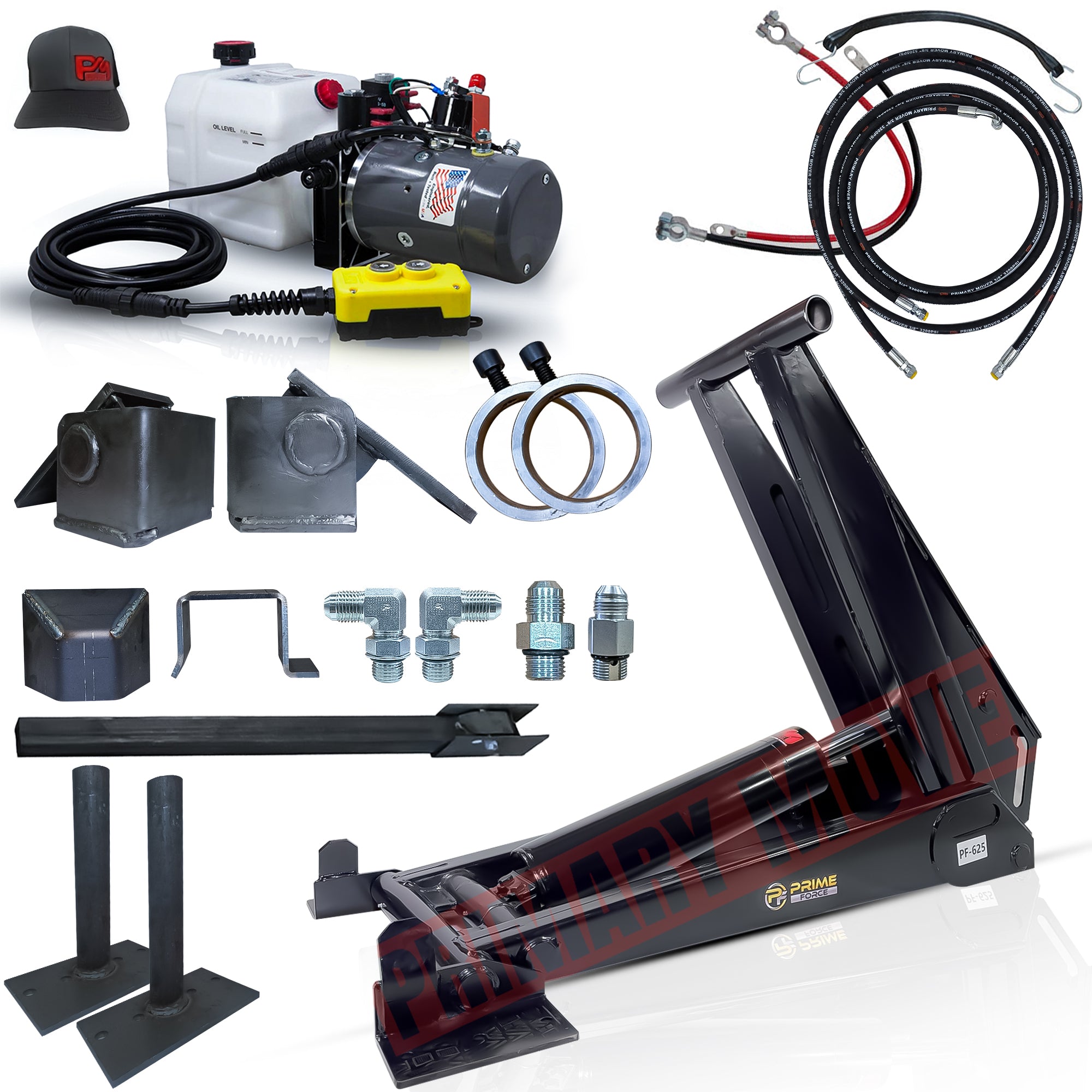

Standard Kit Includes:

  • 6.5" Cylinder

  • Mounting Brackets

  • HD Hinges

  • Hydraulic Hose & Connectors

  • Safety Bar

  • Bridon Load Control Valve

  • KTI Double Acting Hydraulic Pump with 2-Button Remote

  • 15' Pendant Remote (Power-Up/Power-Down)

  • Safety Labels & Manual

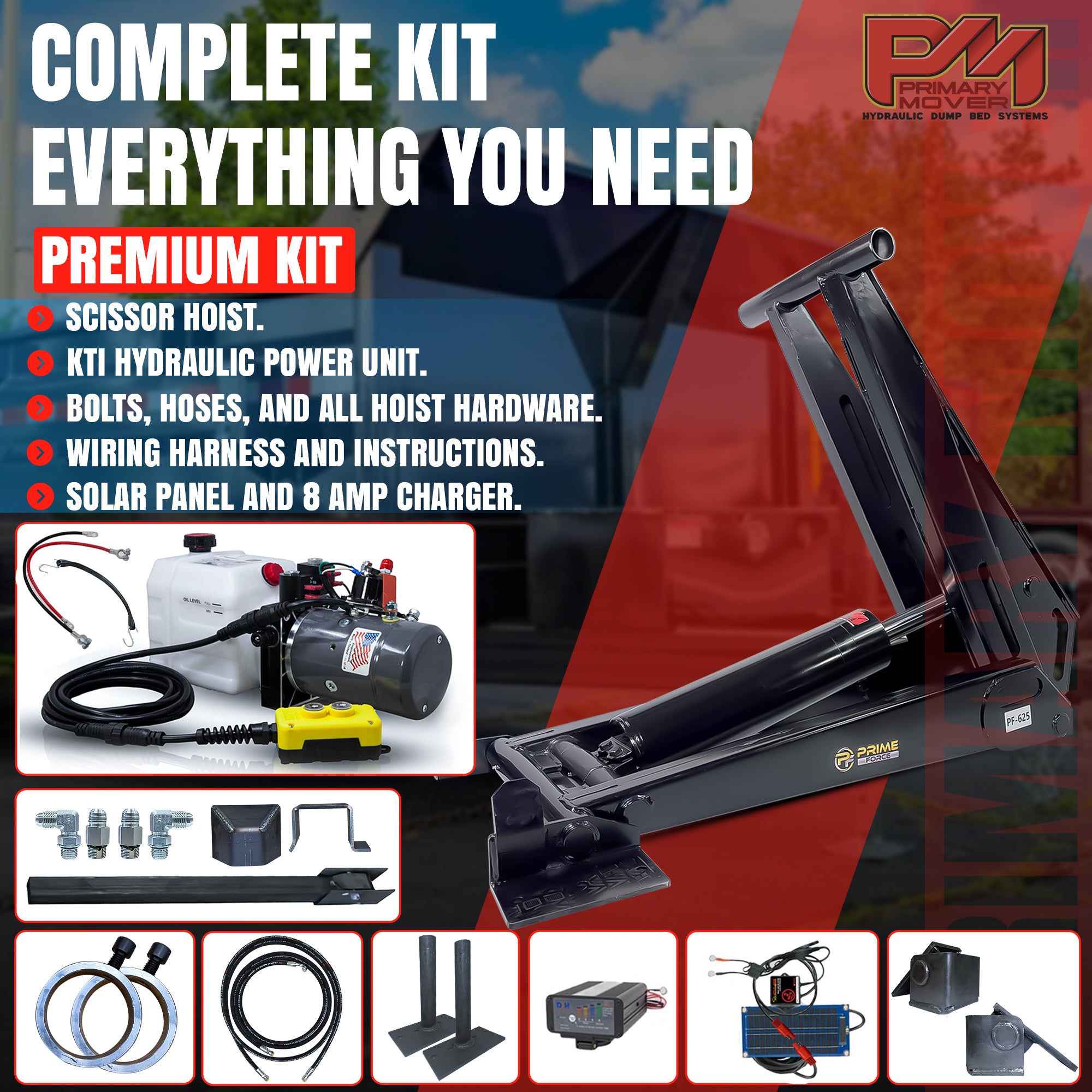

Premium Kit Adds:

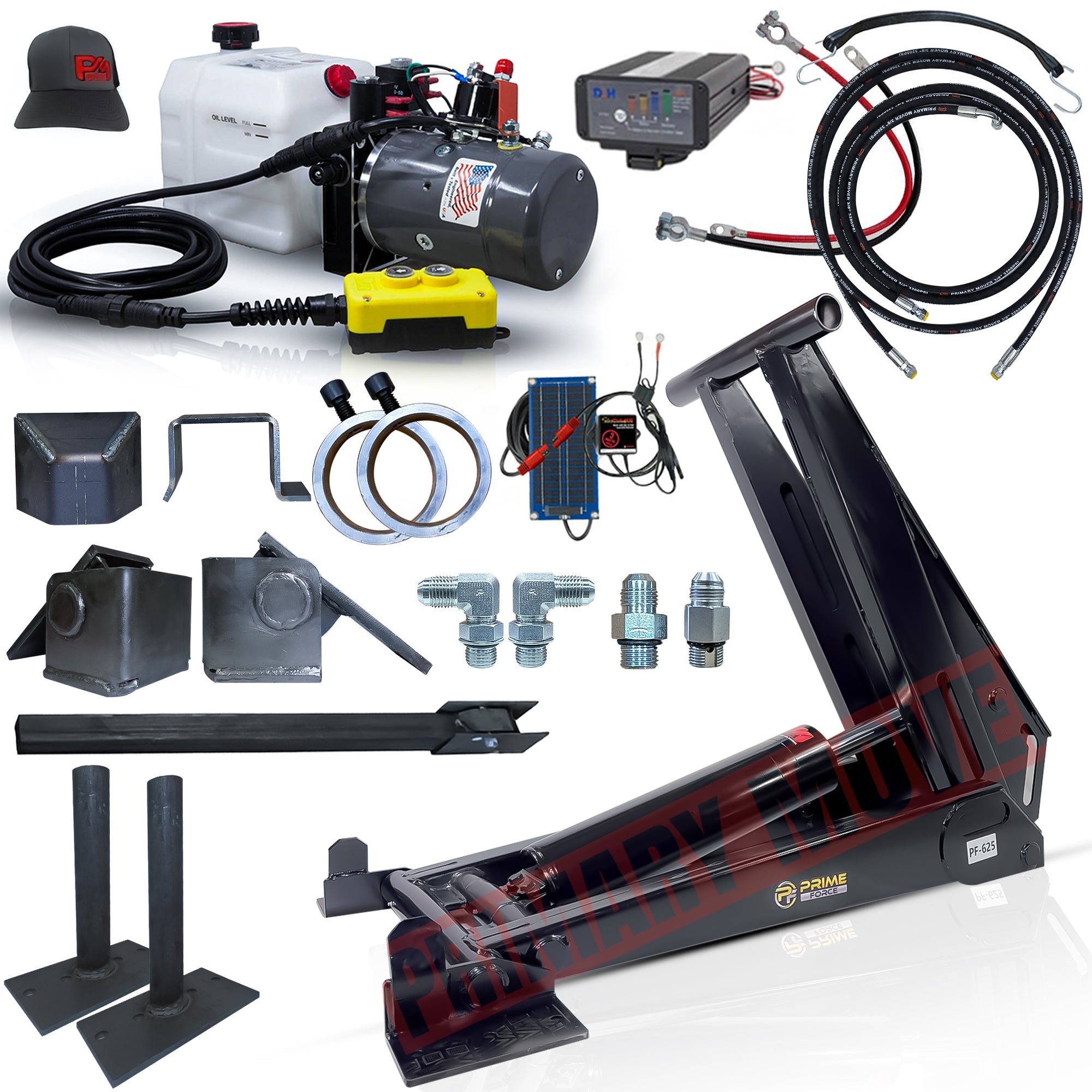

  • SolarPulse 3-Watt Solar Charger

  • 8 Amp Panel Mount AC Charger

Hoist Only Kit:
Includes just the hoist components—no hydraulic power unit or electrical accessories included.


Power Unit Configuration (Updated)

⚠️ Primary Mover power units are currently unavailable.

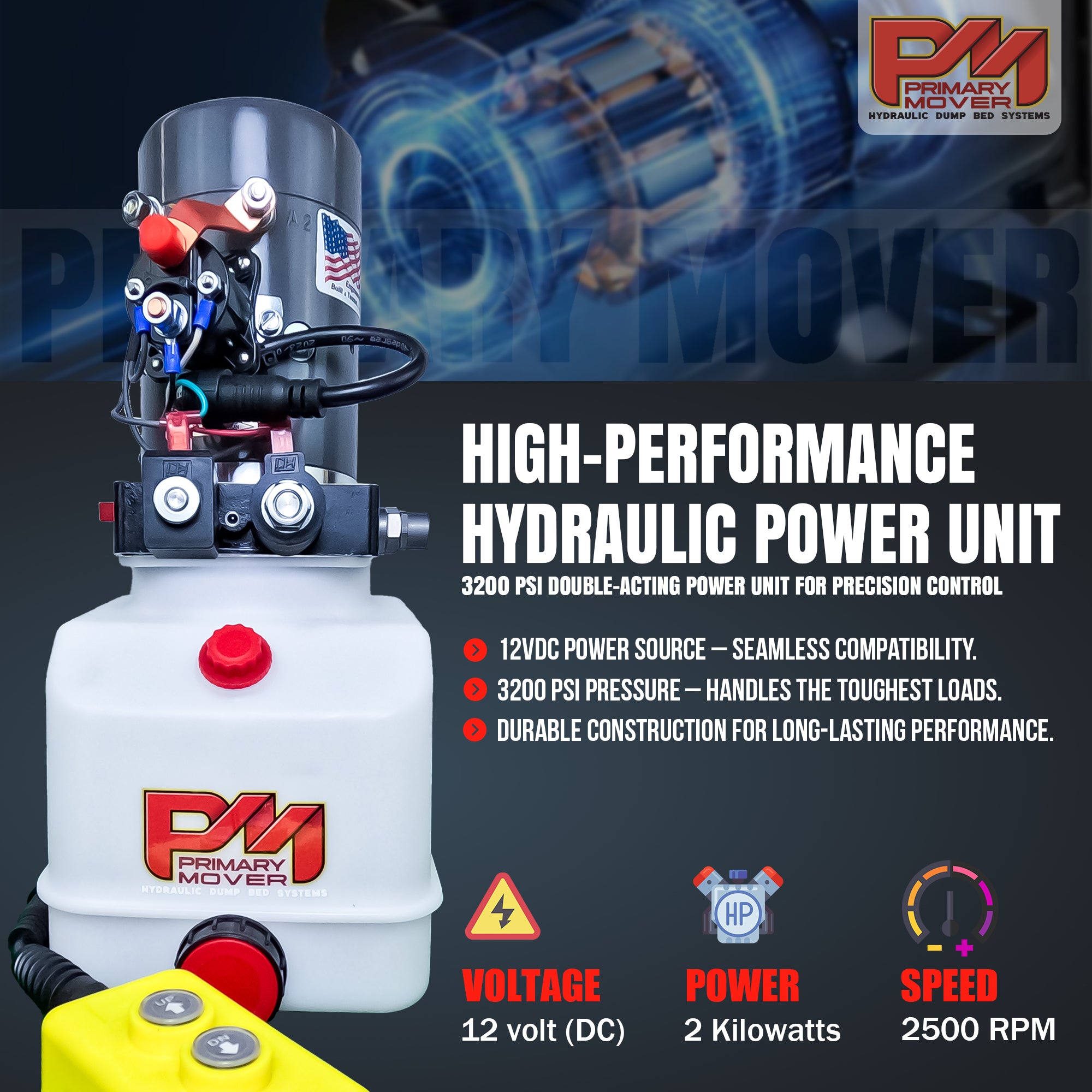

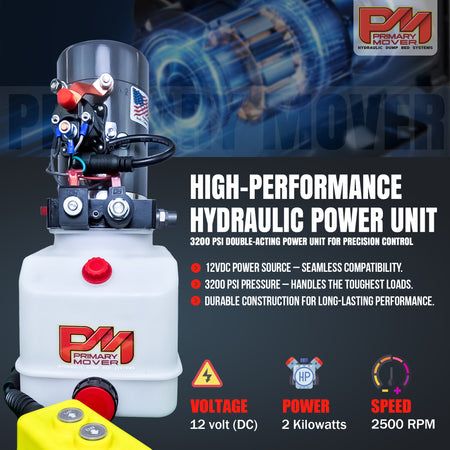

All kits now come standard with the KTI Double Acting Hydraulic Power Unit and a 2-button pendant remote.Upgrade to a 3-button KTI remote (featuring gravity down function) is available for a small additional charge.

24VDC Power Unit option is still available for high-voltage applications (additional cost applies).


Shipping Information

FREE DELIVERY to commercial business addresses within commercially zoned areas equipped with a freight dock or forklift. Residential, rural, or farm deliveries may incur additional fees. Please review this information carefully to avoid unexpected charges. For more details, see below or contact us directly.

Kits are shipped on a secure pallet for safe transit.

Specifications and Downloads

Download: Prime Force Warranty
Download: Prime Force Manual
Download: Compare Prime Force Models by Capacity
Download: Compare Prime Force Models by Dimensions
