Telescopic Dump Trailer Cylinder Kit - 30 Ton Capacity - 120" Stroke - Fits 12-16' Dump Body | EF-12-120

EF-12-120 | Telescopic Dump Trailer / Truck Kit – 120" Stroke | 30+ Ton Capacity | Fits 12–16' Dump Beds

The EF-12-120 is a high-capacity telescopic hoist in our Extreme Force Series, purpose-built to handle large, heavy loads. With a 120" stroke, this kit is ideal for 12 to 16-foot dump trailers or truck beds, delivering the power and reach necessary for 30+ ton payloads.

Available in three configurations:

• EF-12-120-H: Hoist Only

• EF-12-120-SK: Standard Kit with PM Single Engine High-Speed Power Unit

• EF-12-120-ES: Extreme Series Kit with Dual 24VDC High-Flow Power Unit

🔧 Kit Options:

EF-12-120-H – Hoist Only Kit

Includes:

• 120" Stroke Telescoping Cylinder

• H-Frame Lower Mounting Bracket

• Two Upper Mounting Brackets

Perfect for builders sourcing their own hydraulic setup.

EF-12-120-SK – Standard Kit (Single Engine Power Unit)

Includes:

• All components from the Hoist Only Kit

• Primary Mover 12VDC High-Speed Power Unit with #8 SAE ports

• Hydraulic Hose Assembly

• Hydraulic Fittings

• Bridon Load Control Valve

• Safety Arm and Safety Cup

• Heavy-Duty Hinges

• Battery Cables

• Rubber Retaining Strap

⏱ Cycle Times (Standard Kit):

• Up Time: 1 minute 15 seconds

• Down Time: 45 seconds

⚙️ The PM power unit features larger #8 BOS ports, enabling significantly improved flow over the industry-standard #6 port setups.

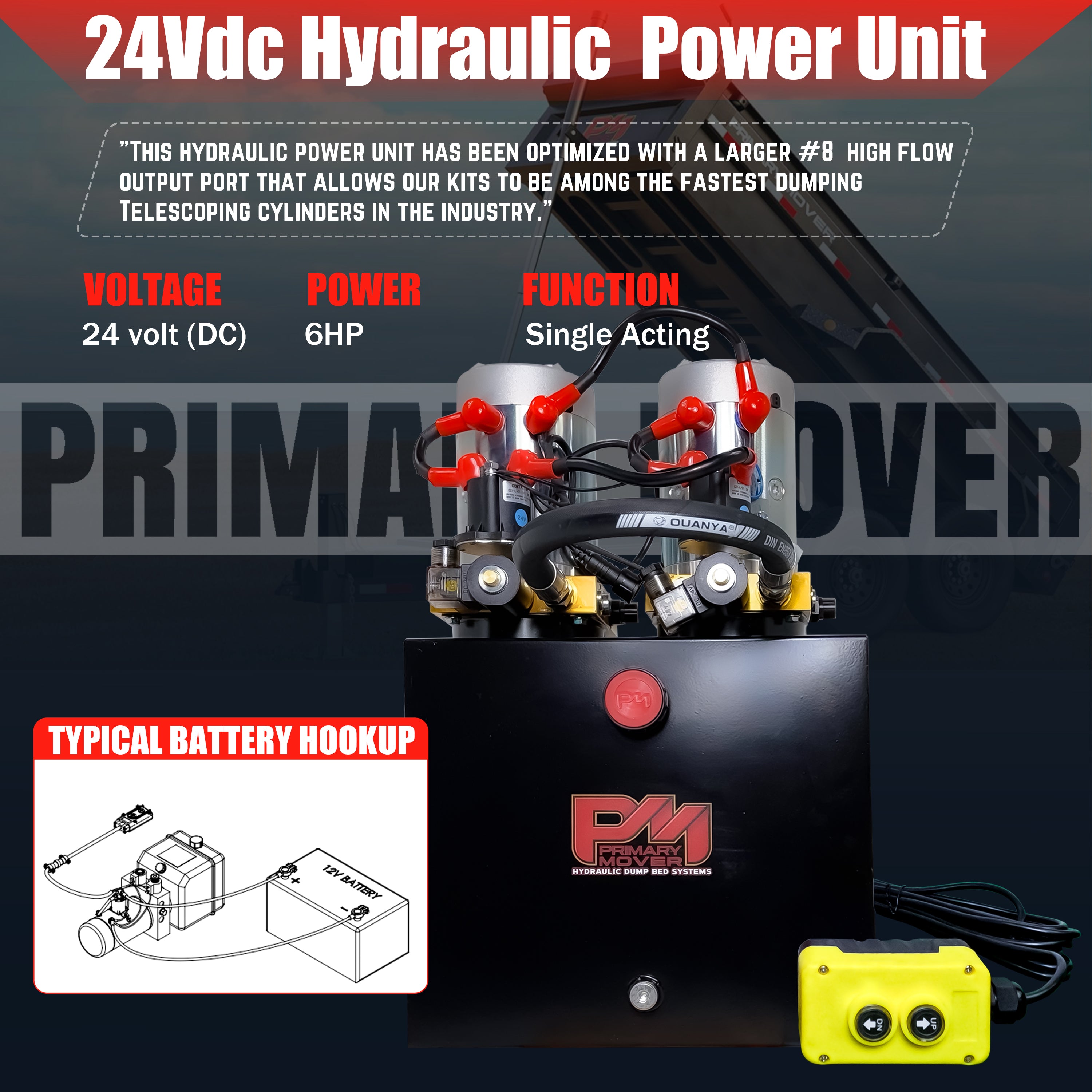

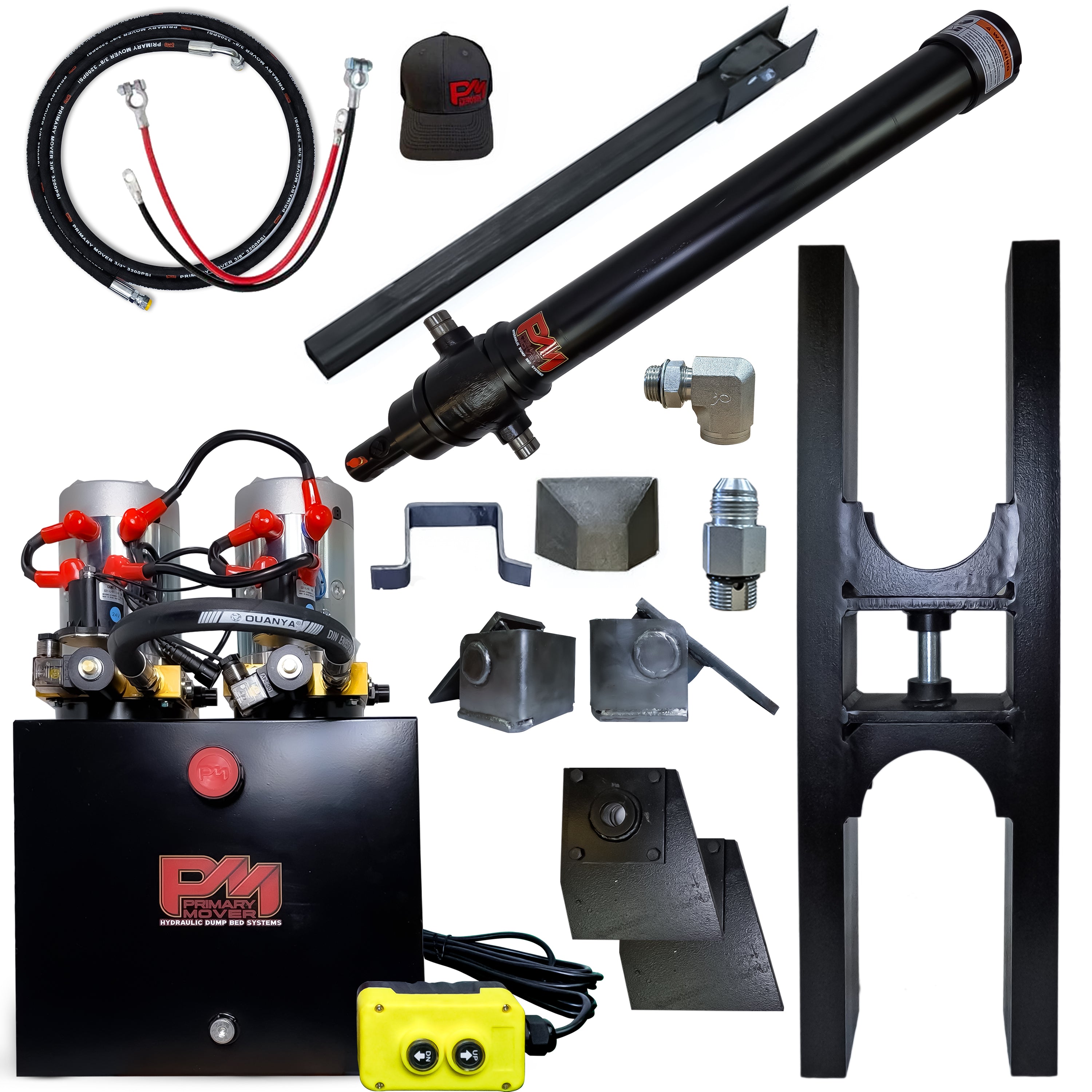

EF-12-120-ES – Extreme Series Kit (Twin Engine 24VDC Power Unit)

Includes:

• All components from the Standard Kit

• Twin 24VDC High-Flow Power Unit (dual high-speed motors running in parallel)

• Designed to handle high-volume dump cycles with speed and reliability

⏱ Cycle Times (Extreme Series):

• Up Time: 37.5 seconds (~50% faster)

• Down Time: 38 seconds (~15% faster)

⚡ Ideal for commercial operators and anyone seeking maximum hydraulic performance
🔋 Requires 24VDC (typically two 12V batteries in series)
🔽 Expect quicker resets and higher throughput with no compromise in control

📄 Installation Resources:

• Download Quick Start Guide

• Download Full Installation Manual

🚚 Shipping Info:

• ✅ Free delivery to commercial addresses with loading dock or forklift

• 📦 Kits ship on a secured pallet via freight

• ⚠️ Residential, rural, or farm deliveries may incur additional charges — contact us for a quote
