Single 3.5" x 30" Cylinder Direct Push Lift Kit | PCK-3530-DP

In stock
SKU: PCK-3530-DP
Regular price $ 1,030.00

We offer the following methods of delivery:

The Direct Push Dump Bed Lift Kit is an exceptional solution for those who want to maximize their trailer's capabilities without compromising space. The compact design ensures that the lift kit won't take up too much room, which allows you to make the most of your trailer's available space.

Key Features:

  • Single 3.5" x 30" cylinder for superior lifting performance
  • Capacity of 2T to 6T depending on trailer length and overhang
  • Fits dump bed lengths ranging from 8' to 16'
  • Compact design to maximize available space
  • Includes everything needed for installation


  • Haul heavier loads with ease, saving you time and energy
  • Complete jobs faster with powerful lifting capabilities
  • Perfect for hauling heavy materials, including construction equipment, gravel, dirt, etc.
  • Seamless installation with all required components included in the kit
  • Compact design allows you to maximize your trailer's available space

Download: Direct Push Manual

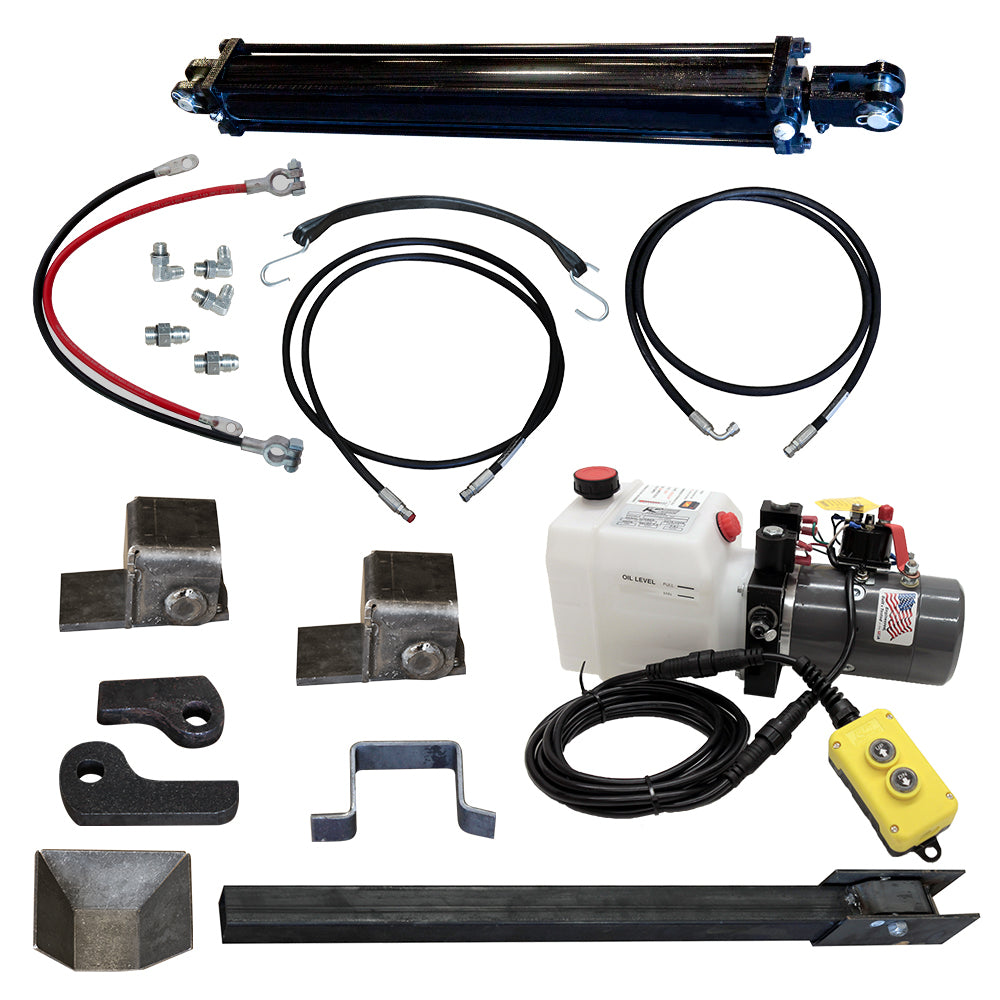

3.5 Single Cylinder Kit Includes:

  • Model: PCK-3530-DP
  • Hydraulic Power Unit (HPU) Double Acting
  • Two Hinges
  • Safety Arm
  • 3.5" x 30" Cylinder Assembly (Tie-rod)
  • Safety Arm Cup
  • Safety Arm Storage Arm Bracket
  • Rubber Battery Strap
  • 3/8" x 120" Long Hose
  • 3/8" x 110" Long Hose
  • Hydraulic Fittings
  • Bridon Load Control
  • Two Battery Cables 2GA. X 16"
  • Two Cylinder Supports
