Telescopic Dump Trailer Cylinder Kit - 30 Ton Capacity - 108" Stroke - Fits 10-14' Dump Body | EF-12-108

EF-12-108 | Telescopic Dump Trailer / Truck Kit – 108" Stroke | 30+ Ton Capacity | Fits 10–14' Dump Beds

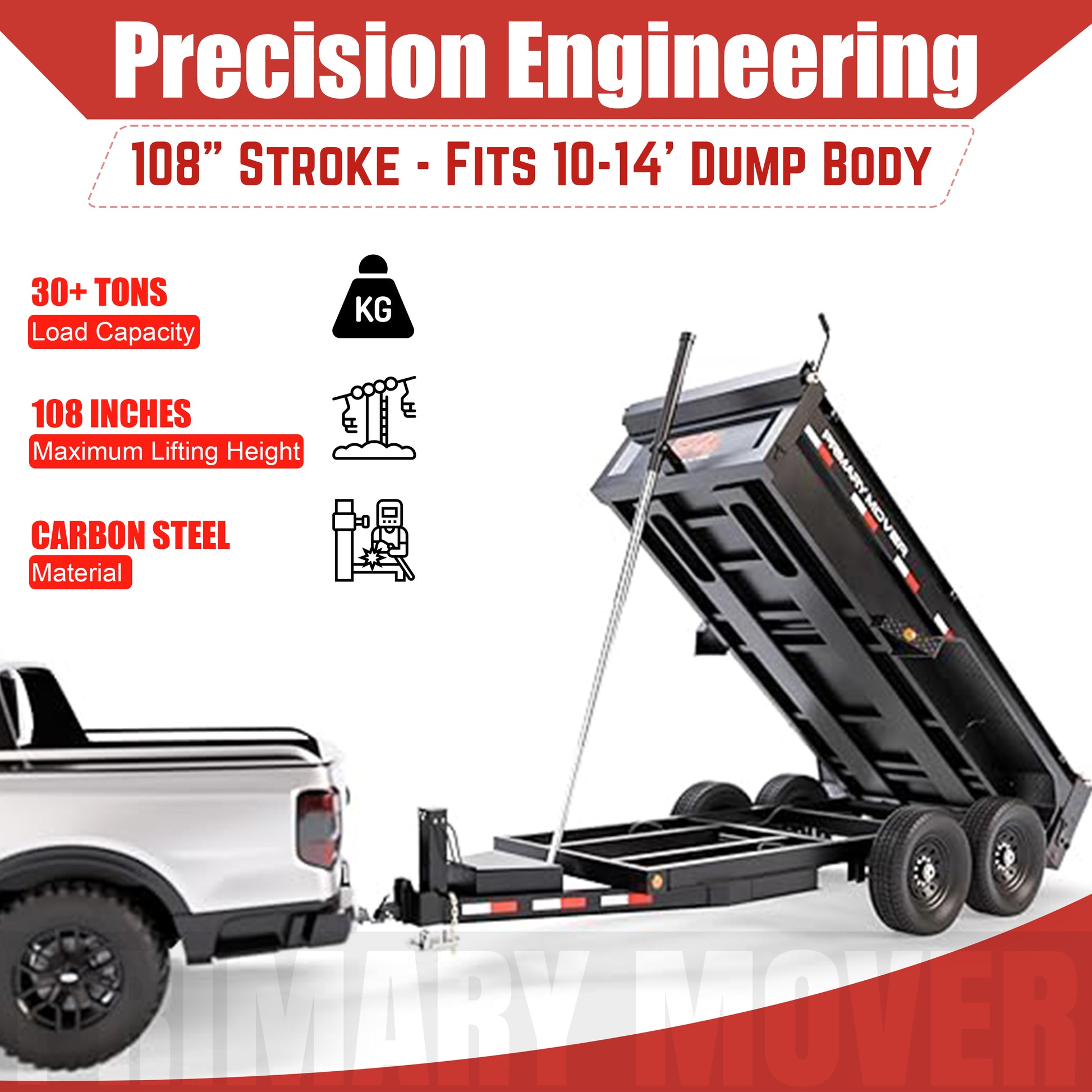

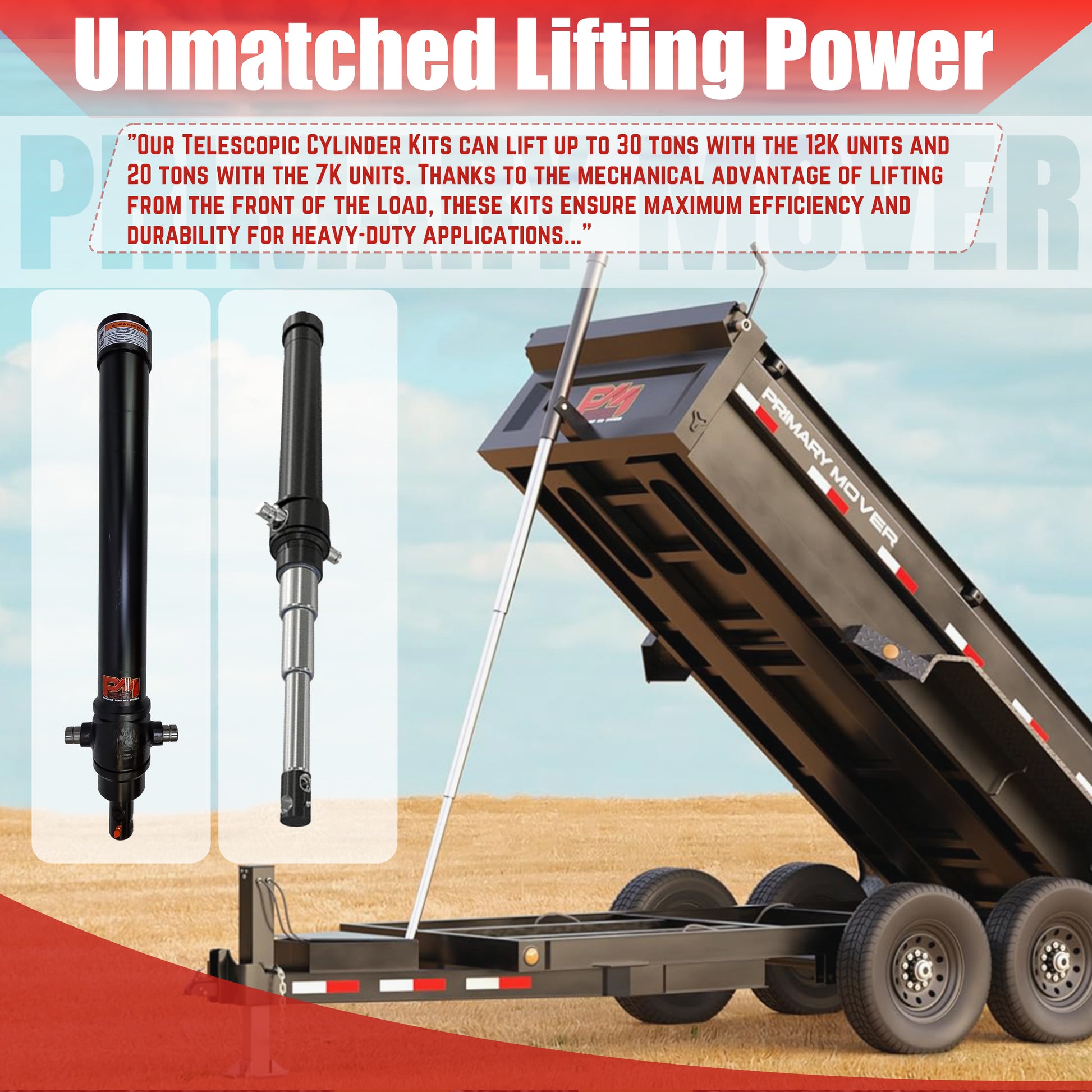

The EF-12-108 is a heavy-duty telescopic hoist in our Extreme Force Series, purpose-built to handle 30+ ton payloads. With a 108" stroke and larger diameter stages, this 3-stage cylinder is ideal for trailers or truck beds measuring 10 to 14 feet in length, delivering the power, height, and angle needed for serious loads.

Available in three configurations:

• EF-12-108-H: Hoist Only

• EF-12-108-SK: Standard Kit with PM High-Speed Single Engine Power Unit

• EF-12-108-ES: Extreme Series Kit with Twin 24VDC High-Flow Power Unit

🔧 Kit Options:

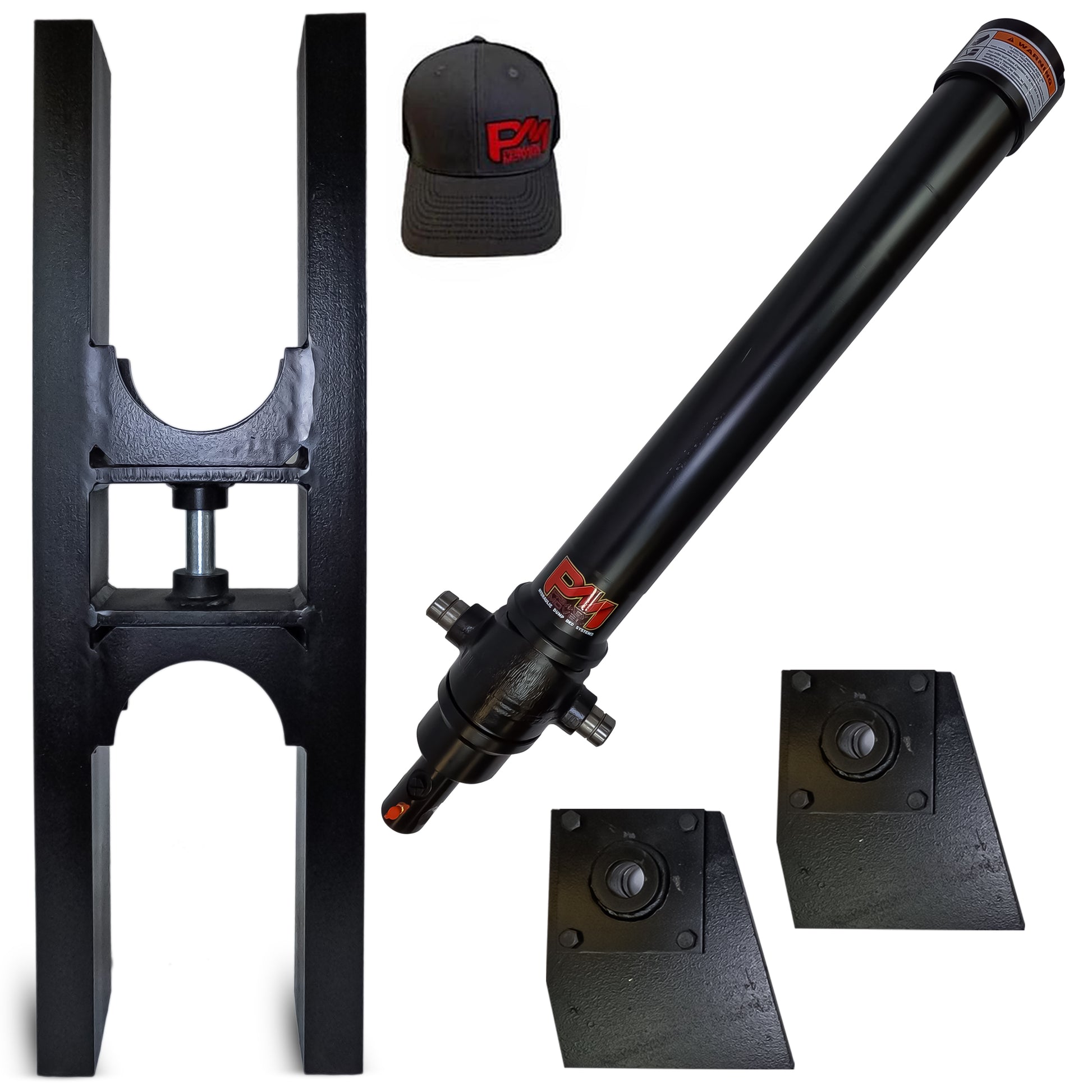

EF-12-108-H – Hoist Only Kit

Includes:

• 108" Stroke Telescoping Cylinder (Heavy-duty, high-capacity design)

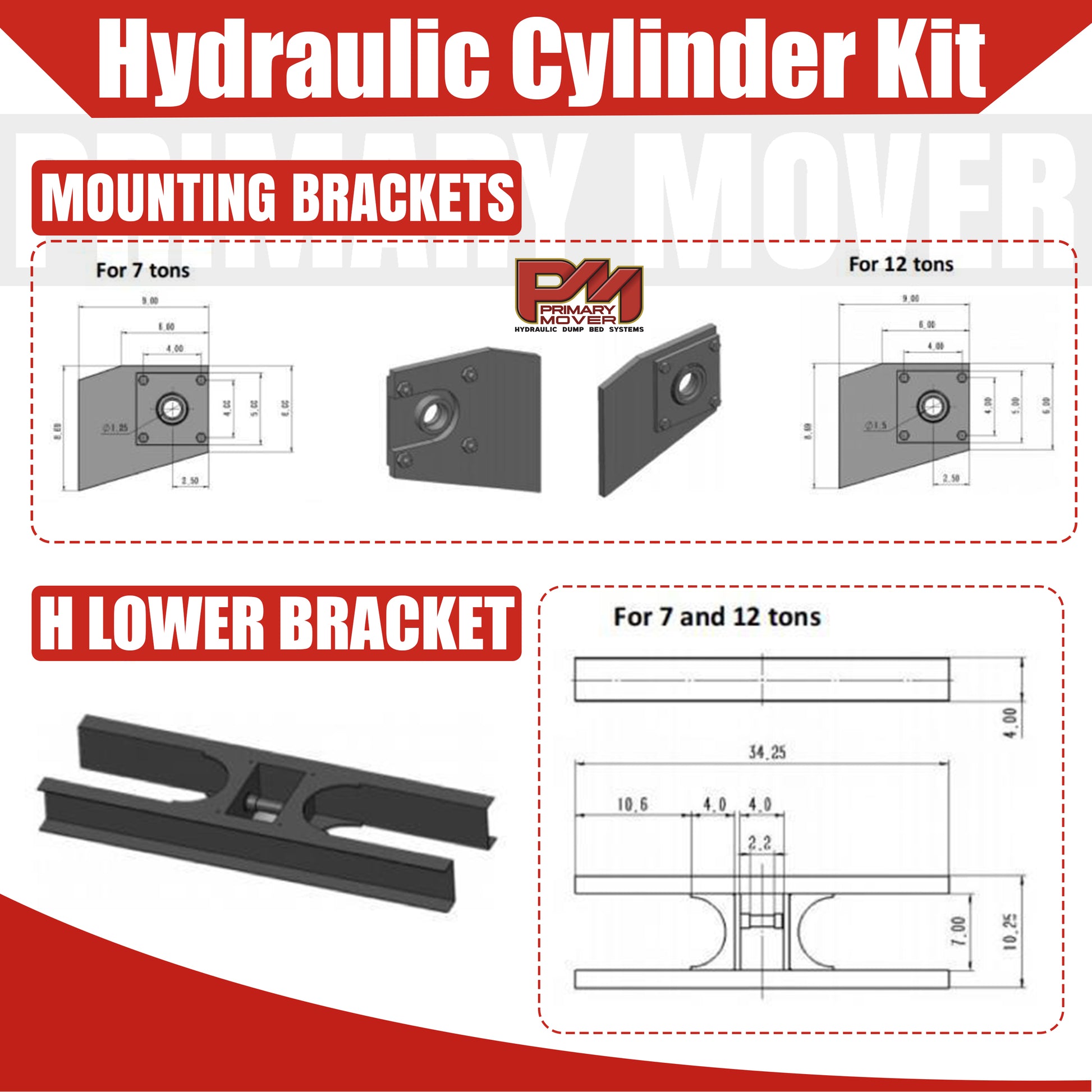

• H-Frame Lower Mounting Bracket

• Two Upper Mounting Brackets

Perfect for builders who already have their own power unit and hydraulic components.

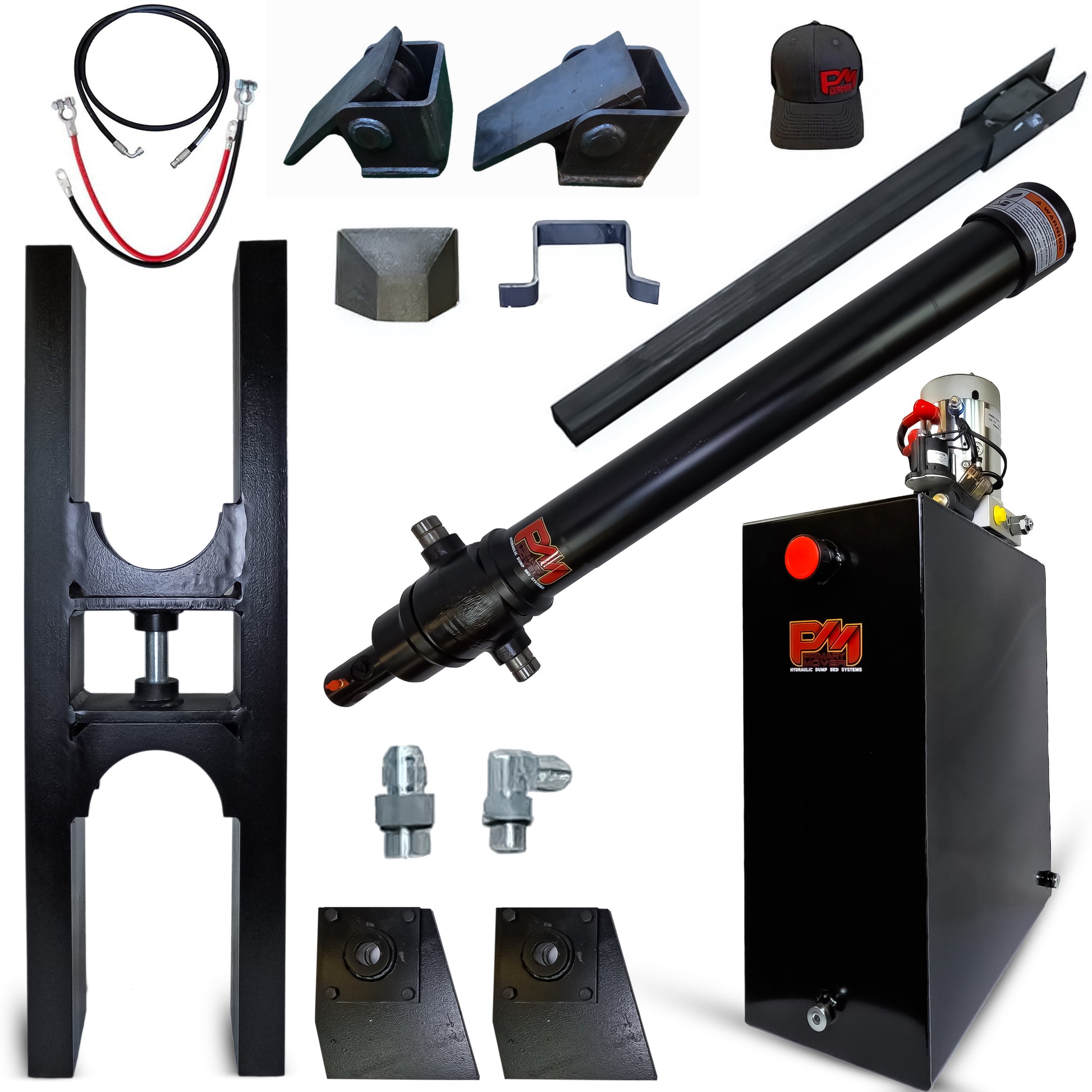

EF-12-108-SK – Standard Kit (Single Engine Power Unit)

Includes:

• All components from the Hoist Only Kit

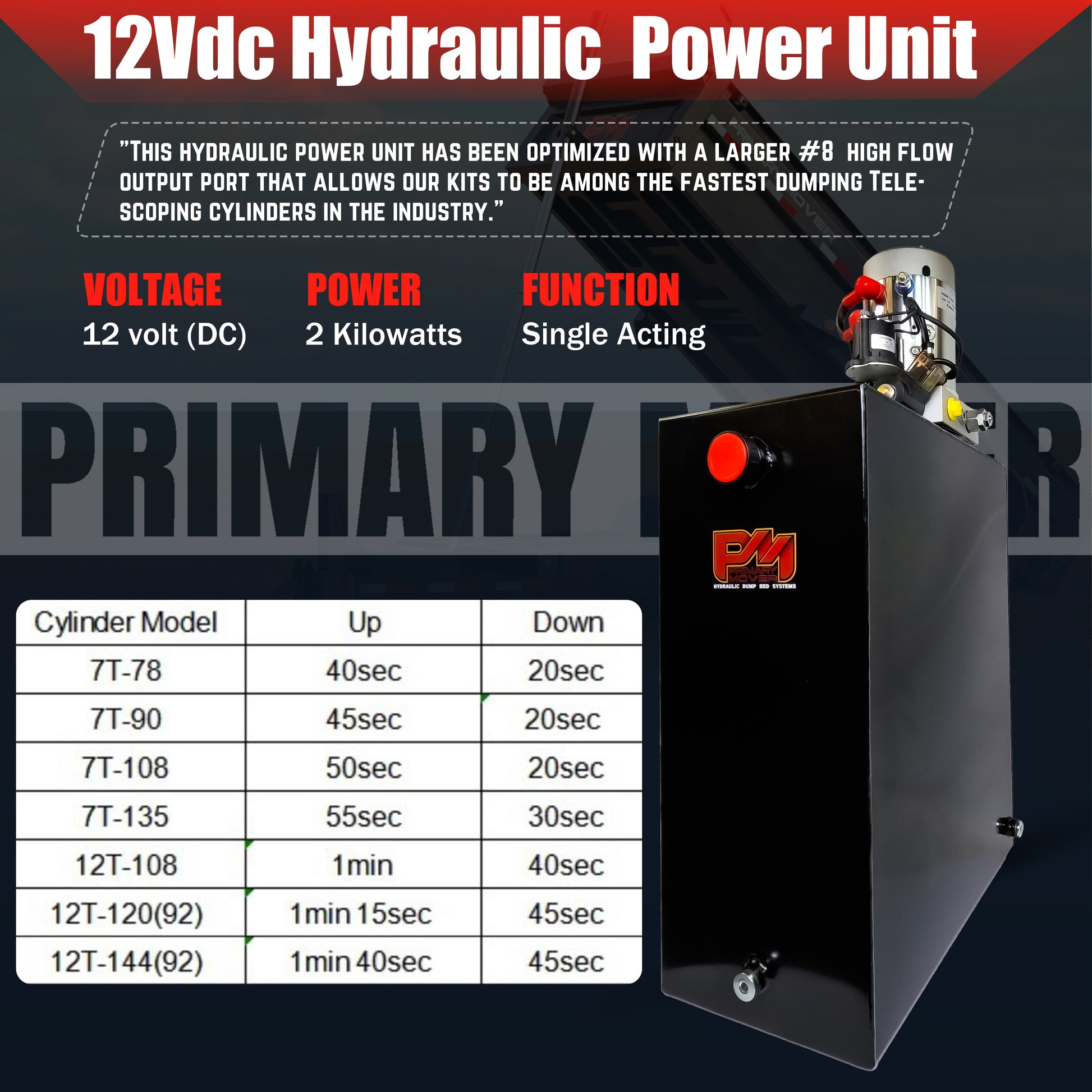

• Primary Mover 12VDC High-Speed Power Unit with #8 SAE ports

• Hydraulic Hose Assembly

• Hydraulic Fittings

• Bridon Load Control Valve

• Safety Arm & Cup

• Heavy-Duty Hinges

• Battery Cables

• Rubber Retaining Strap

⏱ Cycle Times (Standard Kit):

• Up Time: 1 minute 28 seconds

• Down Time: 55 seconds

⚙️ Upgraded with larger #8 BOS ports for faster fluid flow and reduced restriction — significantly outperforming common #6 setups.

EF-12-108-ES – Extreme Series Kit (Twin Engine 24VDC Power Unit)

Includes:

• All components from the Standard Kit

• Twin 24VDC High-Flow Power Unit (combines two PM high-speed motors in parallel)

• Designed for high-frequency commercial use with faster lift cycles

⏱ Cycle Times (Extreme Series):

• Up Time: 44 seconds (~50% faster)

• Down Time: 47 seconds (~15% faster)

⚡ Ideal for operators who need fast turnaround and maximum efficiency
🔋 Requires a 24VDC system (two 12V batteries in series)
🔽 Down speed enhanced by gravity return and optimized valve control

📄 Installation Resources:

• Download Quick Start Guide

• Download Full Installation Manual

🚚 Shipping Info:

• ✅ Free delivery to commercial addresses with loading dock or forklift

• 📦 Kits ship on a secured pallet via freight

• ⚠️ Residential, rural, or farm deliveries may incur additional charges — contact us for a quote
