Telescopic Dump Trailer Cylinder Kit - 20 Ton Capacity - 90" Stroke - Fits 8-12' Dump Body | EF-07-90

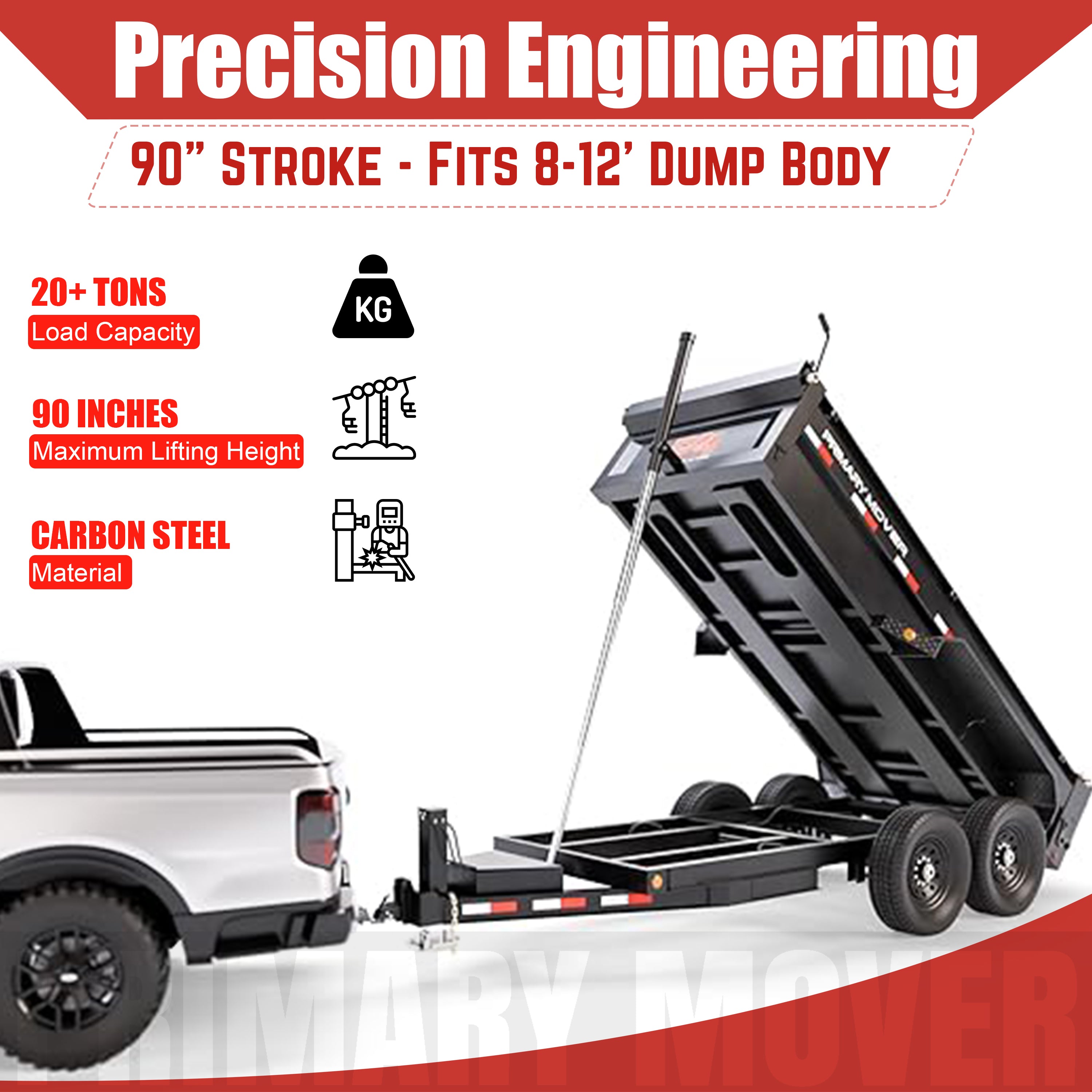

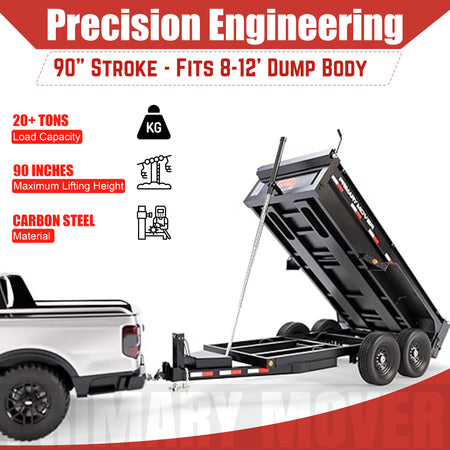

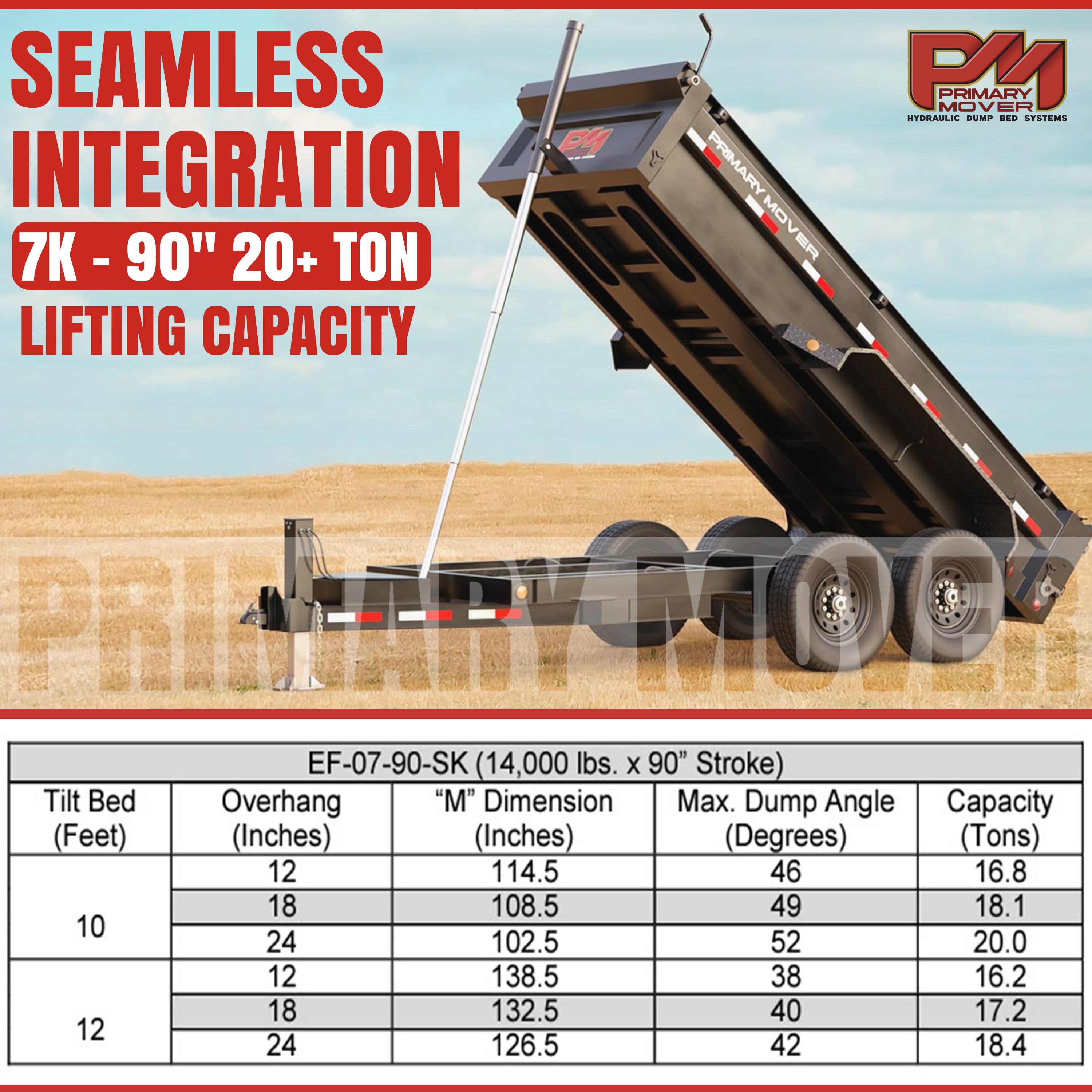

EF-07-090 | Telescopic Dump Trailer / Truck Kit – 90" Stroke | Up to 20 Ton Capacity | Fits 8–12' Dump Beds

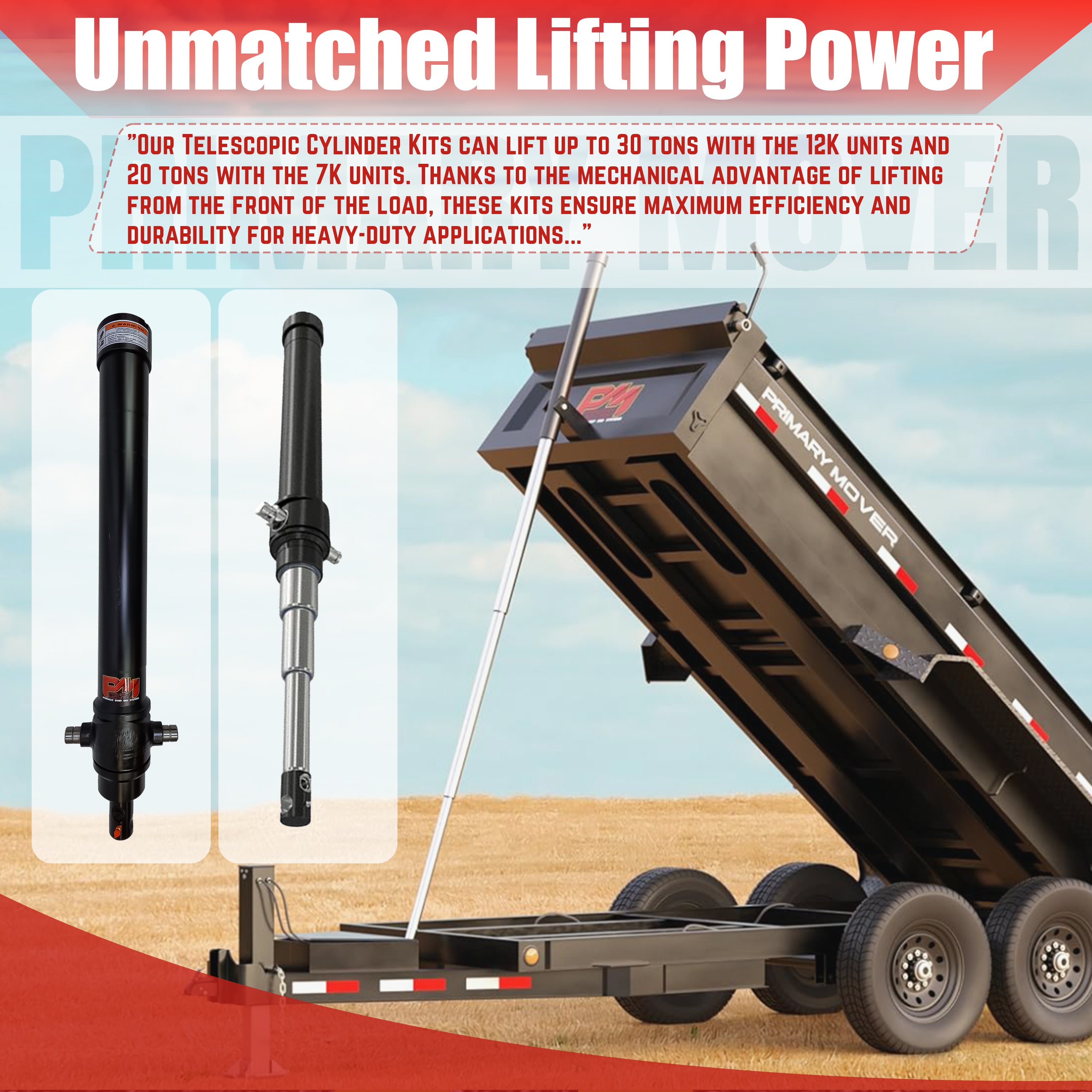

Part of our Extreme Force Series, the EF-07-090 is a compact but powerful telescopic hoist built for 8–12 ft. dump trailers or truck beds. With a 90" stroke and rugged multi-stage design, this system is perfect for medium-duty applications where performance and reliability matter.

This model is available in three configurations:

• EF-07-090-H: Hoist Only

• EF-07-090-SK: Standard Kit with PM High-Speed Single Engine Power Unit

• EF-07-090-ES: Extreme Series Kit with Twin 24VDC Power Unit

🔧 Kit Options:

EF-07-090-H – Hoist Only Kit

Includes:

• 90" Stroke Telescoping Cylinder

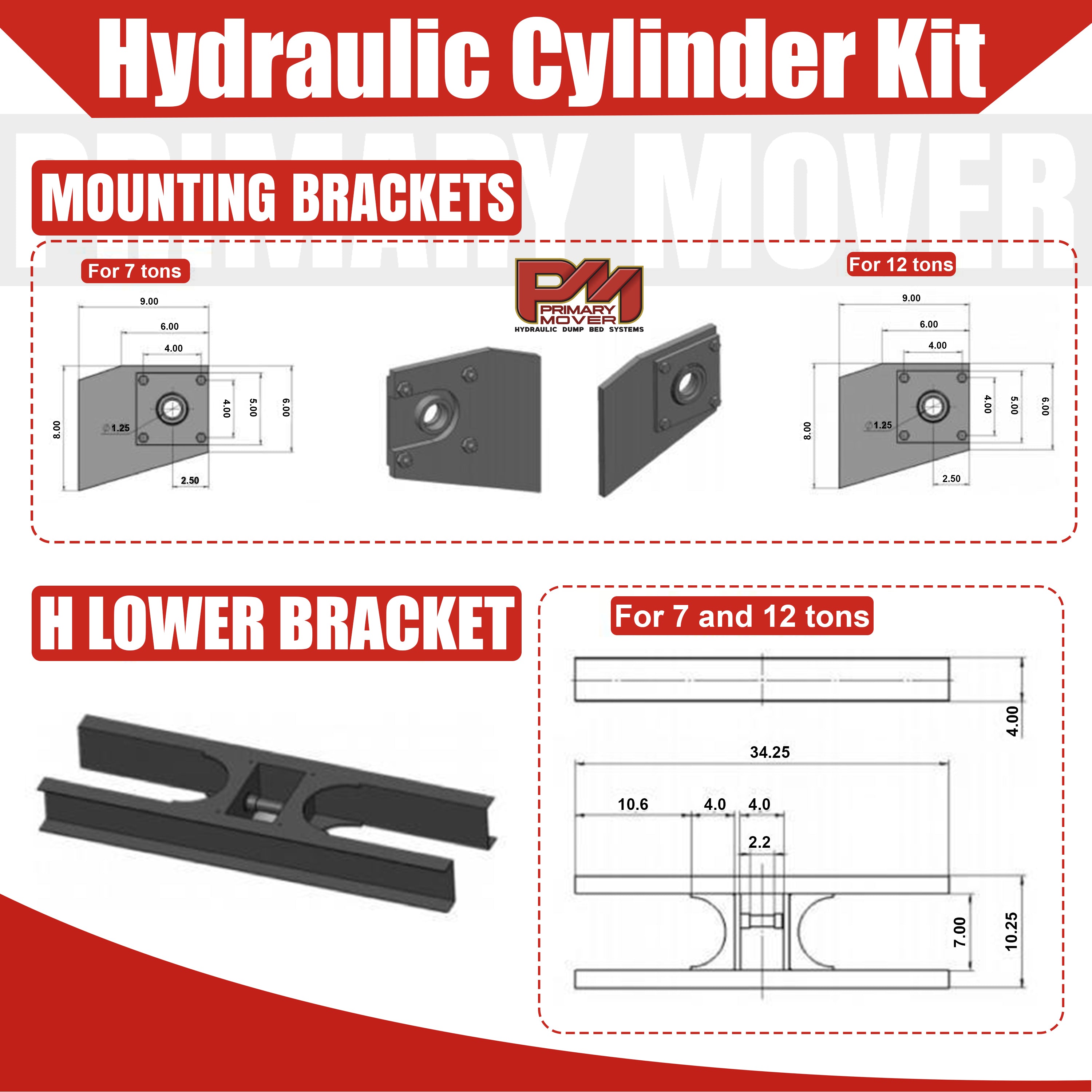

• H-Frame Lower Mounting Bracket

• Two Upper Mounting Brackets

No hydraulic components included. Ideal for builds where you already have a power unit or plan to source your own.

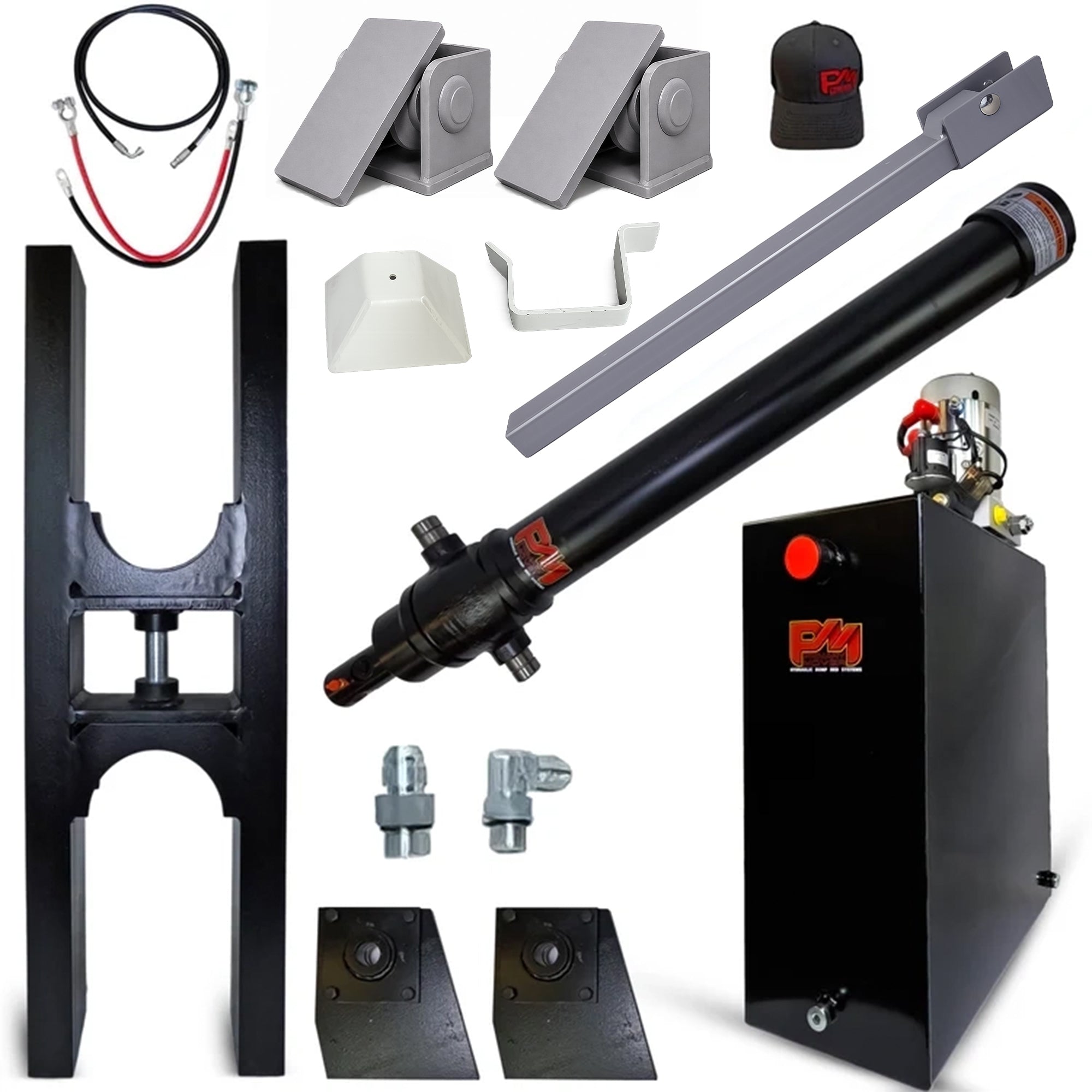

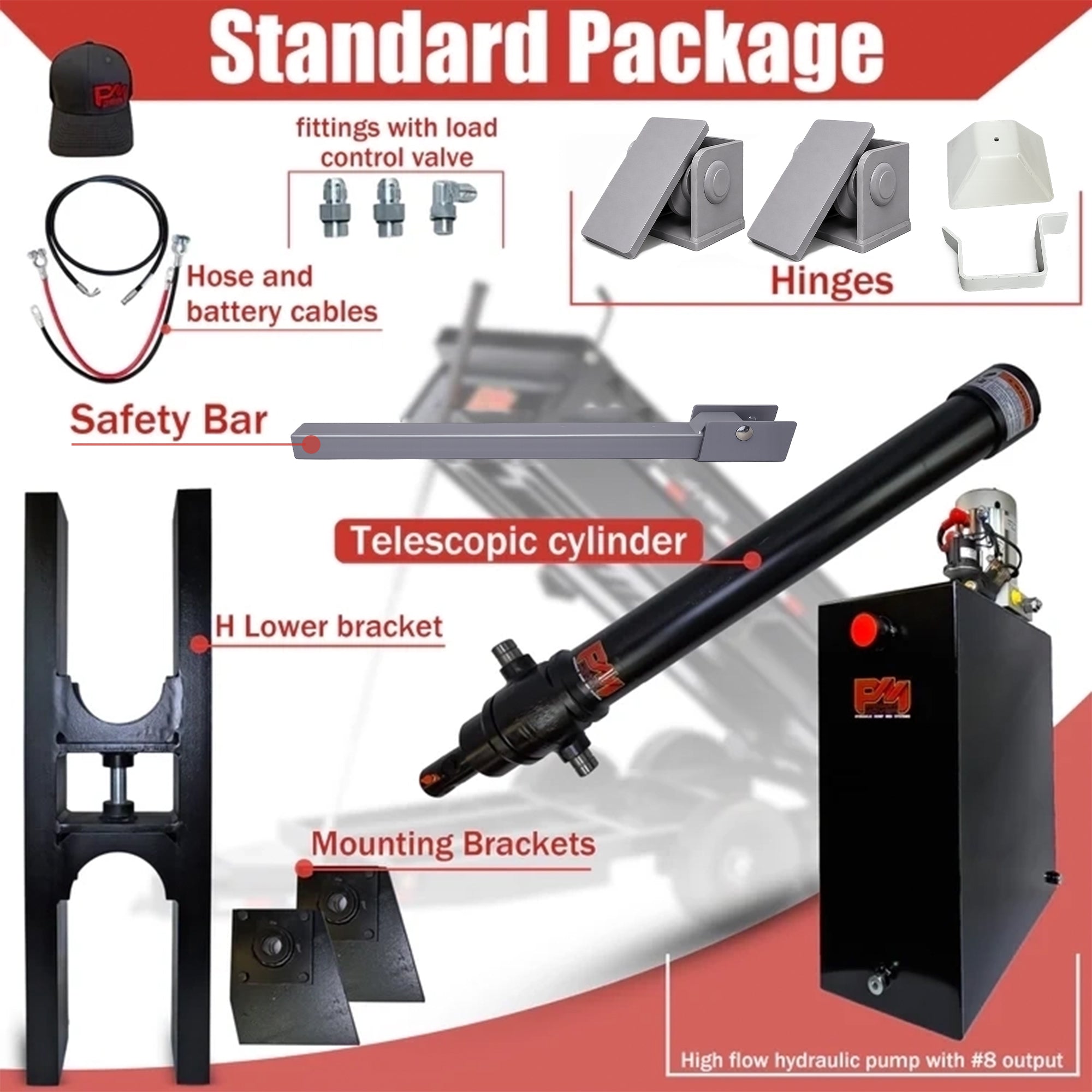

EF-07-090-SK – Standard Kit (Single Engine Power Unit)

Includes:

• All items from the Hoist Only Kit

• Primary Mover 12VDC High-Speed Power Unit with #8 SAE ports

• Hydraulic Hose Assembly

• Hydraulic Fittings

• Bridon Load Control Valve

• Safety Arm & Cup

• Heavy-Duty Hinges

• Battery Cables

• Rubber Retaining Strap

⚙️ Designed with performance in mind — larger #8 SAE ports move more fluid, allowing faster lift cycles than standard #6 port systems.

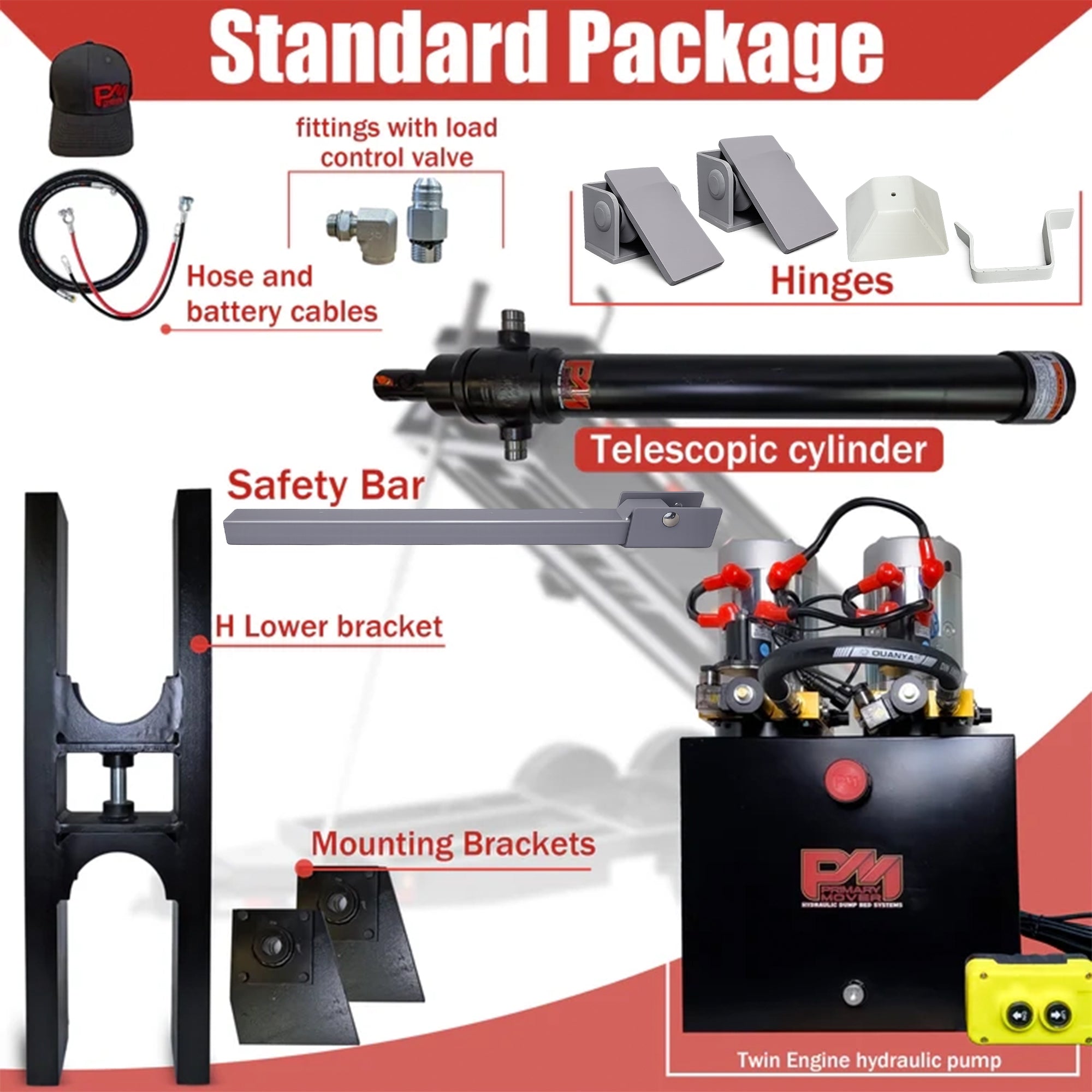

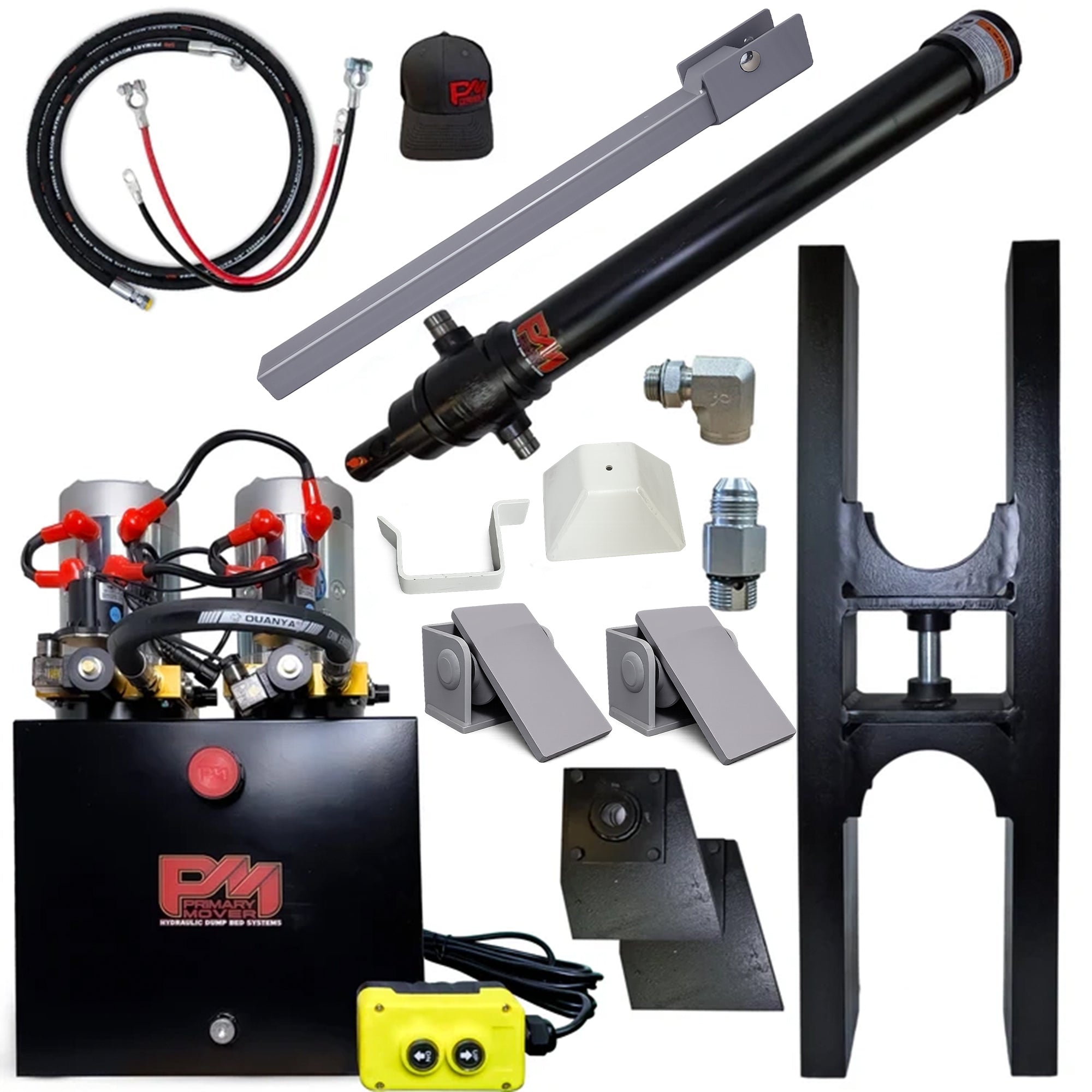

EF-07-090-ES – Extreme Series Kit (Twin Engine 24VDC Power Unit)

Includes:

• All items from the Standard Kit

• Dual-Motor High-Flow Power Unit (24VDC) using two of PM’s high-speed pumps in parallel

• Offers up to 50% faster lift speed

• Maintains #8 SAE fittings for maximum oil volume throughput

⚡ Ideal for commercial users or those who want top-tier dump speed and cycle performance
🔋 Requires a 24VDC power system (typically two 12V batteries in series)
🔽 Down speed is approximately 15% faster due to optimized return flow

📄 Resources:

• Download Quick Start Guide

• Download Full Installation Manual

🚚 Shipping Information:

• ✅ Free delivery to commercial locations with a dock or forklift

• 📦 Kits ship on a pallet via freight

• ⚠️ Residential, rural, or farm deliveries may require an additional fee — contact us for more info
