Primary Mover

10 Ton Hydraulic Scissor Hoist Kit - Fits 12-16' Dump Body PF-520

In stock - 77 items available
SKU: PF-520-K
(1)
$ 1,790.00
Model
“Alternative Options Available”

We offer the following methods of delivery:

  • Same day Freight Shipping when ordered Mon-Fri before 12pm central time. (excluding holidays)
  • Pickup from our Mandeville, Louisiana warehouse
  • In some cases, free shipping - please contact us: sales@primarymover.com or call 985-888-6554

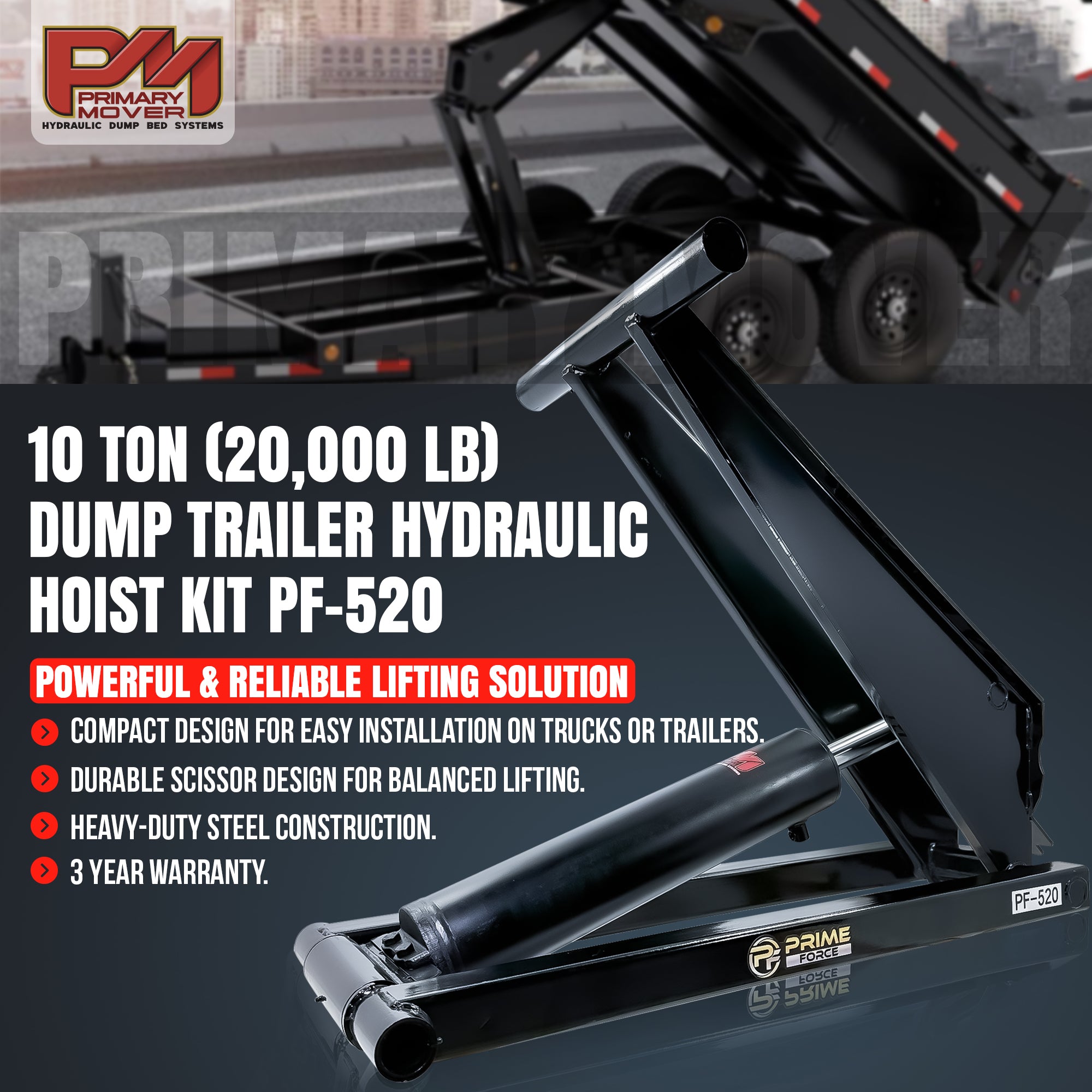

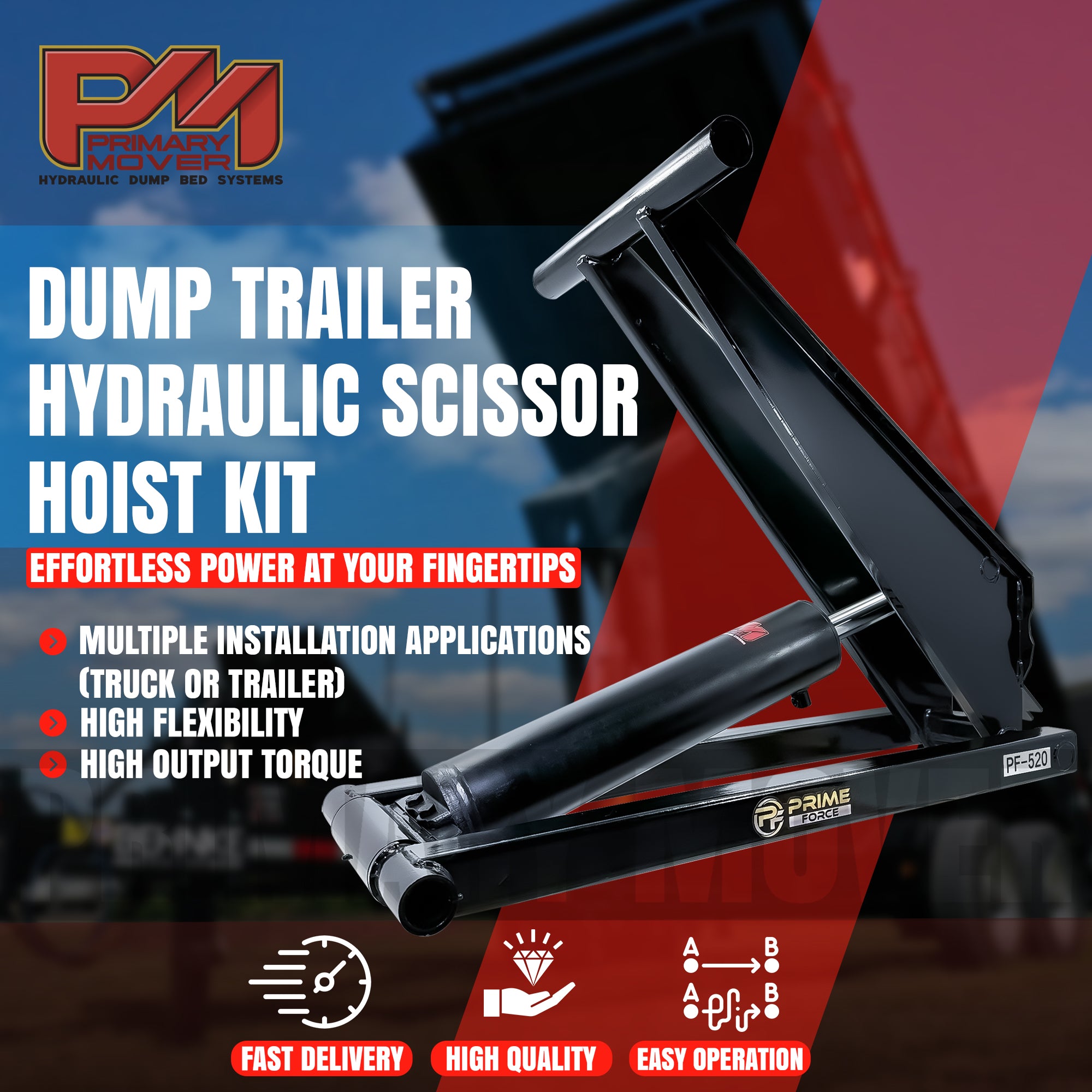

PF-520 Scissor Hoist Dump Trailer Kit

The PF-520 scissor hoist rounds out the top of our 500 series with unmatched durability and a longer stroke for extended lift reach. Built to handle up to 10 tons (20,000 lbs), this hoist features a 5.5" diameter cylinder and a 20" stroke. The longer stroke increases lift height and mounting flexibility, while the 7.5mm thick sidewall ensures superior pressure resistance—well above the industry standard of 6.3mm. This hoist is ideal for 12 to 16-foot dump trailers or heavy-duty utility trucks.

Key Features

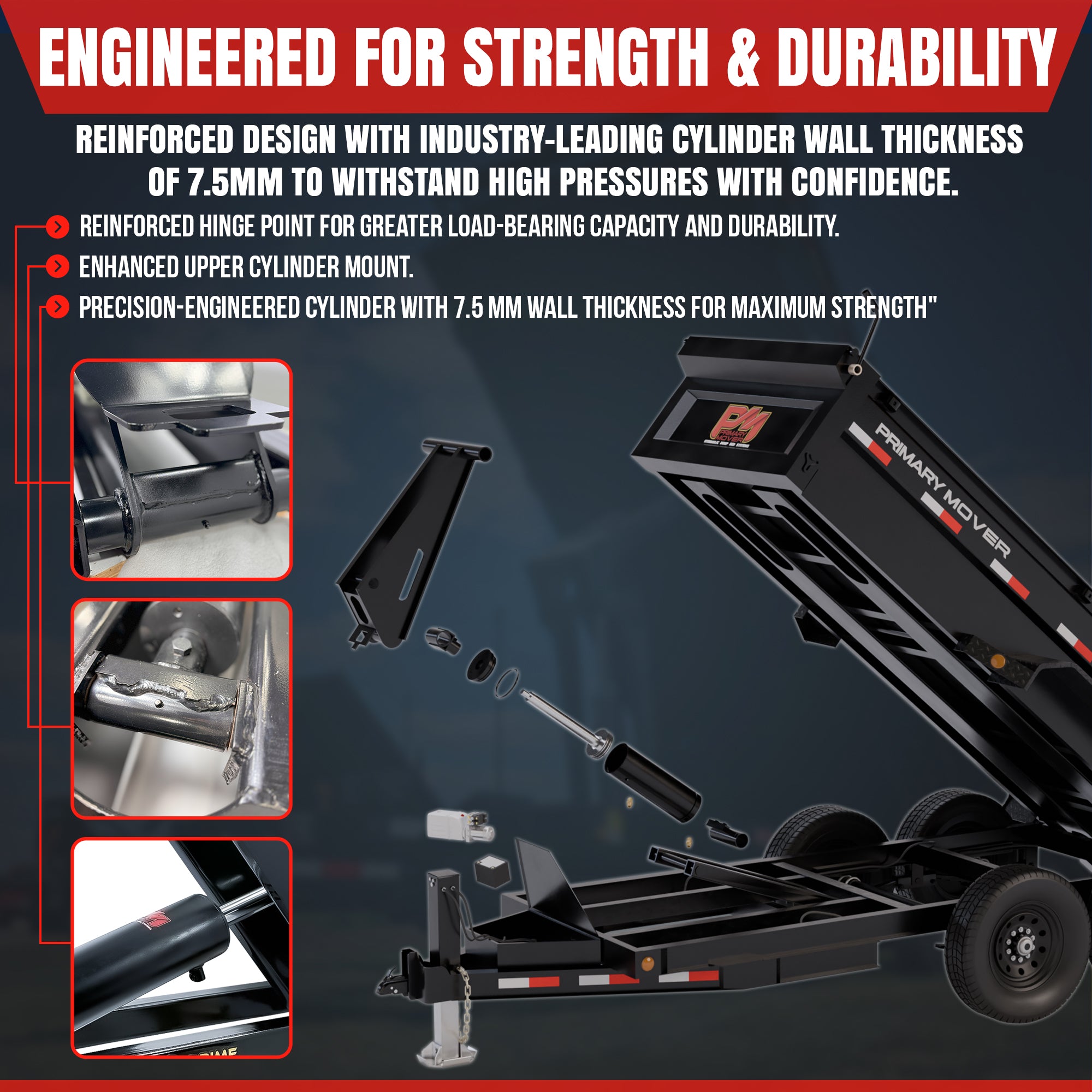

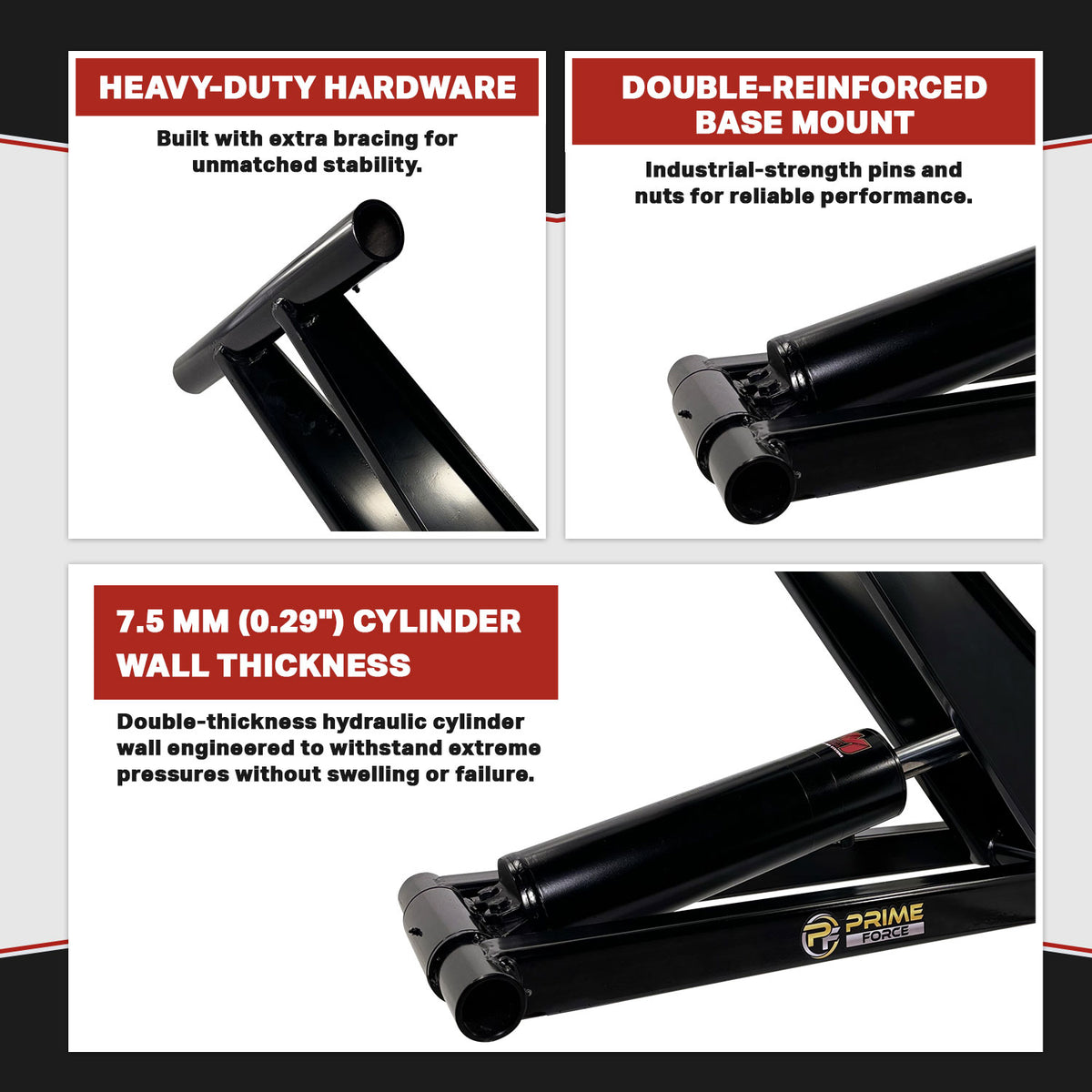

Long-Stroke 5.5" Cylinder:
7.5mm wall thickness boosts durability and pressure handling in demanding applications.

Massive 10-Ton Capacity:
Designed for heavier loads and longer beds.

Extended 20" Stroke:
Allows for more versatile mounting locations and greater dump angles.

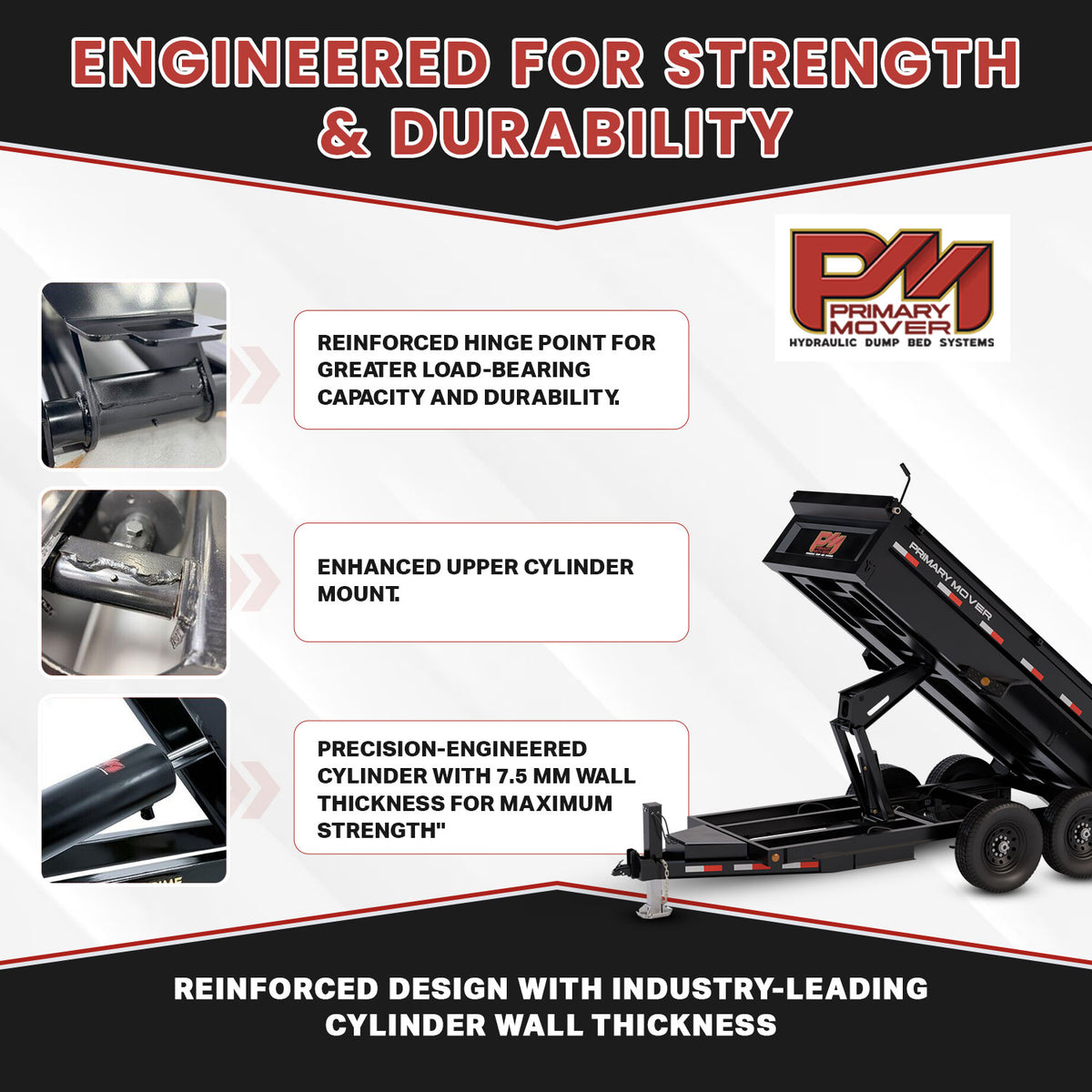

Engineered to Last:
Reinforced components deliver consistent performance over time.

3-Year Manufacturer Warranty:
Full support included.

Kit Options

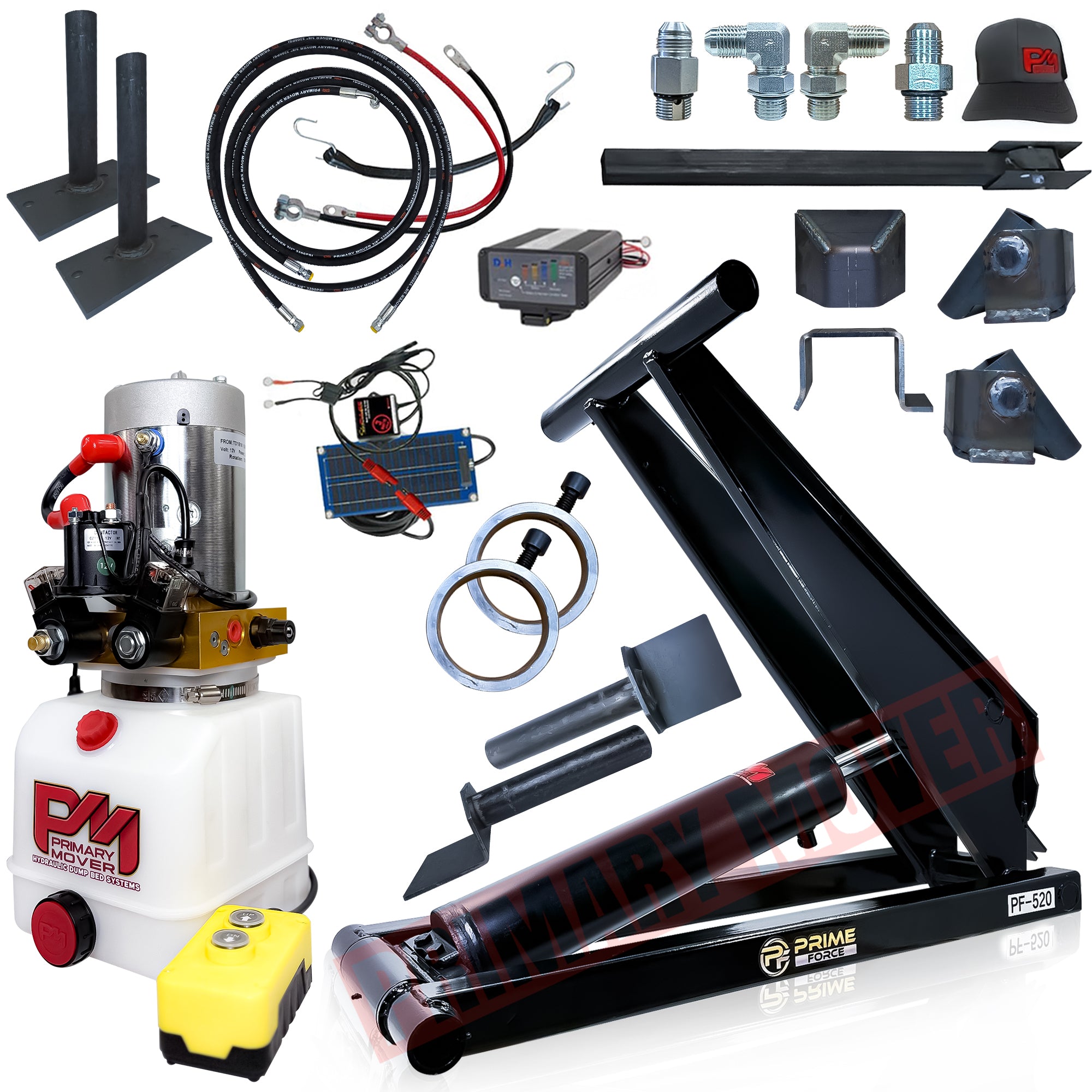

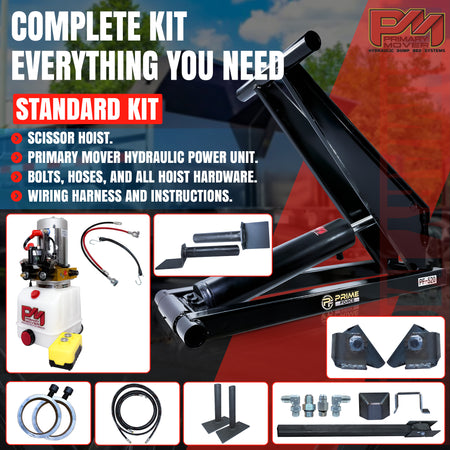

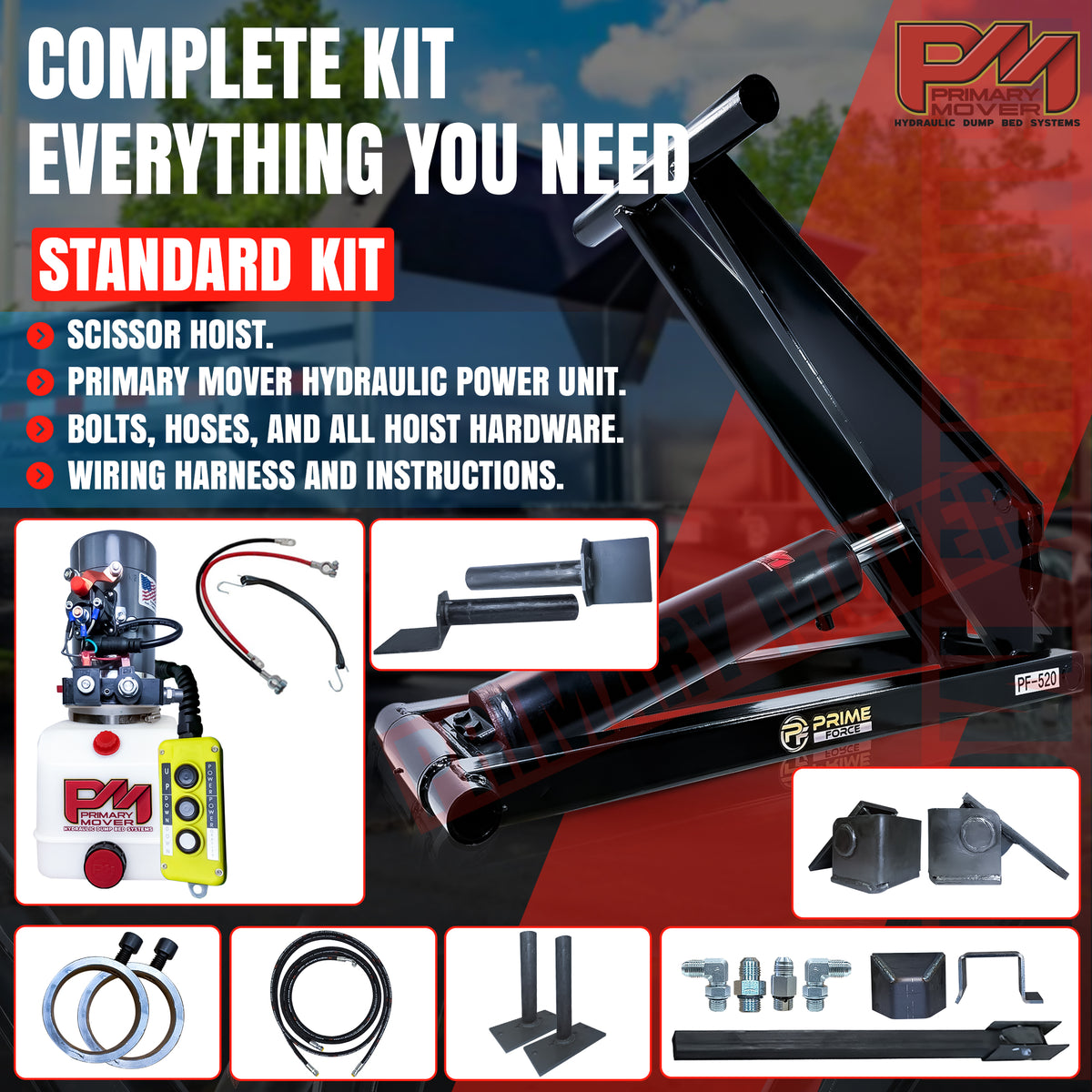

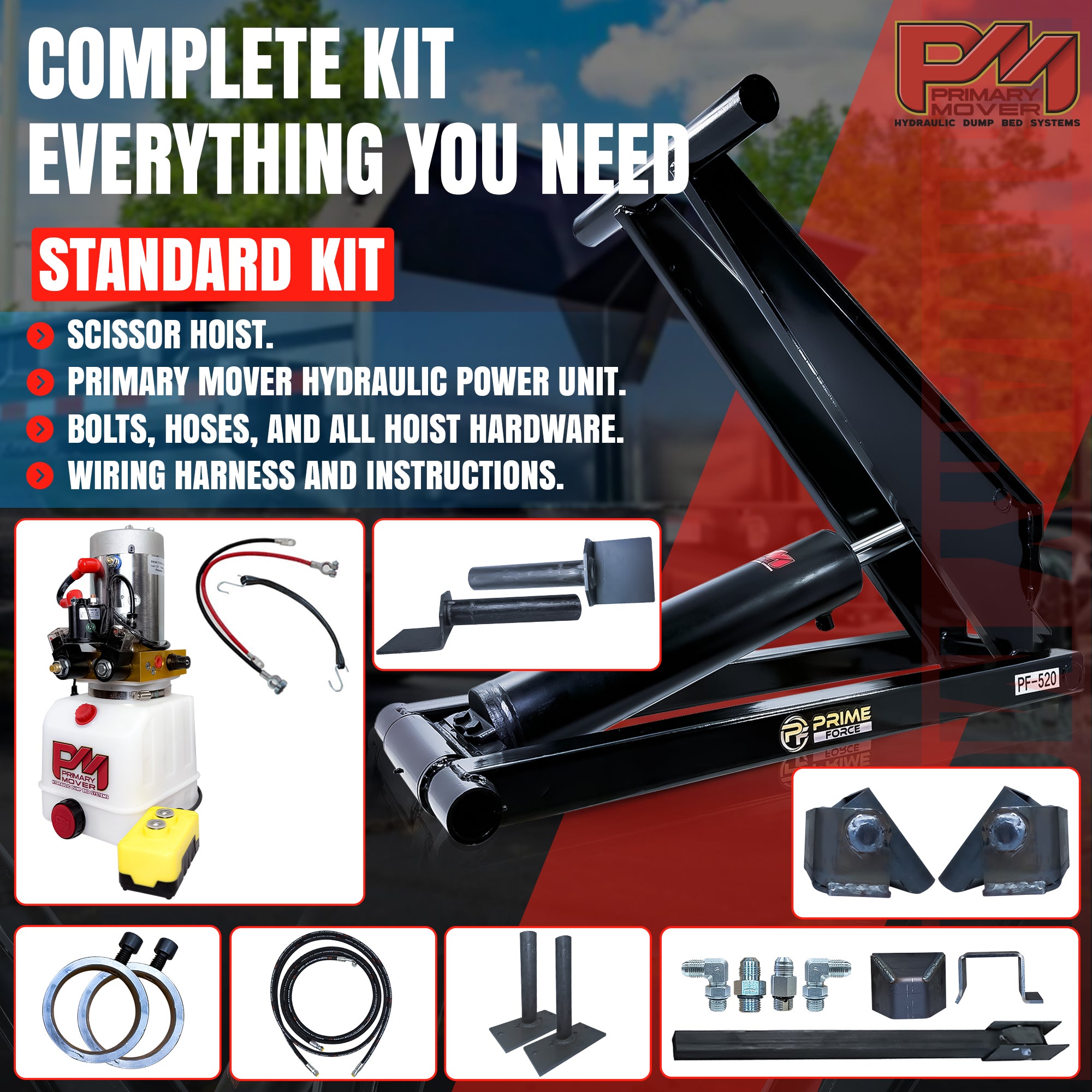

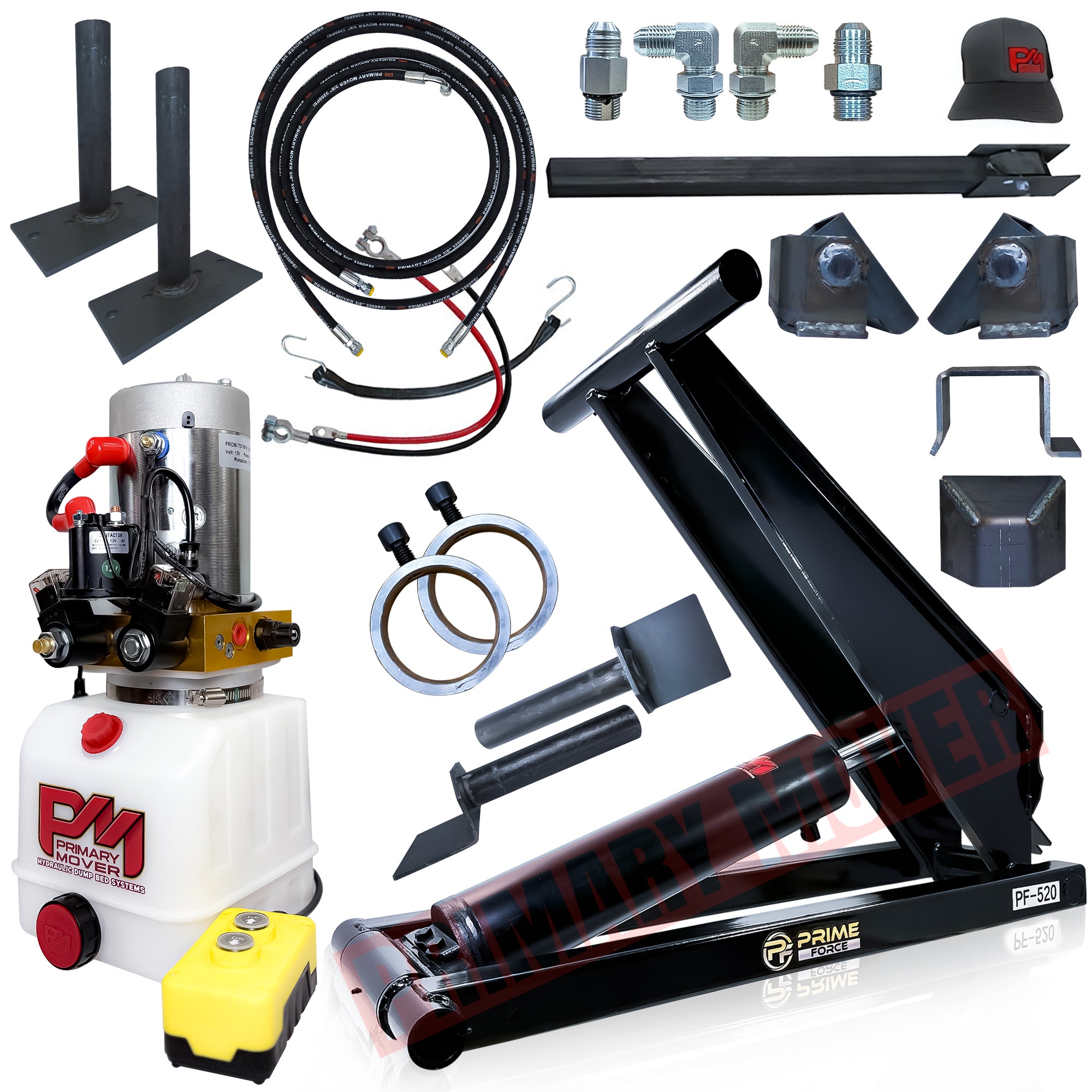

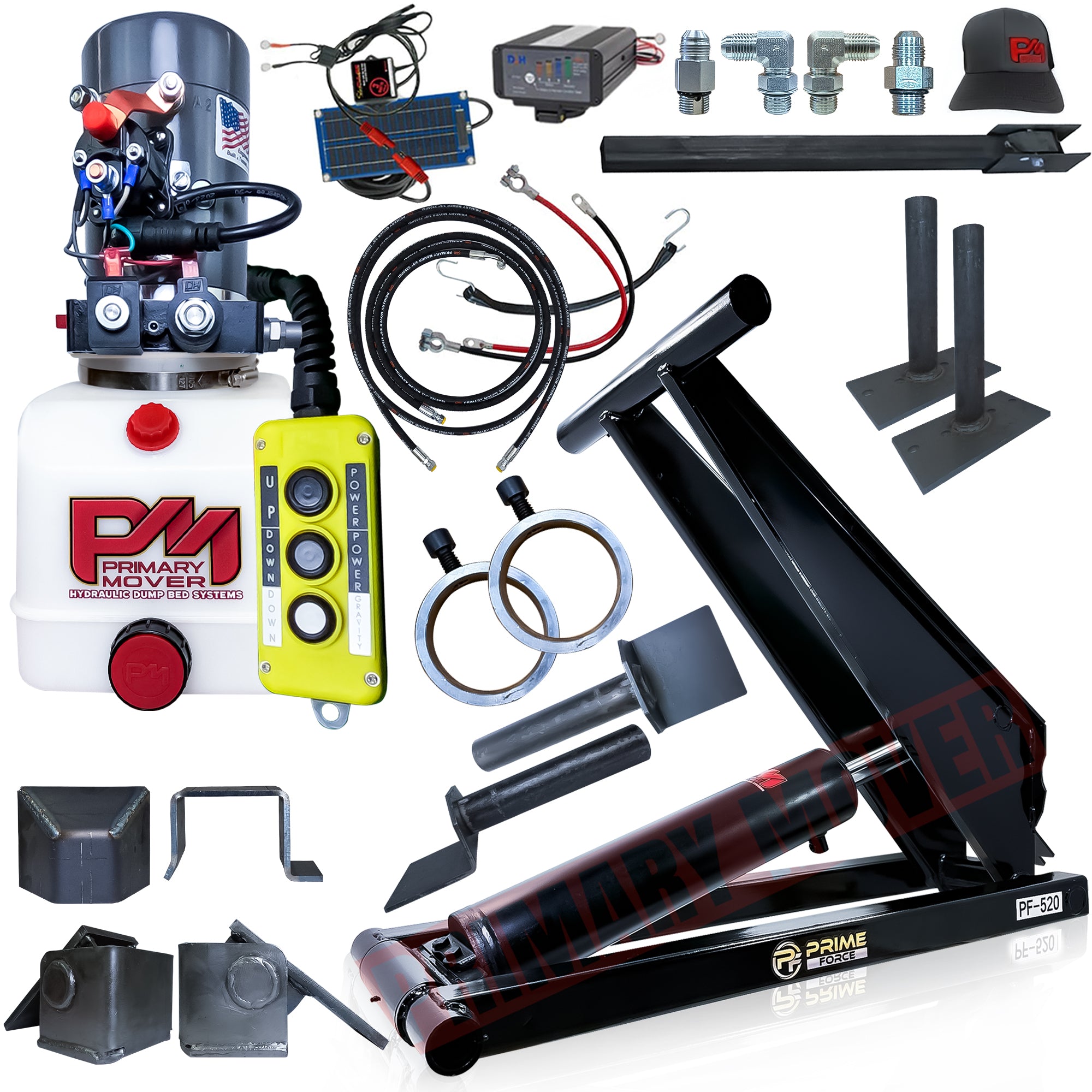

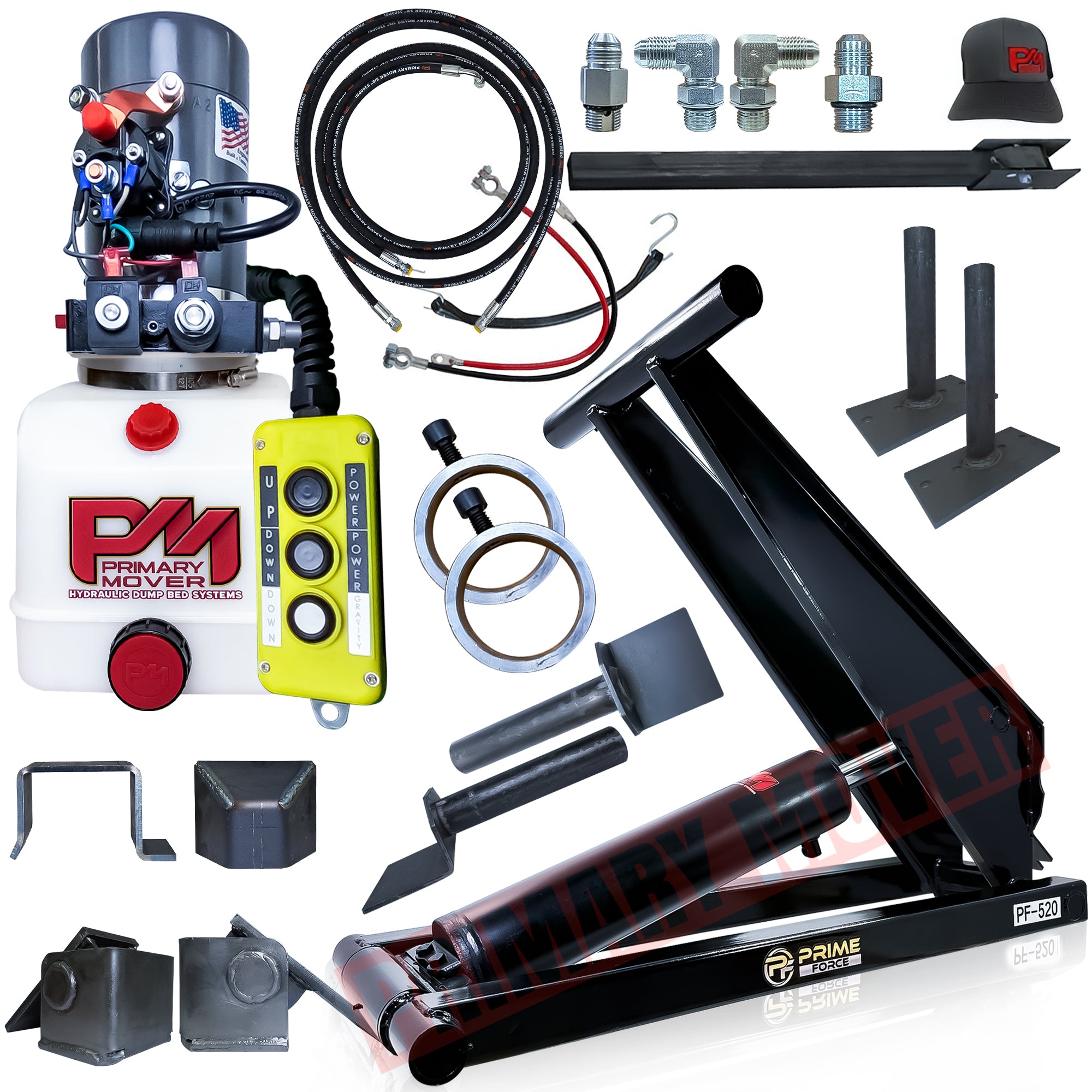

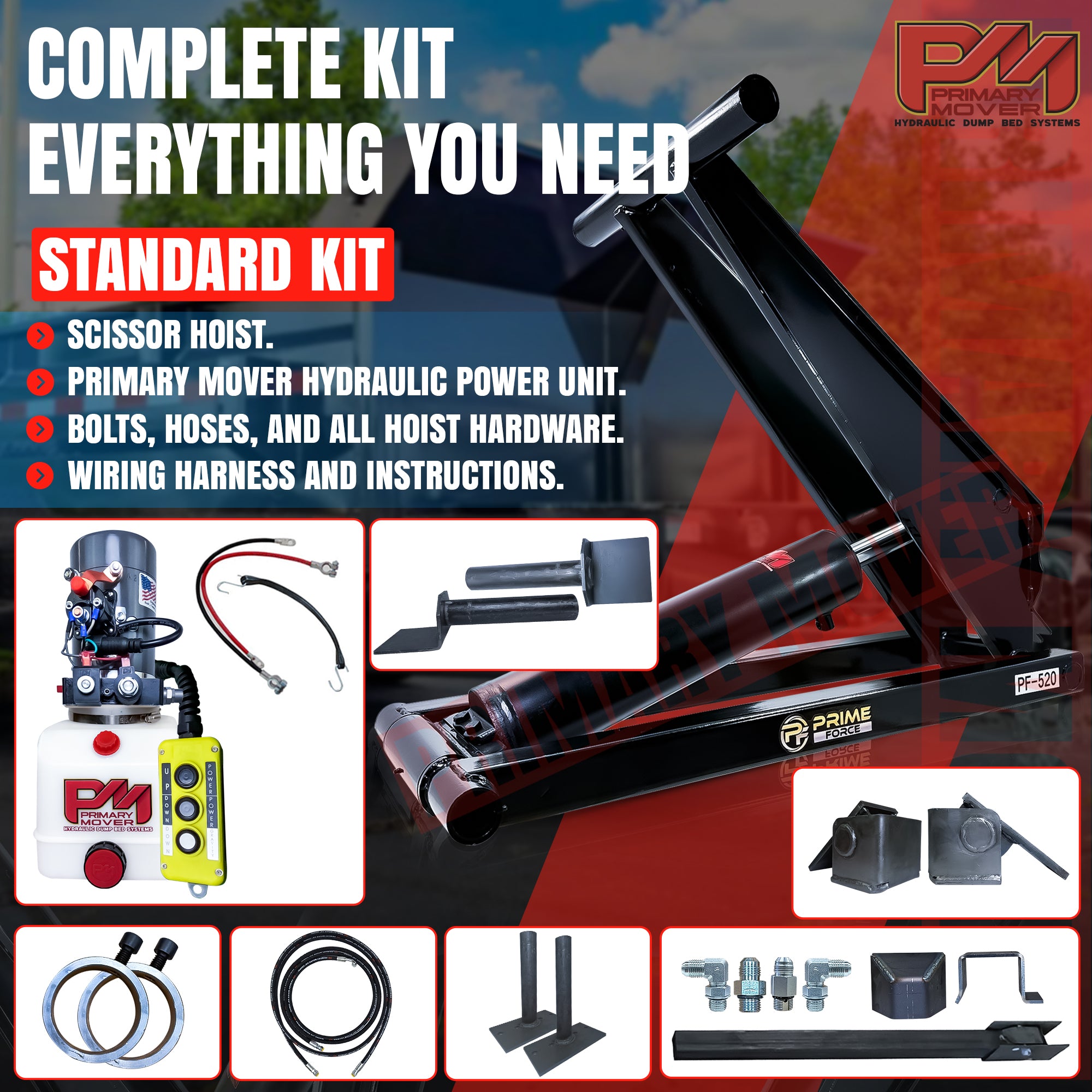

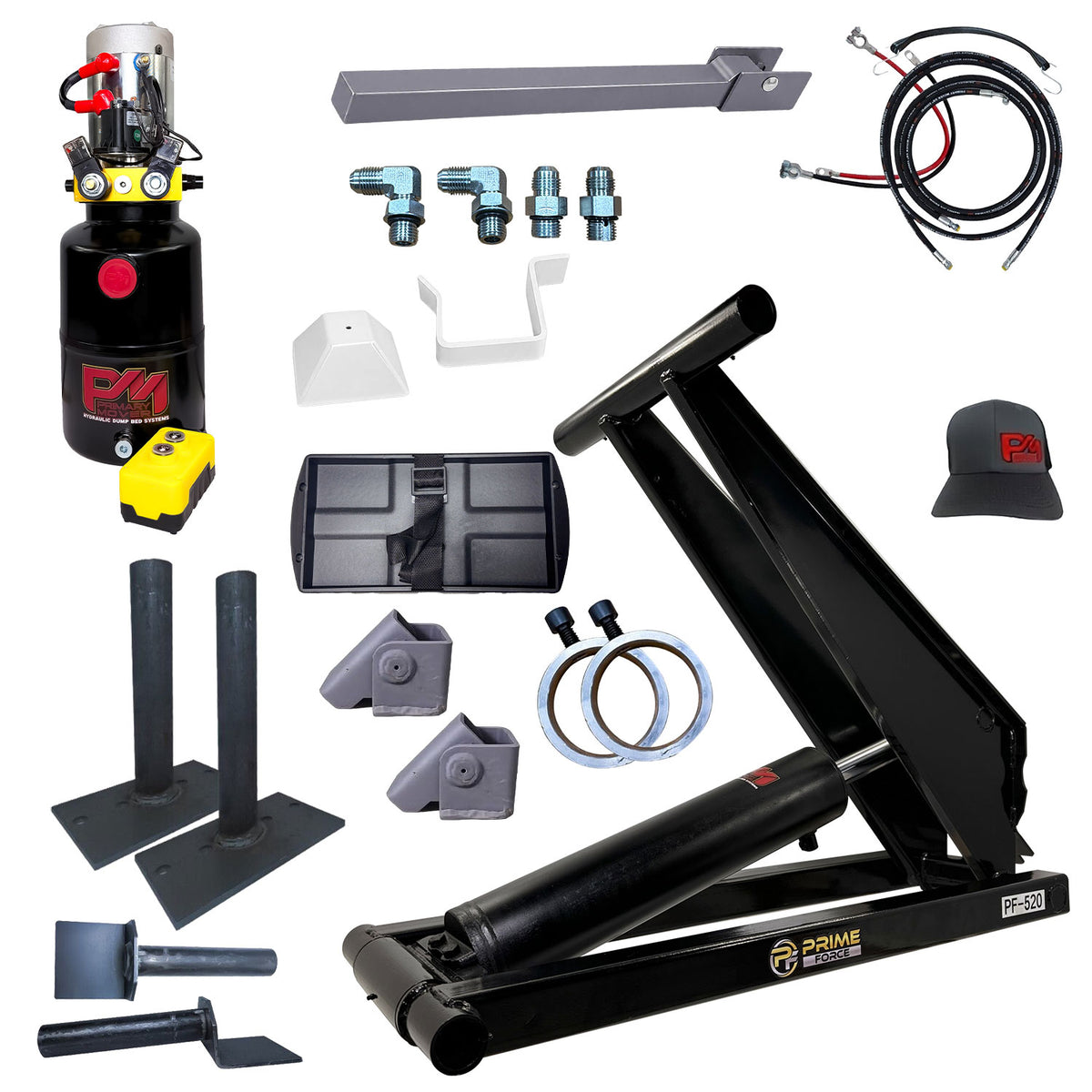

Standard Kit Includes:

  • 5.5" Cylinder

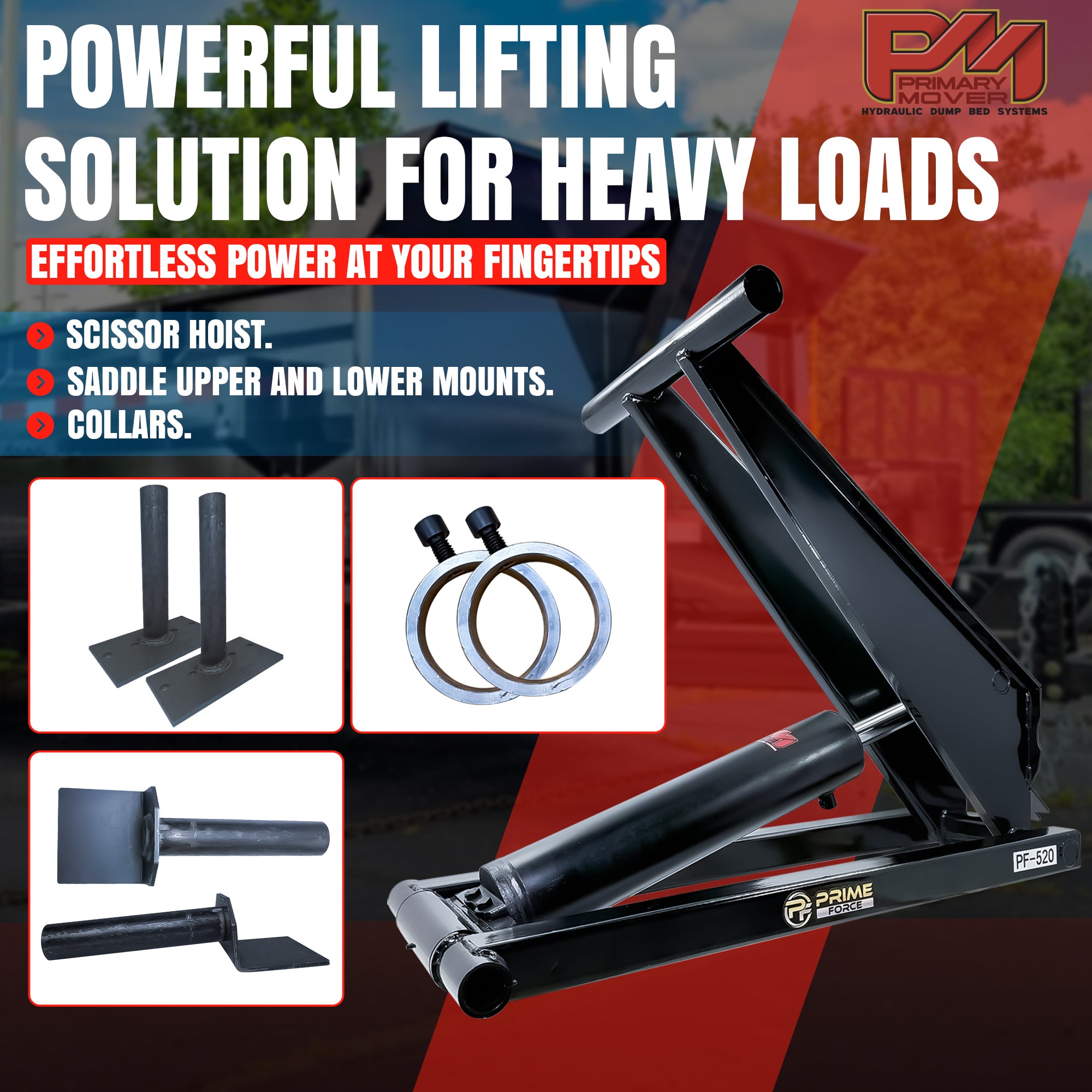

  • Mounting Brackets

  • SD Hinges

  • Hydraulic Hose & Connectors

  • Safety Bar Kit

  • Bridon Load Control Valve

  • Primary Mover Double Acting Hydraulic Pump with 2-Button Remote

  • 15' Pendant Remote (Power-Up/Power-Down)

  • Safety Labels & Manual

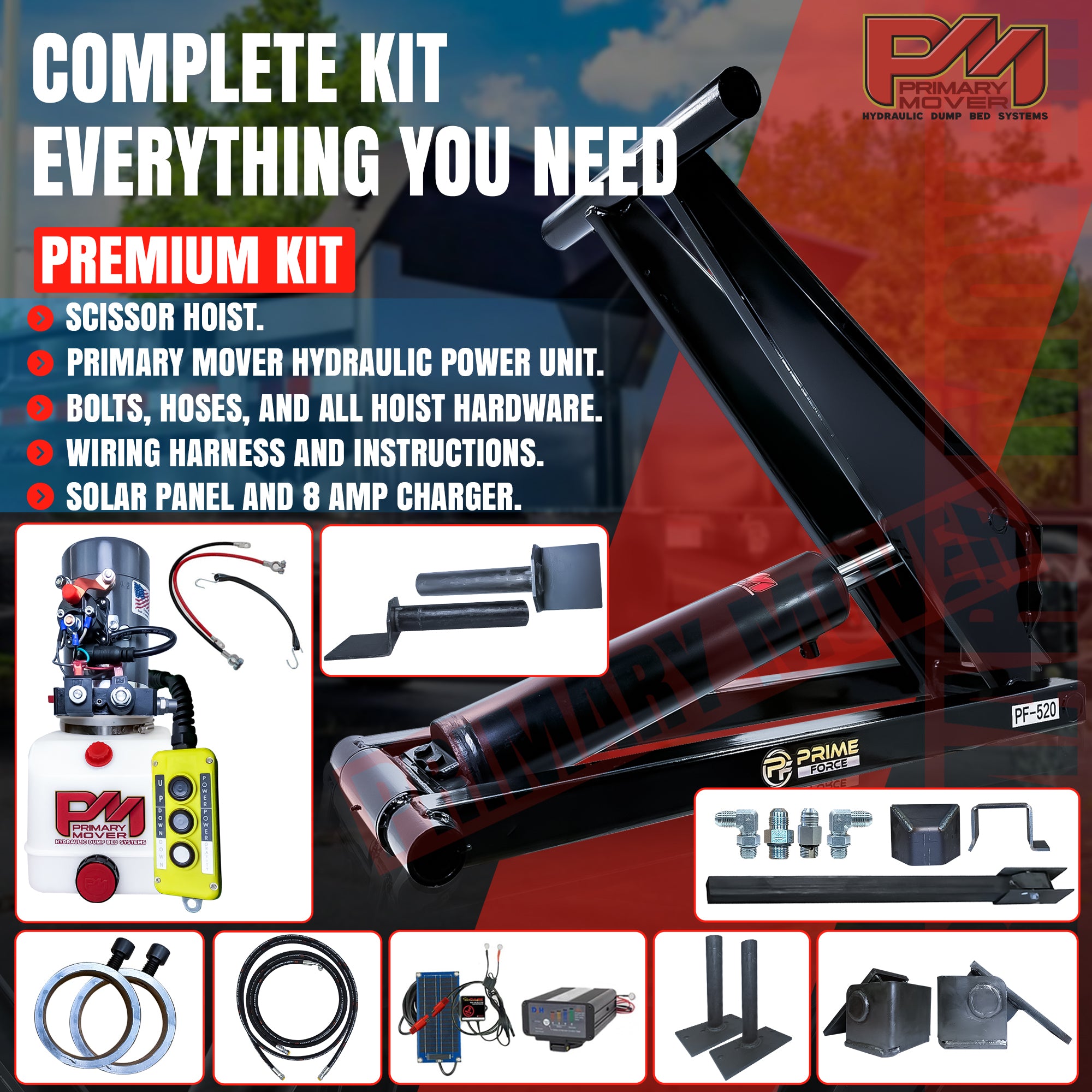

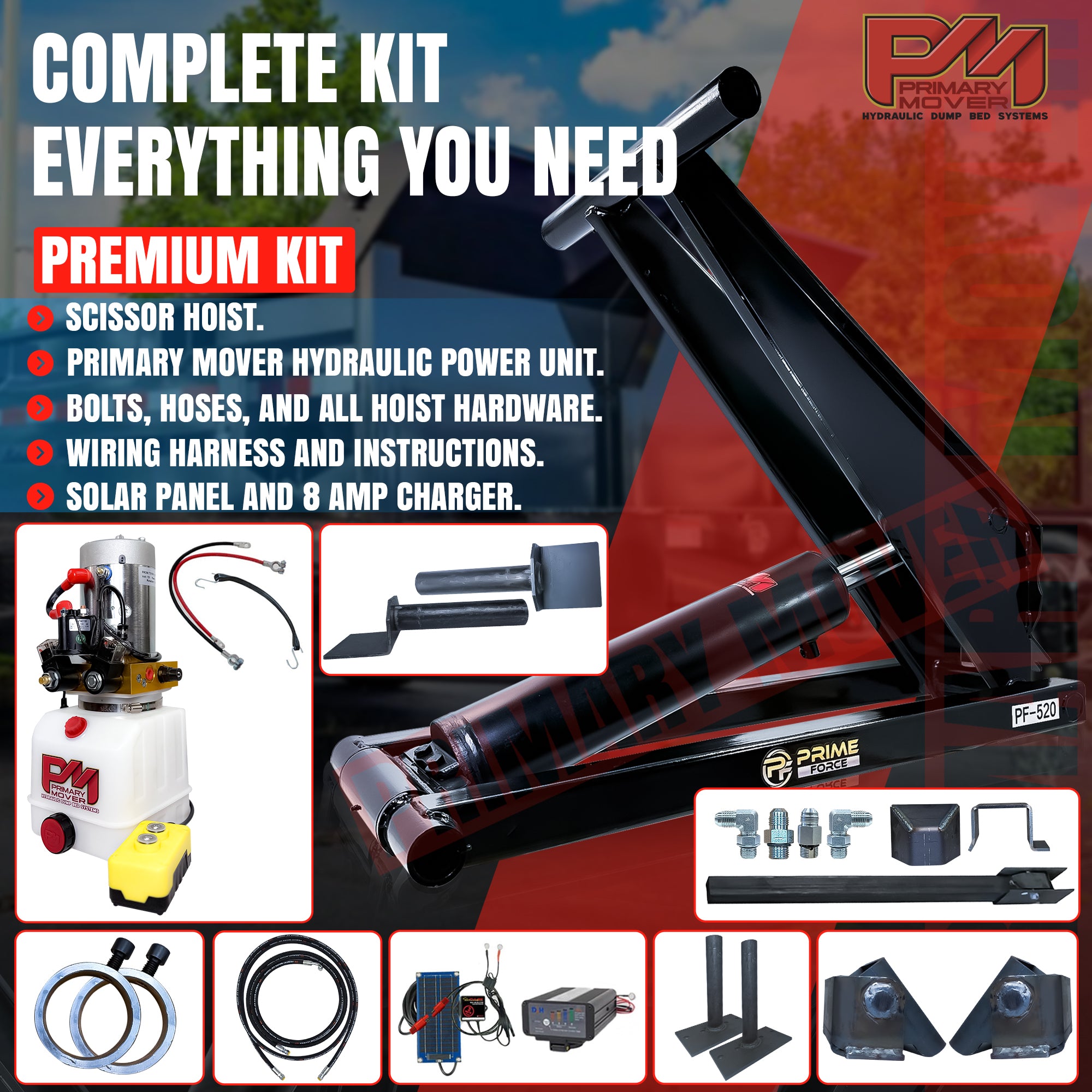

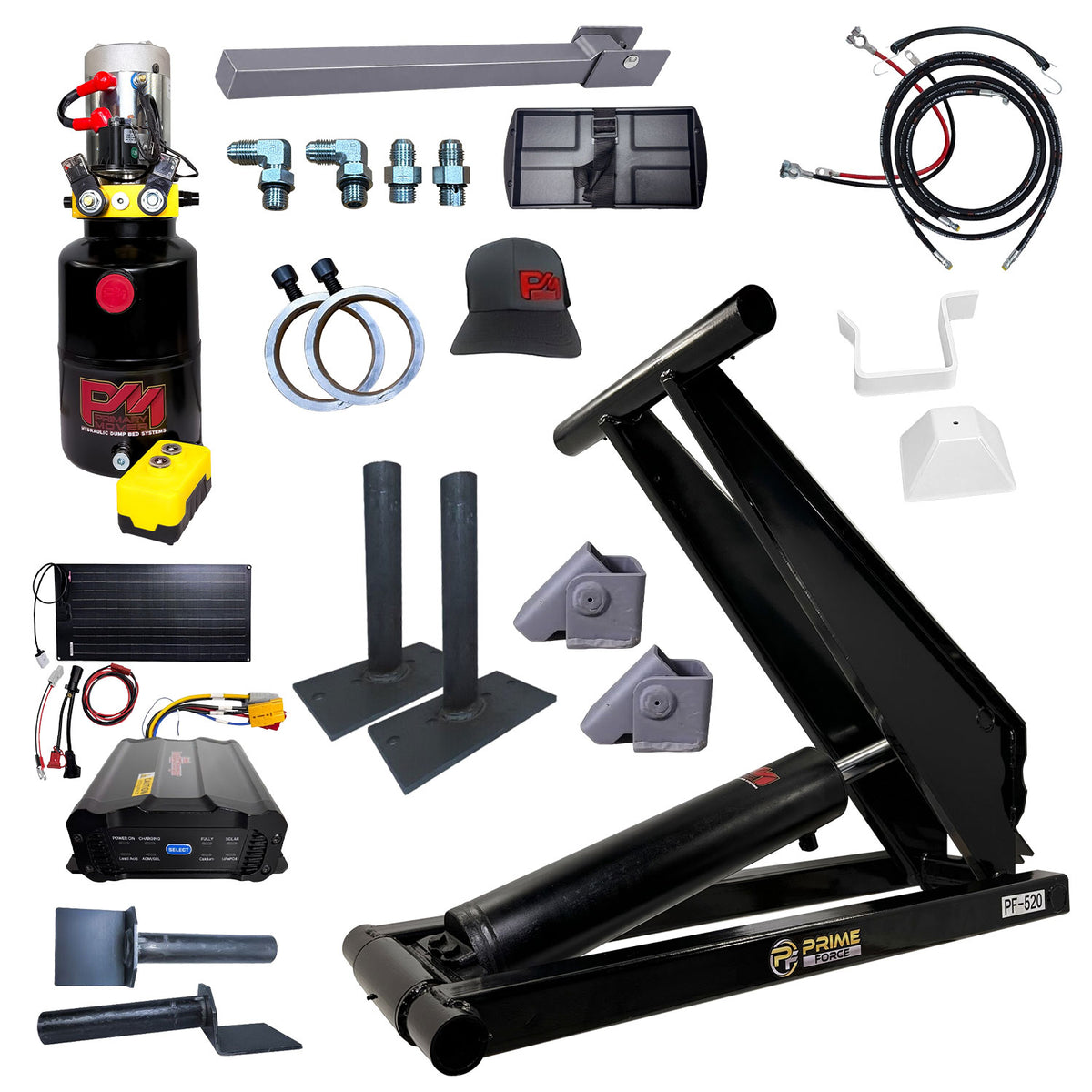

Premium Kit Adds:

  • SolarPulse 3-Watt Solar Charger

  • 8 Amp Panel Mount AC Charger

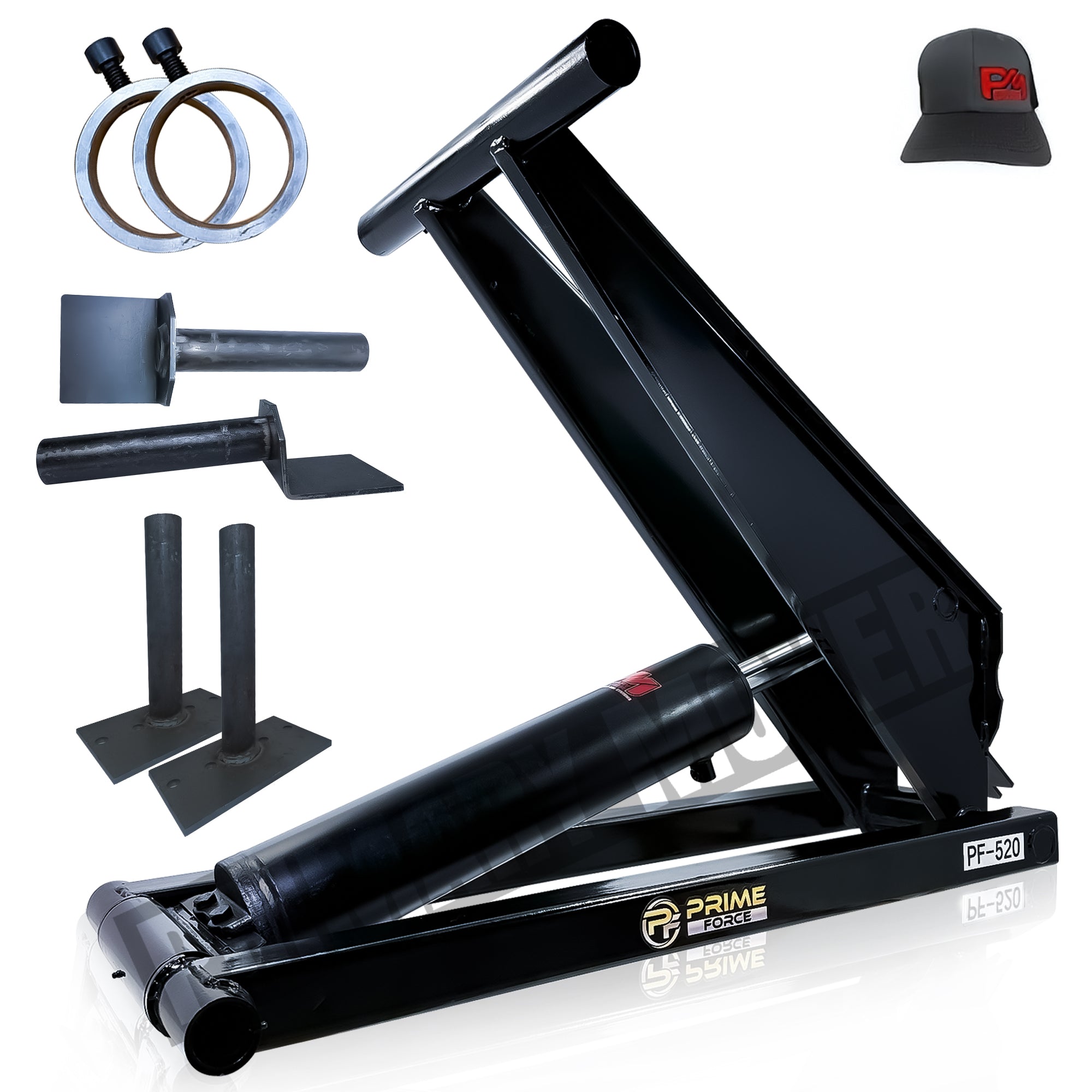

Hoist Only Kit:
Includes the hoist hardware—pump and electronics not included.

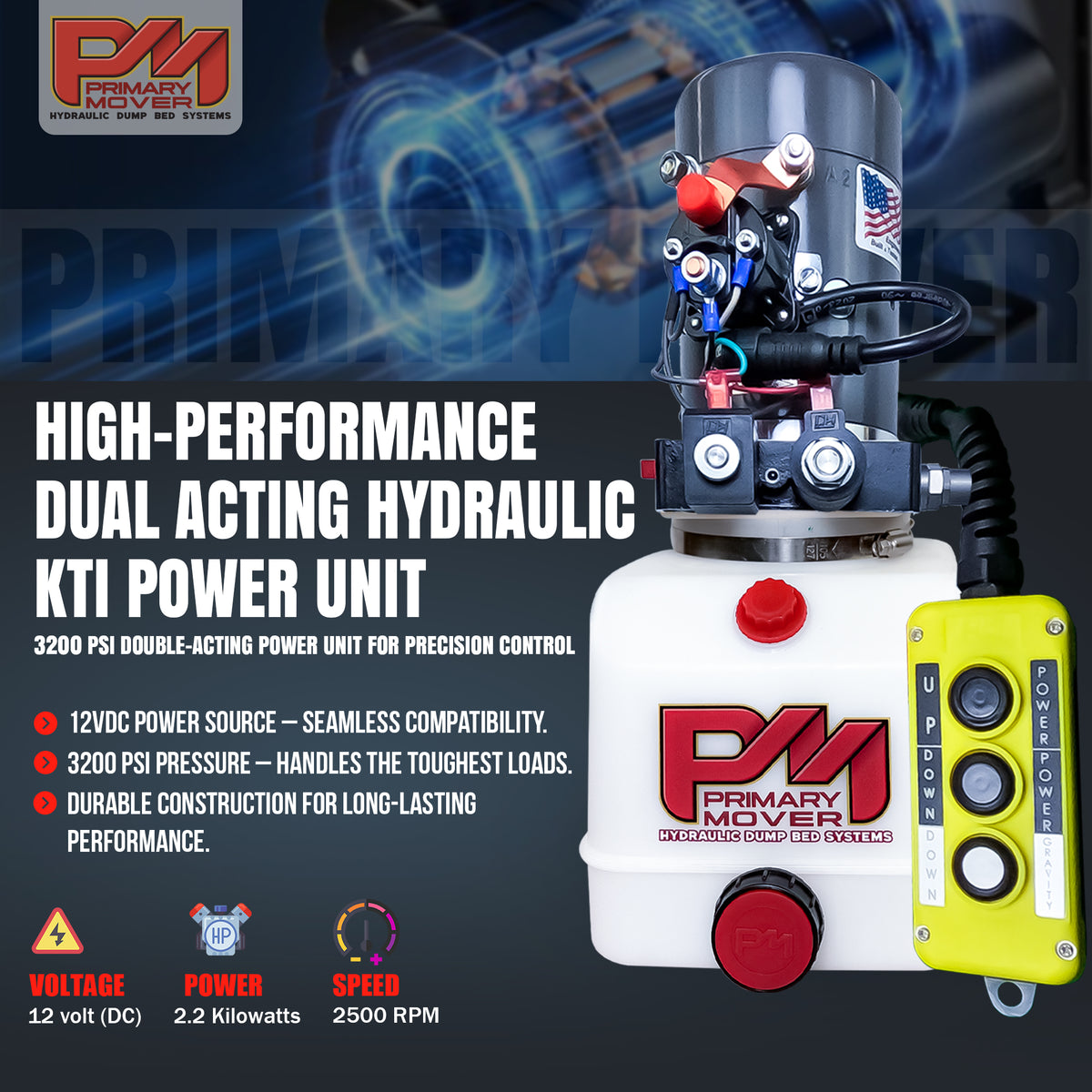

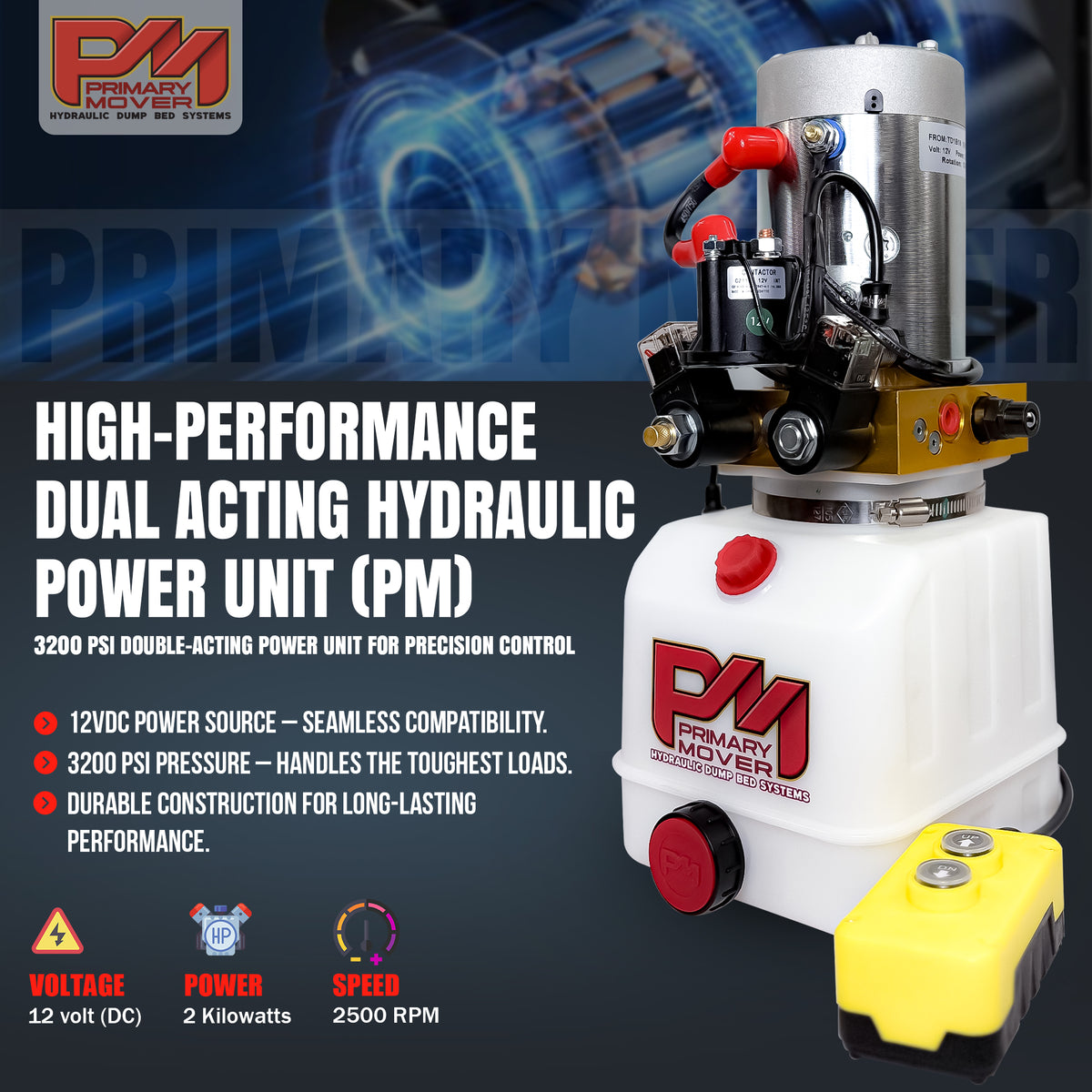

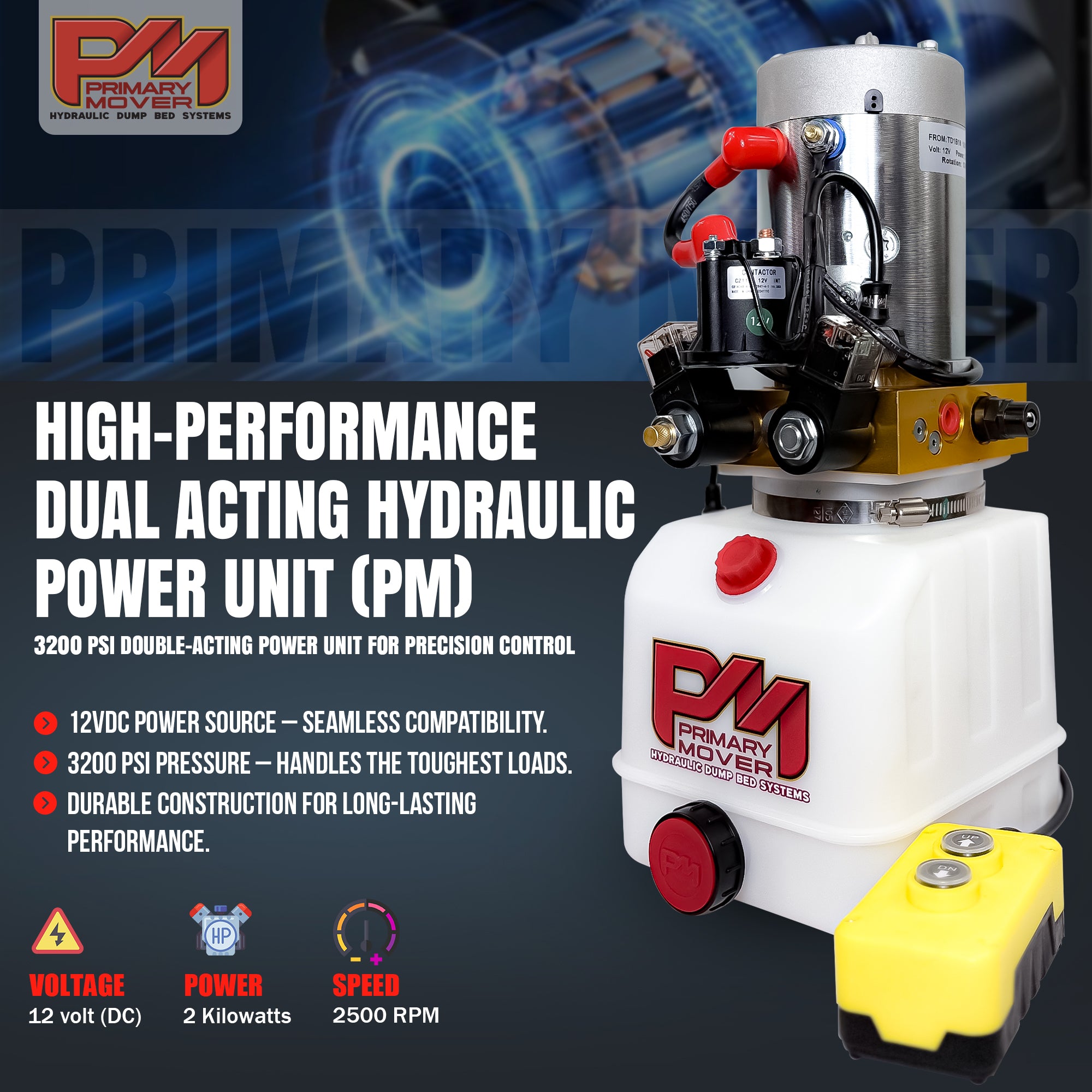

Power Unit Configuration

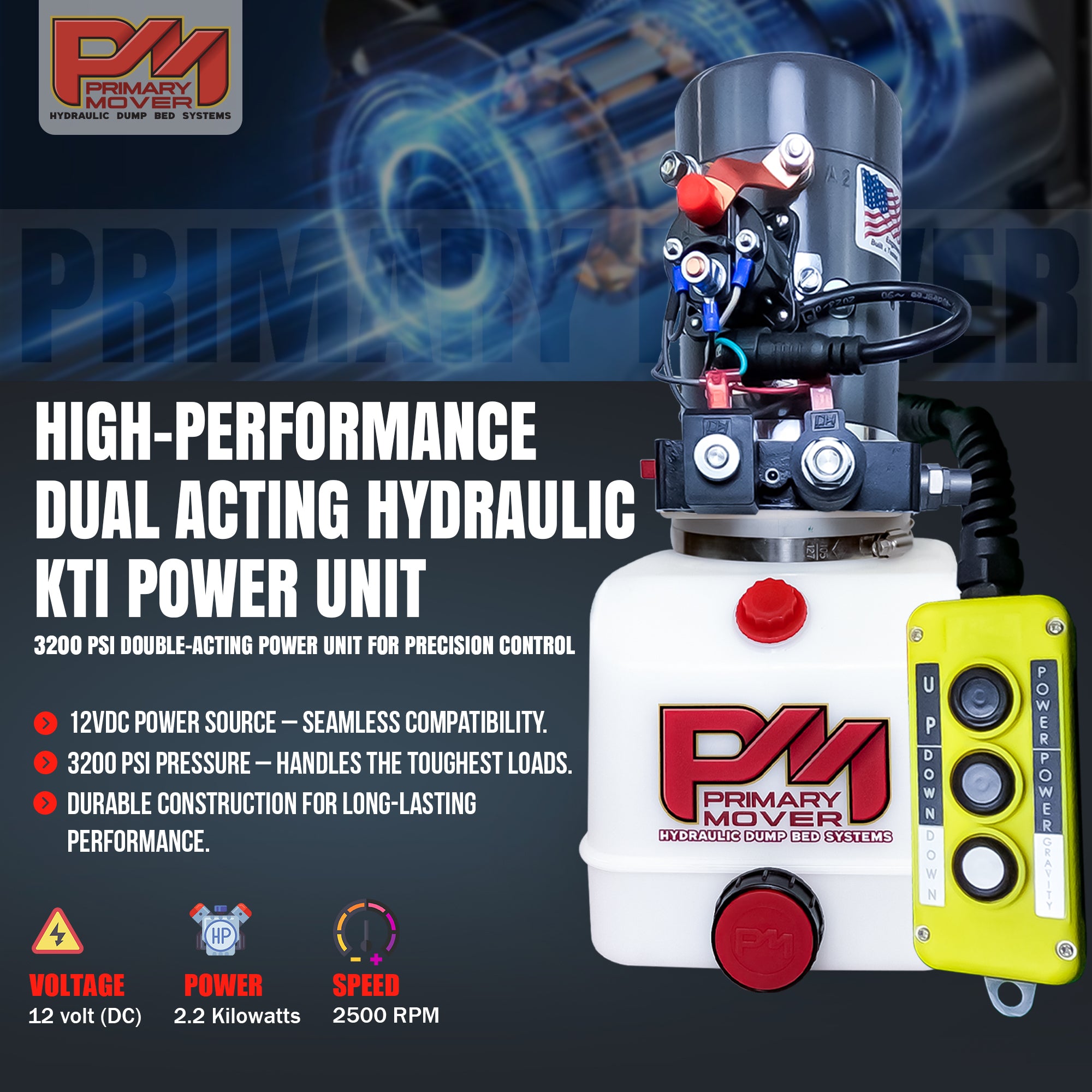

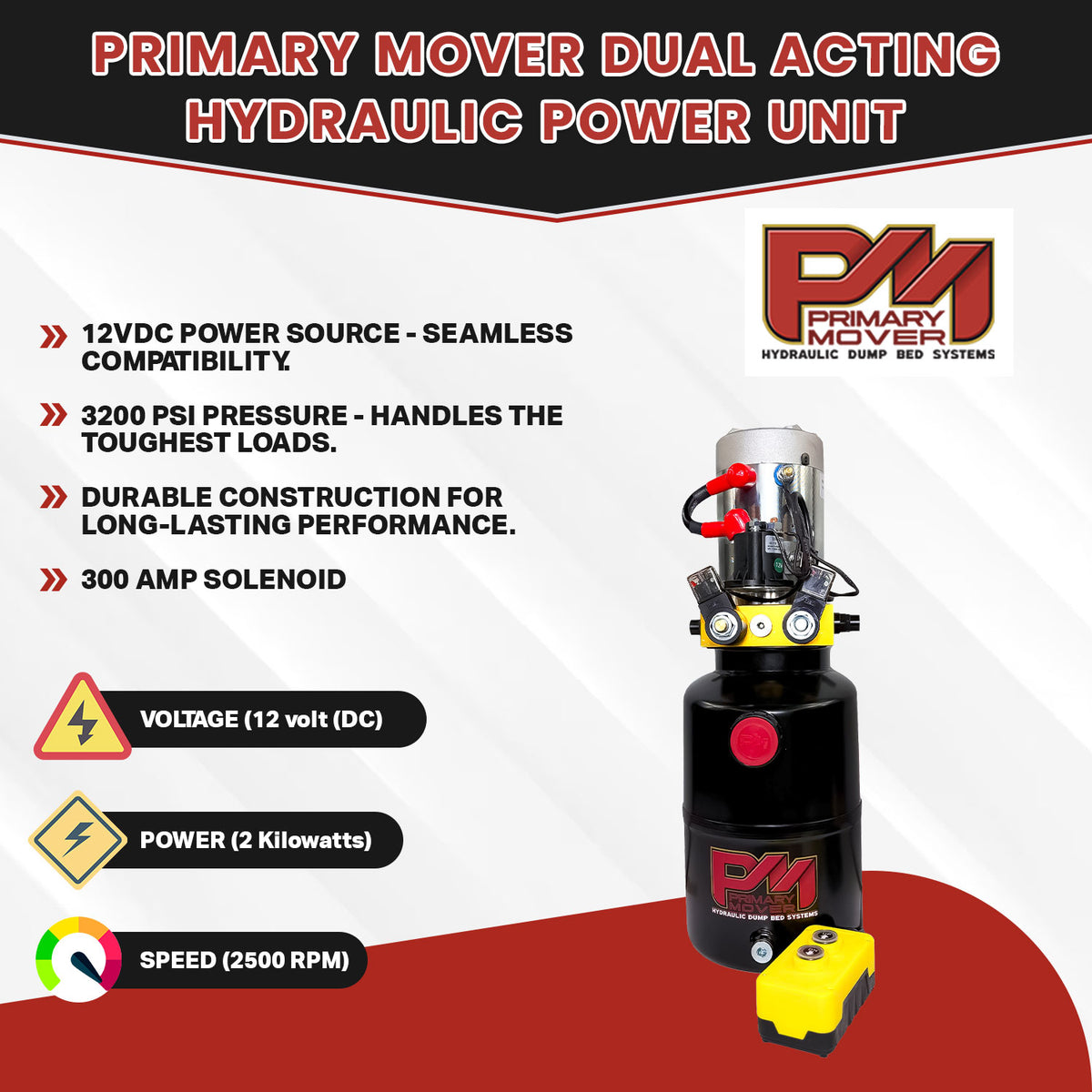

All Standard and Premium Kits now ship with a Primary Mover double acting power unit and 2-button remote.

  • ✅ Upgrade available: KTI 3-button remote (gravity down function)

  • ✅ Optional: Primary Mover 24VDC power unit – Ideal for customers with 24V systems. Offers lower amp draw without increasing speed, making it a great fit for high-voltage truck setups.

Shipping Information

FREE DELIVERY to commercial business addresses within commercially zoned areas equipped with a freight dock or forklift.
Residential, rural, or farm deliveries may incur additional fees. Please review this information carefully to avoid unexpected charges. For more details, see below or contact us directly.

Kits are shipped on a secure pallet for safe transit.

Specifications and Downloads

Download: Prime Force Warranty
Download: Prime Force Manual
Download: Compare Prime Force Models by Capacity
Download: Compare Prime Force Models by Dimensions
