PF-630 14-Ton HD Hydraulic Scissor Hoist Kit for 18–24' Dump Trucks & Trailers
Couldn't load pickup availability
We offer the following methods of delivery:
- Same day Freight Shipping when ordered Mon-Fri before 12pm central time. (excluding holidays)
- Pickup from our Mandeville, Louisiana warehouse
- In some cases, free shipping - please contact us: sales@primarymover.com or call 985-888-6554
PF-630: a 14-ton-class HD hydraulic scissor hoist for 18–24 ft dump bodies
The Prime Force PF-630 combines our HD-frame platform with a 6.5-inch-bore hydraulic cylinder, 30-inch stroke and 10 mm cylinder wall. Designed for suitable 18–24 ft dump trailers and dump truck bodies, it is the longest-stroke scissor hoist in our Prime Force lineup.
Choose Hoist Only, a Standard Kit or a Premium Kit. Powered kits offer Primary Mover 12V, KTI 12V with gravity down, or our 24V Twin Engine high-flow power unit for operators who want faster raising cycles from a large-cylinder hoist.
- 14-ton / 28,000 lb nominal hoist class, with installation-dependent lifting capacity.
- HD-frame platform for suitable larger-body and demanding applications.
- 6.5-inch cylinder bore and 30-inch stroke.

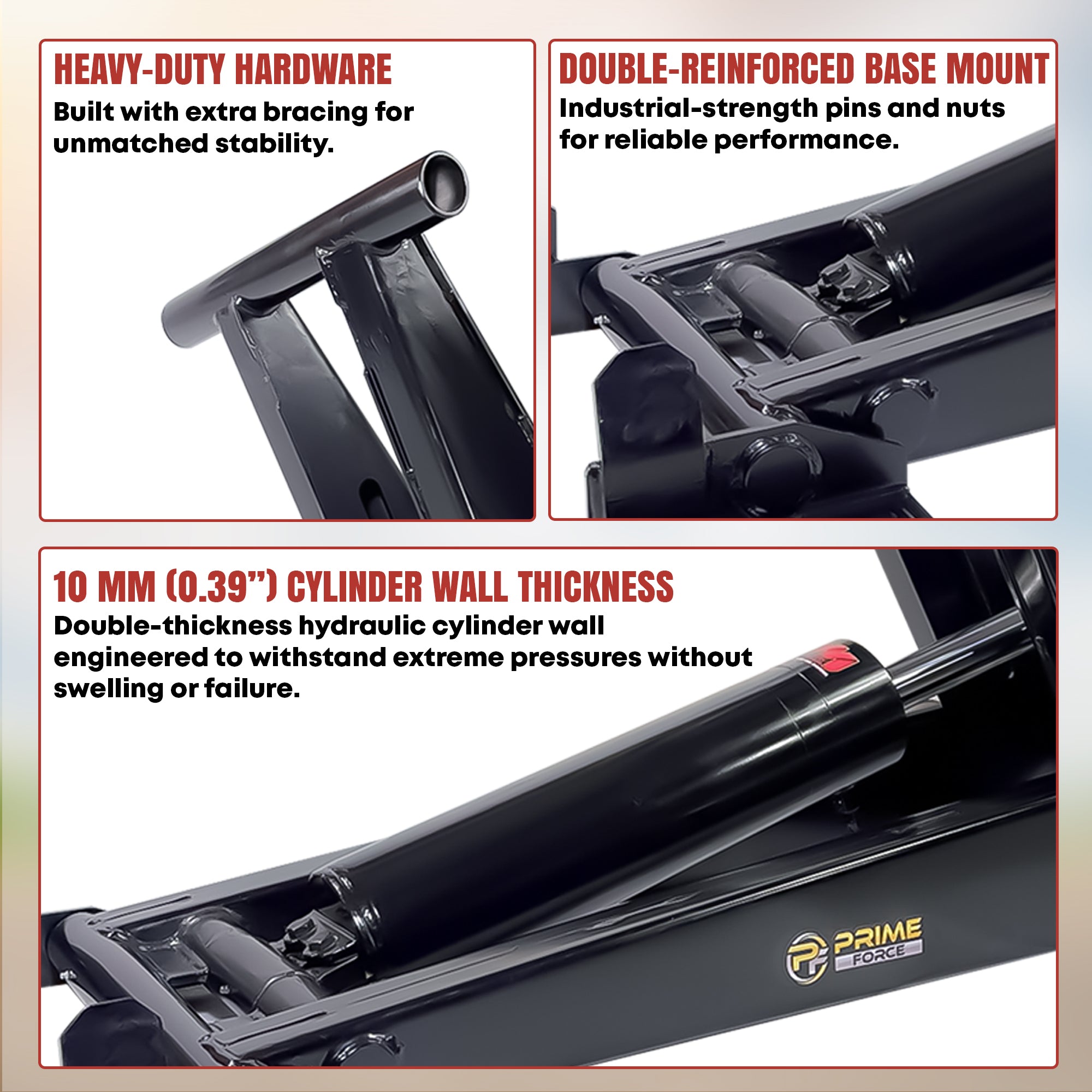

- 10 mm / approximately 0.394-inch cylinder wall.
- Typical applications: suitable 18–24 ft dump trailers and dump truck bodies.
- Heavy-duty rear hinges included in Standard and Premium kits.
- Optional Twin Engine upgrade: dual 2.2 kW motors, approximately 6 HP combined, with 24V double-acting operation.
- 36-month limited hoist warranty, with separate one-year power-unit coverage.

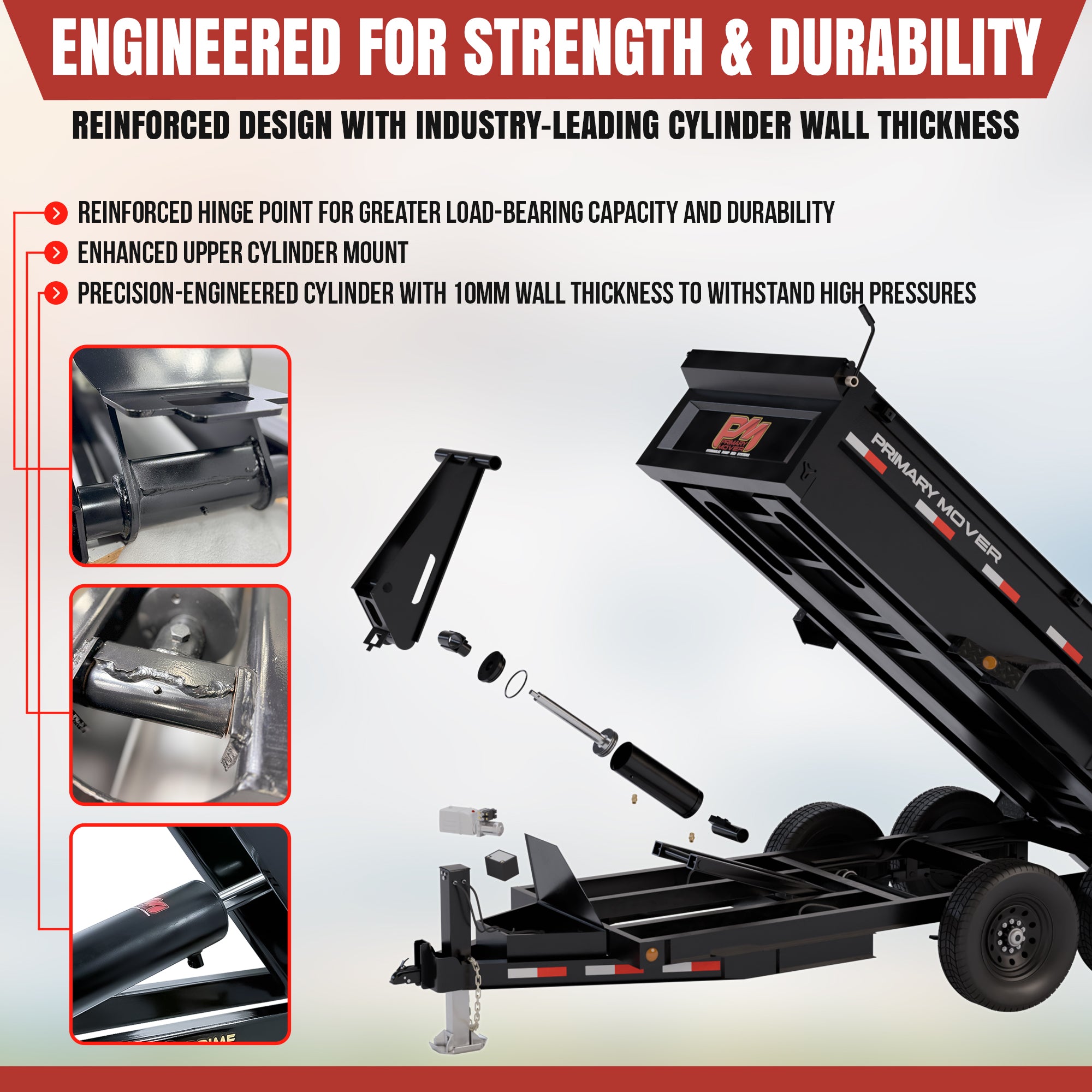

HD-frame construction for longer dump bodies
A hydraulic cylinder creates force, but that force must pass through the hoist’s frame, pivot supports and mounts into the dump body and chassis. On a demanding longer-body application, the complete structure matters as much as cylinder size.
The PF-630 uses our HD-frame platform with reinforced construction and larger structural supports for its intended applications. The surrounding chassis or subframe, body attachments, hinges and mounts must also provide the support required by the installation.
Compare the PF-630 with the PF-625 using their individual dimensions, capacity charts and required dump angle. Both use an HD frame and a 6.5-inch-bore cylinder, but the PF-625 has a 25-inch stroke while the PF-630 has a 30-inch stroke. Their complete geometry and mounting requirements differ.
Read PF-621-6 vs. PF-625 and PF-630: When to Choose an HD Scissor Hoist Frame.
Less waiting with the Twin Engine power-unit option
A 6.5-inch-bore cylinder with a 30-inch stroke requires substantial oil volume to extend. At the same pump flow, additional cylinder travel means a longer raising cycle. For frequent dumping, improving the hydraulic system’s working flow can reduce time spent waiting.
Our PFP-24TDA15S Twin Engine 24V double-acting power unit uses two 2.2 kW motors—approximately 6 HP combined—and a 15-quart steel reservoir. It delivers over 4 GPM depending on operating pressure, while maintaining usable flow at pressures up to 3,200 PSI.
In a suitable installation, the additional flow can bring raising time close to half that of a comparable single-motor setup. Actual improvement depends on working pressure, electrical supply, hydraulic restrictions, load and installation. Lowering time and the complete unloading cycle may improve by a different amount.
Select the 24VDC Twin Engine 6HP Power Unit option in either the Standard or Premium package. It requires a suitable 24V battery system, correctly sized wiring and compatible charging equipment.
Explore the PFP-24TDA15S Twin Engine power unit and performance details.
Read our hydraulic power-unit selection guide.
What the 14-ton class means for your build
The 14-ton designation describes the hoist’s nominal capacity class. It is not a truck or trailer payload rating, and it does not mean every installation can dump 28,000 lb of material.

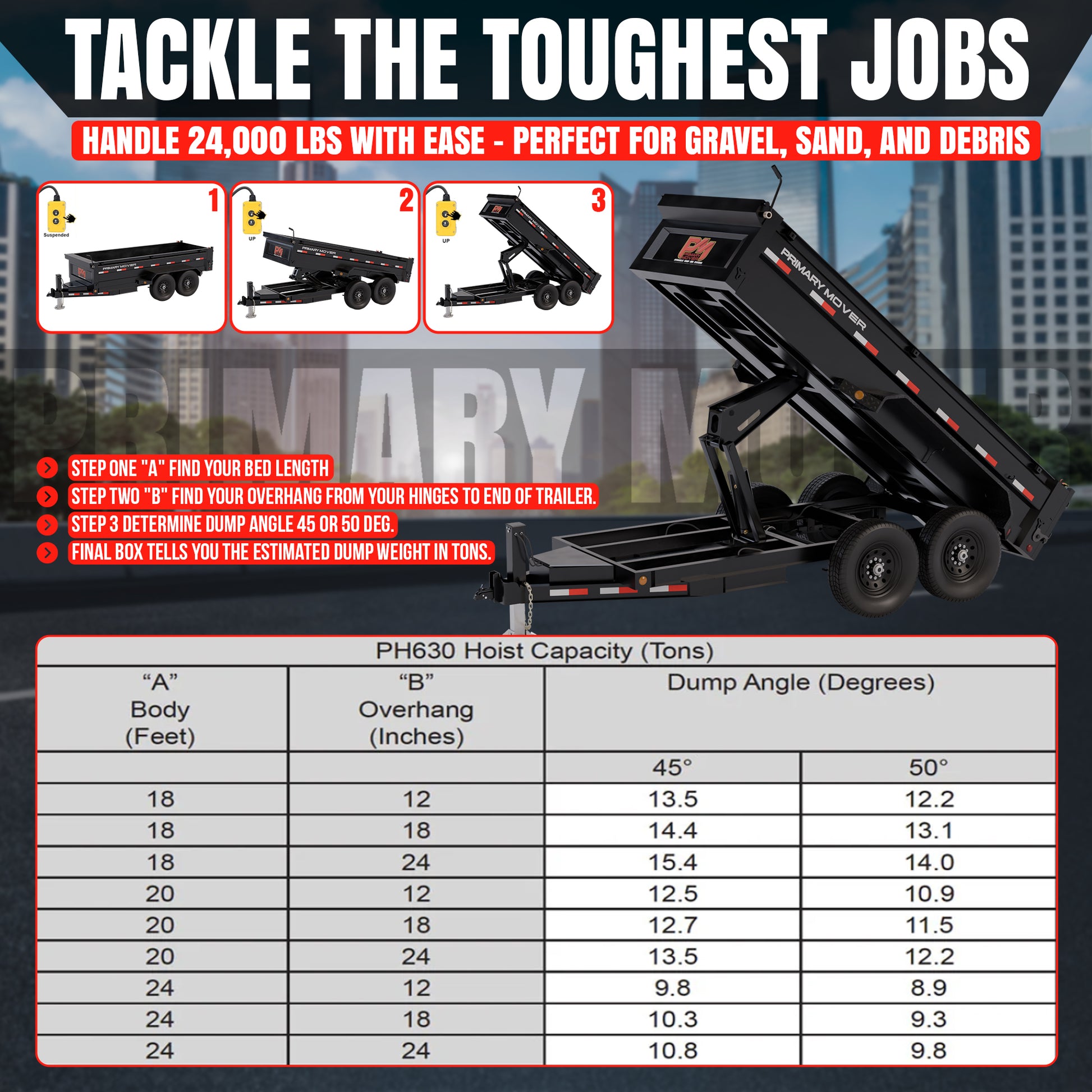

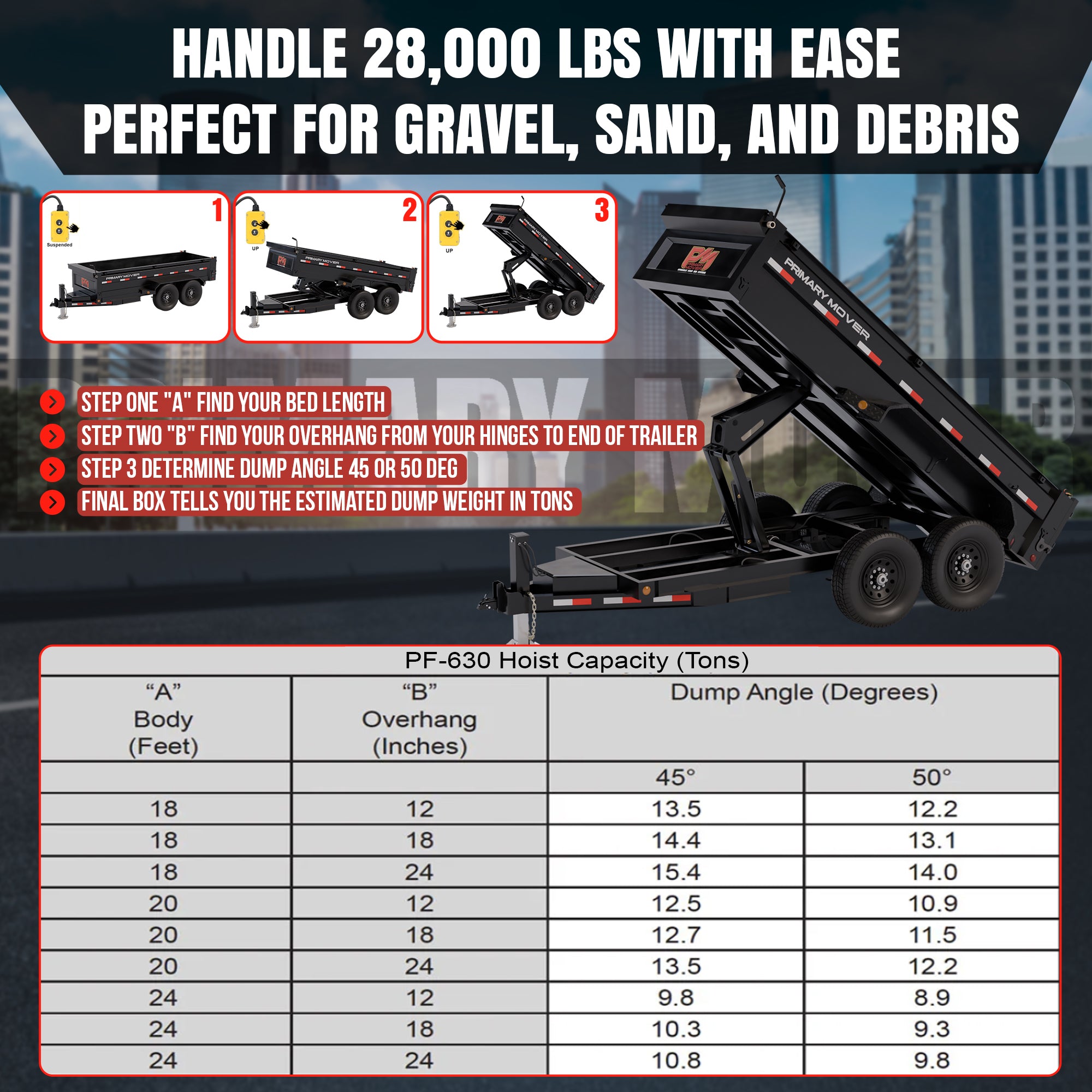

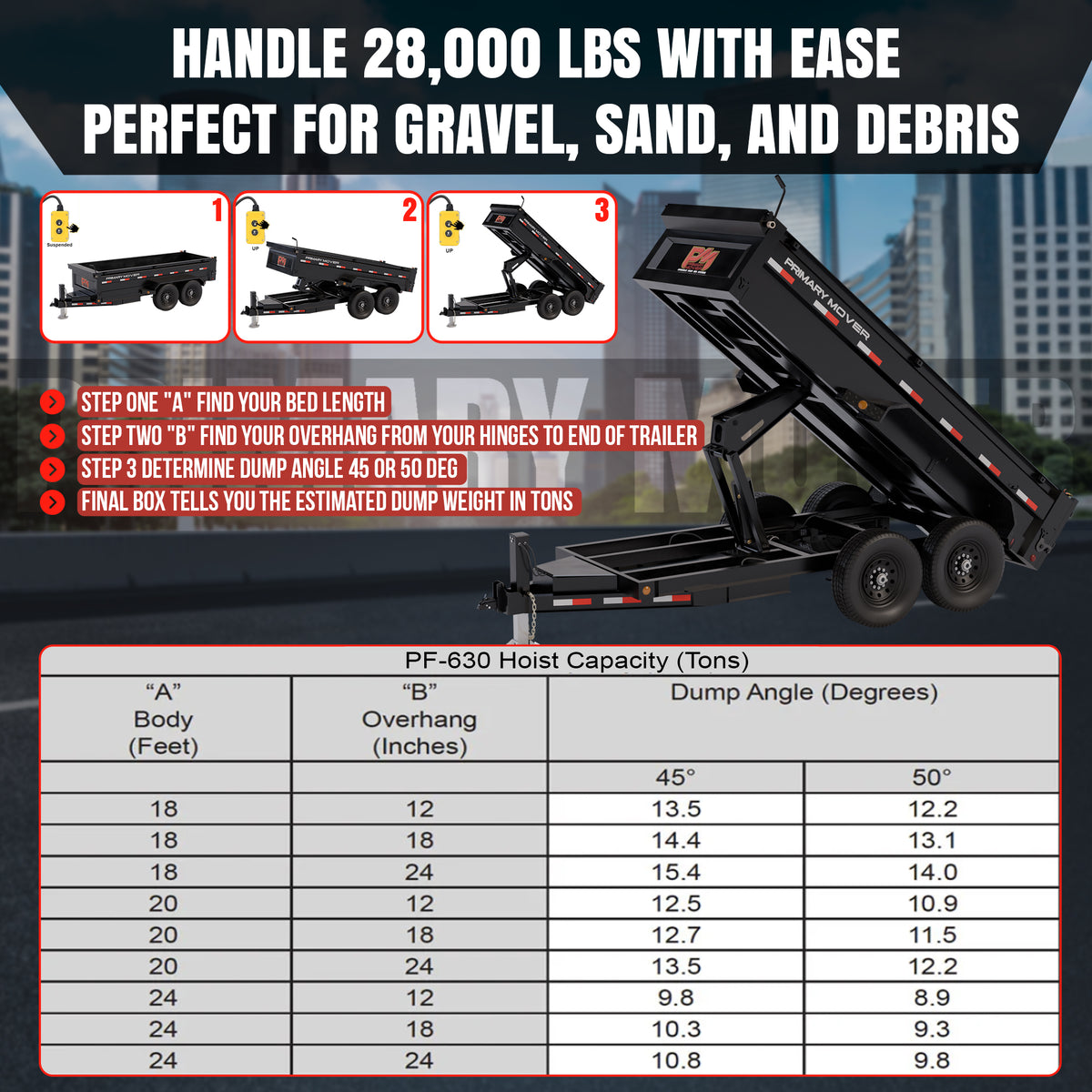

The hoist raises both the moving dump body and its contents. Actual lifting capability depends on body length and weight, material weight and distribution, rear-hinge overhang, mounting geometry, target dump angle and hydraulic pressure.
GVWR means Gross Vehicle Weight Rating. An HD hoist or faster power unit does not increase your vehicle’s GVWR, axle ratings, payload limits or the ratings of its tires, wheels, hinges, hitch and other components.
Account for the completed vehicle’s weight and remain within all applicable vehicle and component ratings. A load that the hoist can raise may still exceed what the truck or trailer can safely carry.
Use the Scissor Hoist Selector to compare your planned installation, then confirm the layout against the capacity chart and installation manual.
Match the 30-inch stroke to your installation
The PF-630’s cylinder travel works with its complete hoist geometry to provide mounting options for suitable longer dump bodies. Body length, rear-hinge location, rear overhang and hoist placement determine the lifting requirement and achievable angle.
Moving the lifting point farther forward can improve leverage, but the same lifting travel at that location generally produces less body rotation. Use the PF-630’s mounting dimensions and capacity chart to balance lifting capability and dump angle.
Body length alone does not establish fit or lifting capacity. Confirm mounting space, clearance throughout the lift cycle and the structural support required by the installation manual.
Choose your PF-630 package
Hoist Only

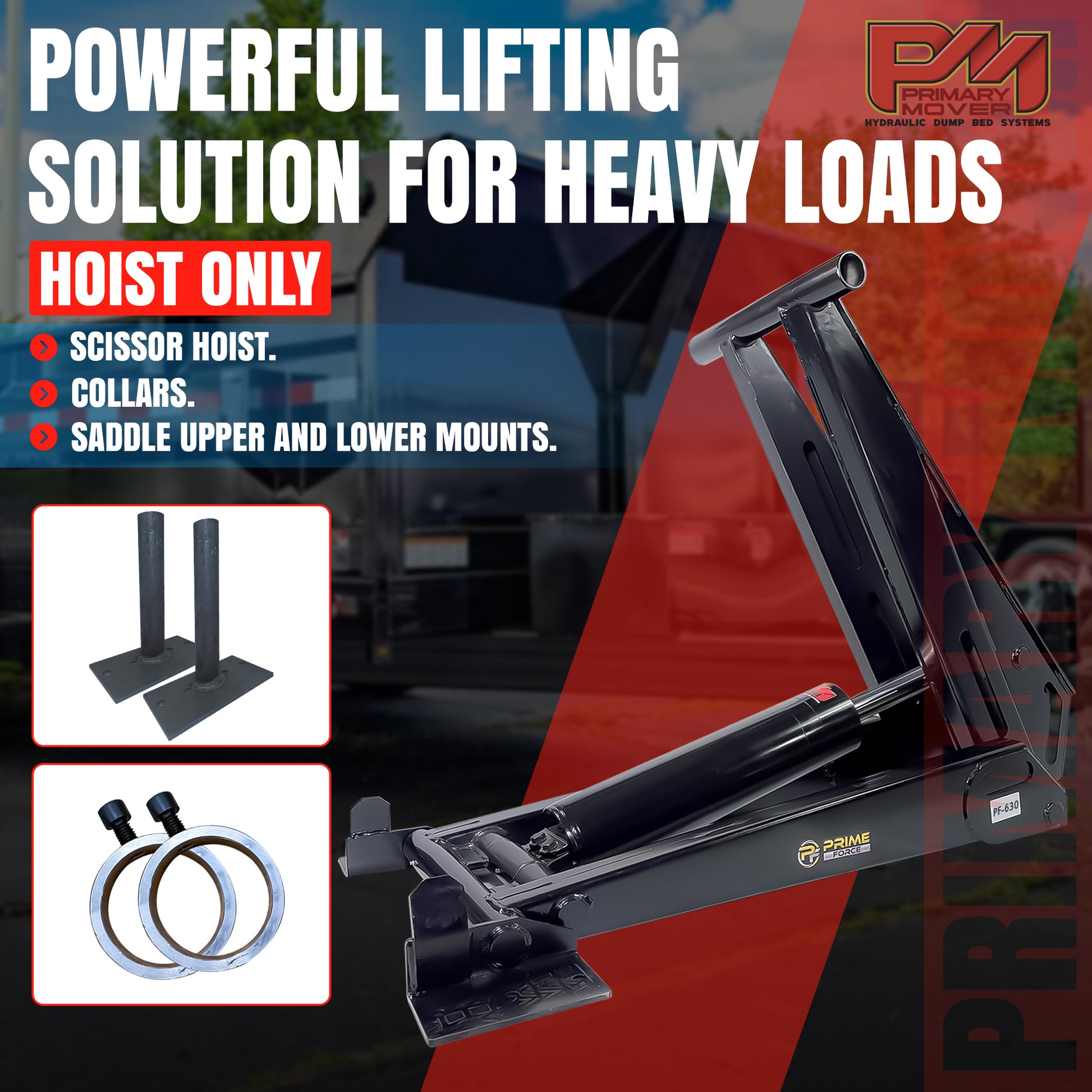

Includes the PF-630 HD hoist assembly with its hydraulic cylinder and hoist mounting hardware. No hydraulic power unit, control pendant or charging accessories are included.
Supply a compatible hydraulic system with suitable pressure, flow, reservoir capacity, hydraulic circuit and controls.
Select “Primary” in the power-unit menu when choosing Hoist Only. This required menu selection does not add a pump to the Hoist Only package.
Standard Kit

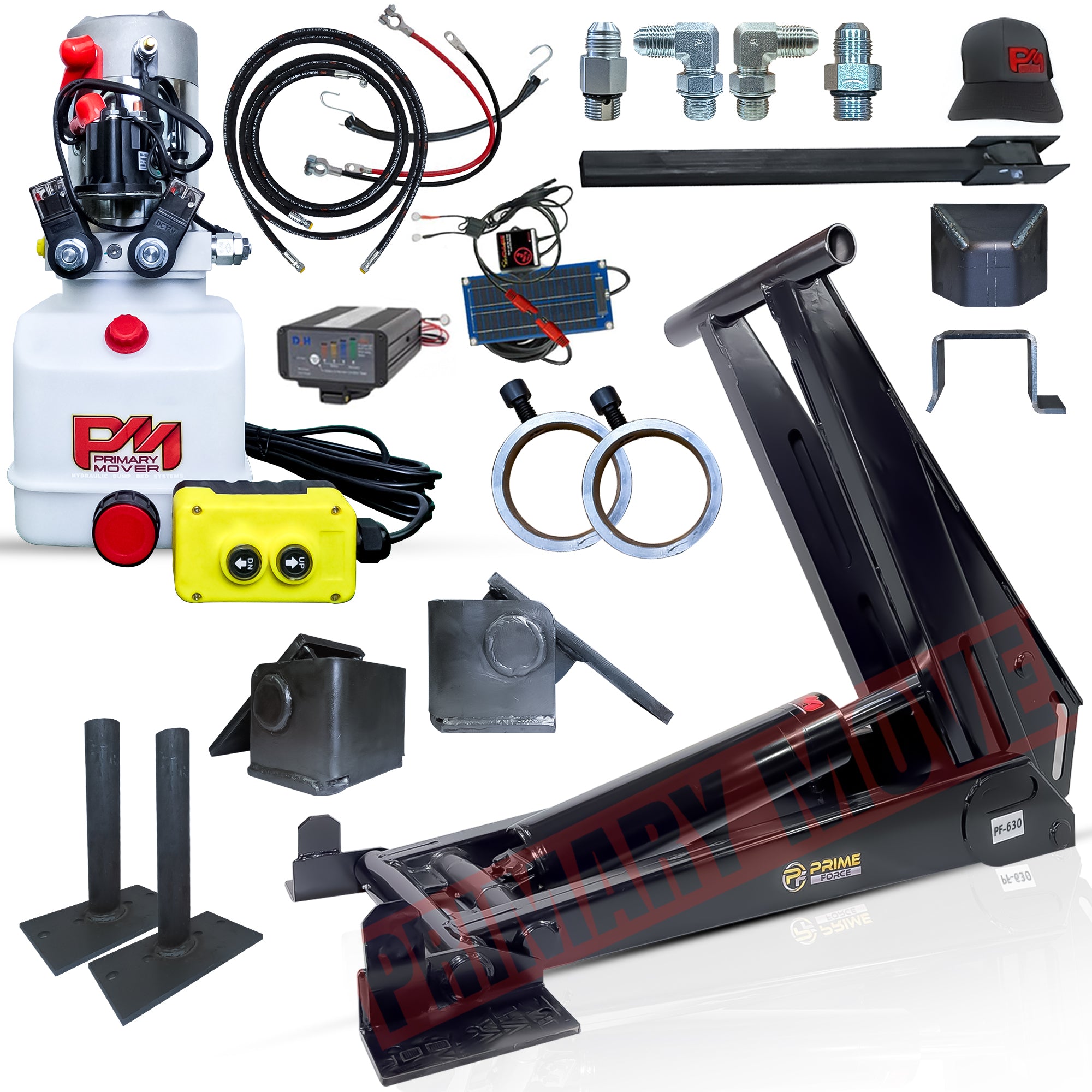

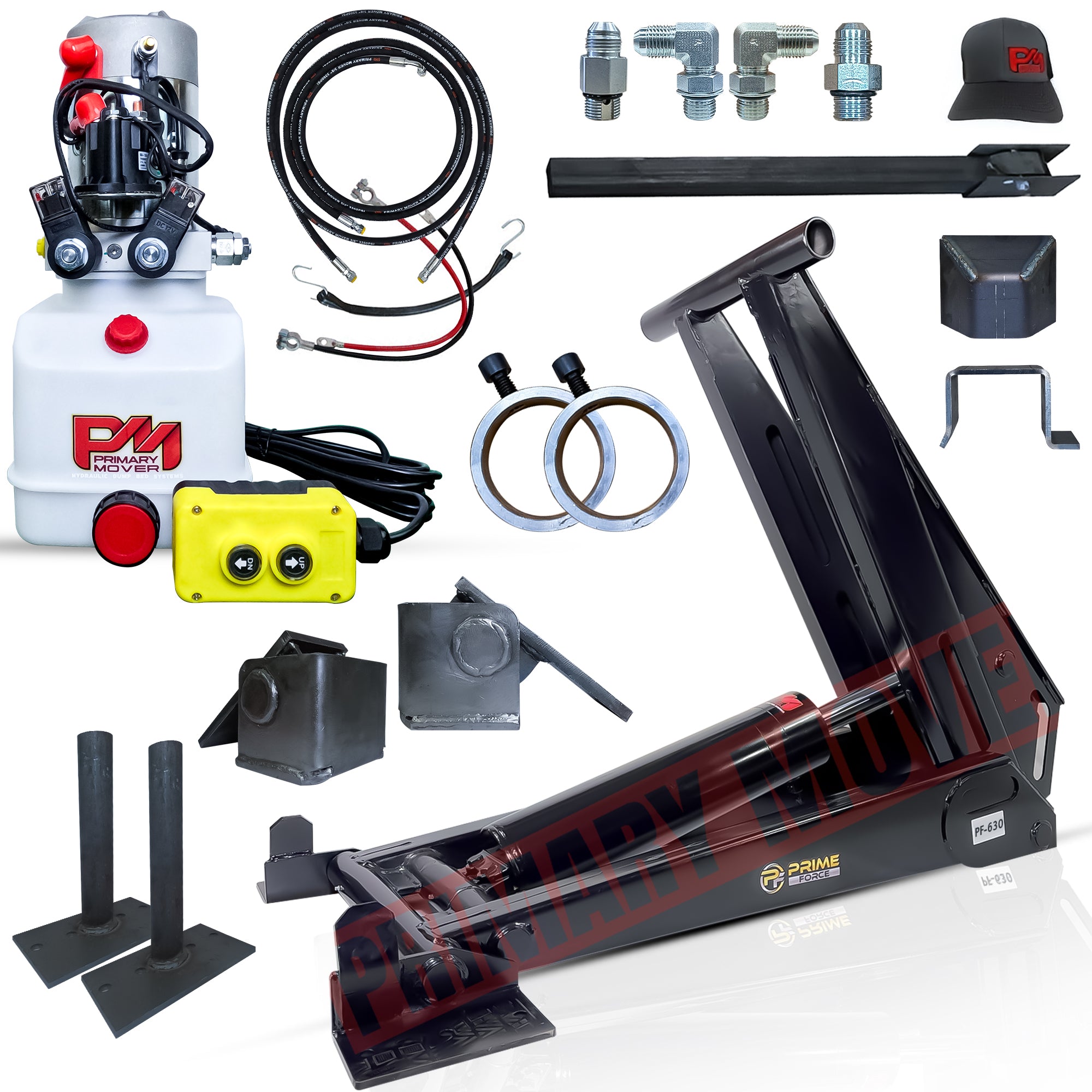

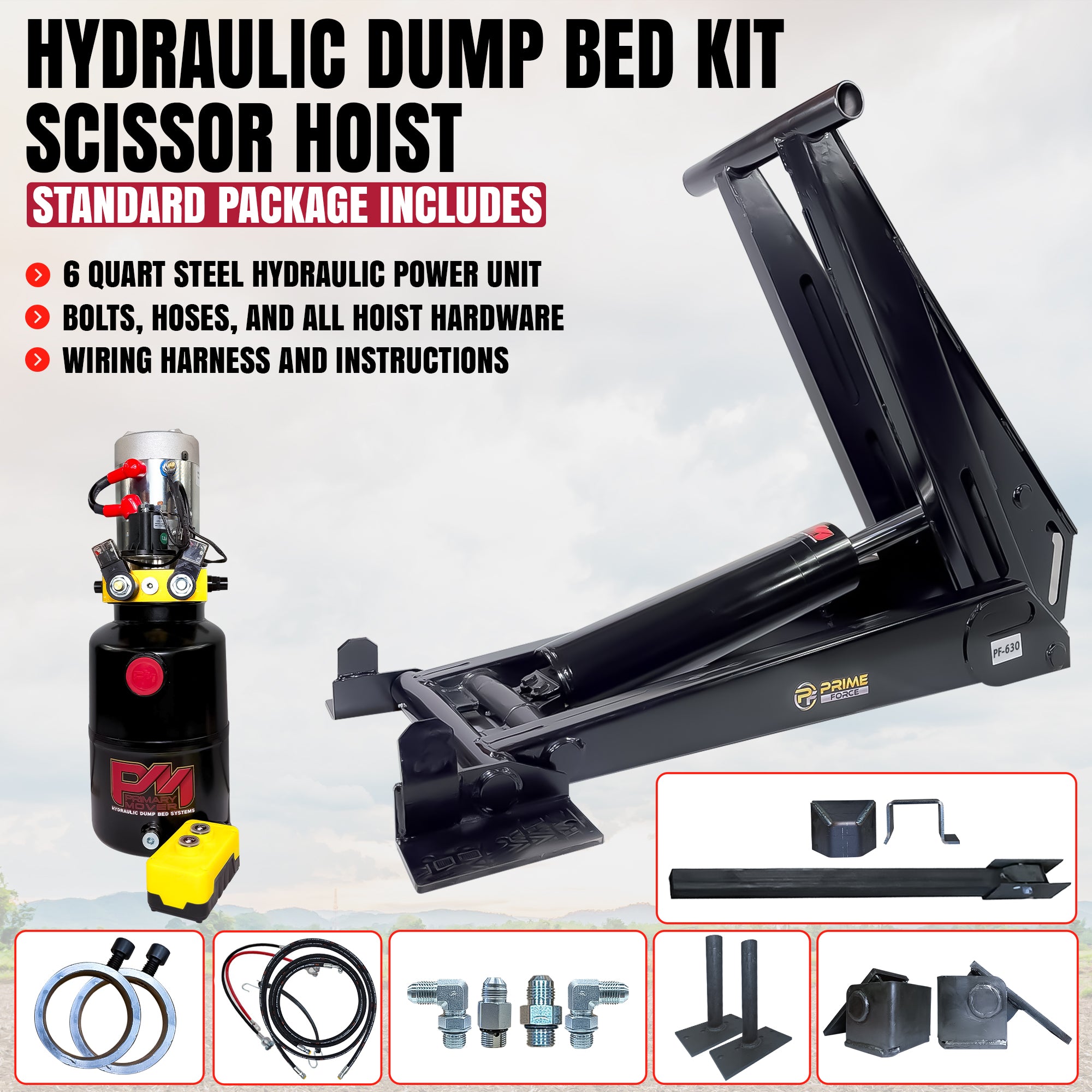

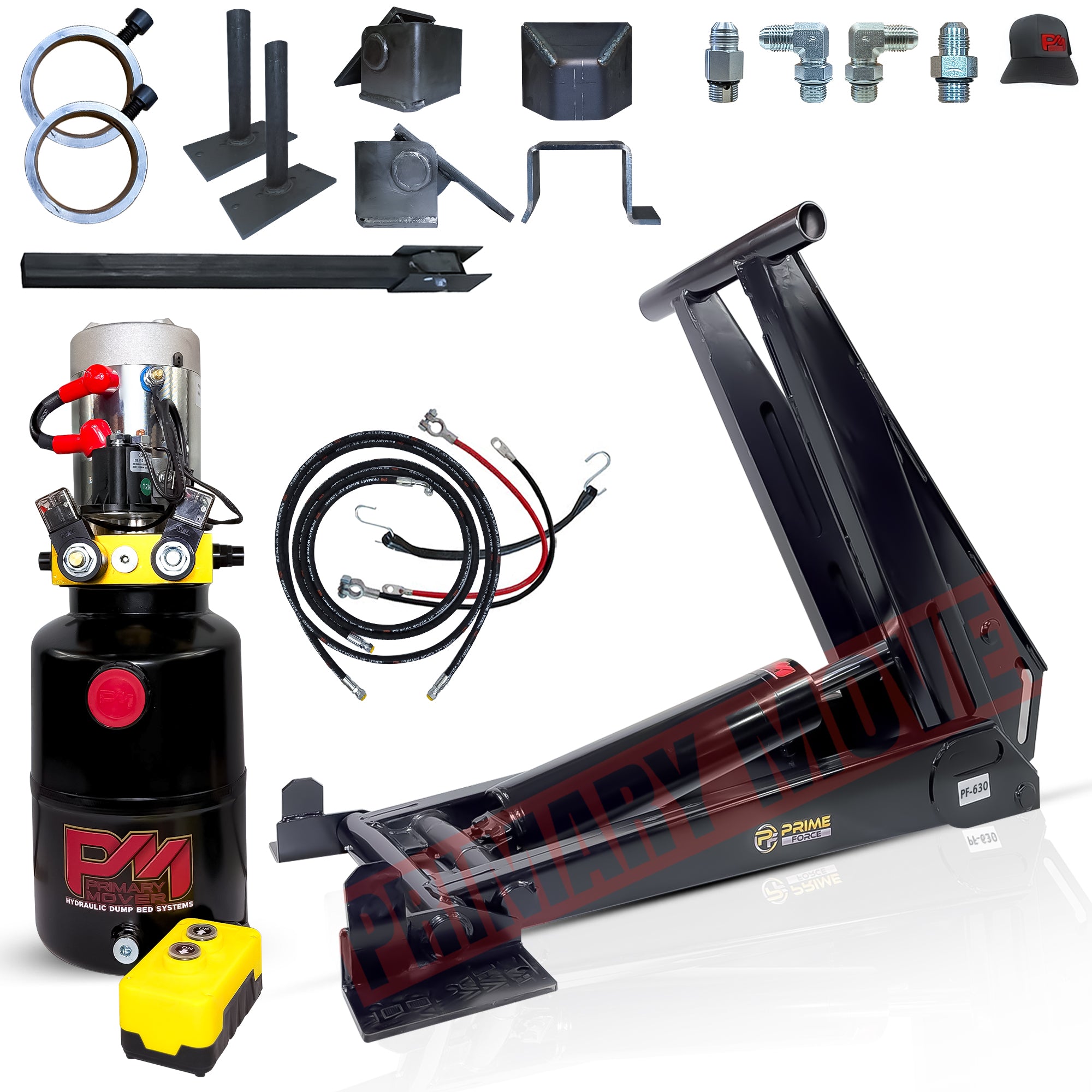

The Standard Kit includes:
- PF-630 HD scissor hoist assembly with its 6.5-inch-bore, 30-inch-stroke hydraulic cylinder
- Mounting brackets and hoist mounting hardware
- Heavy-duty rear hinges (HD hinges)
- Hydraulic hoses, fittings and connectors
- Safety prop-arm assembly (safety bar kit)
- Bridon load-control valve
- Your selected hydraulic power unit and matching control pendant
- Safety labels and installation manual
The Primary Mover 12V configuration includes a 15-foot, two-button pendant for power-up/power-down operation.
A battery is not included. Supply a suitable battery or battery system matched to the selected power unit. This also applies to Premium Kits.
Premium Kit

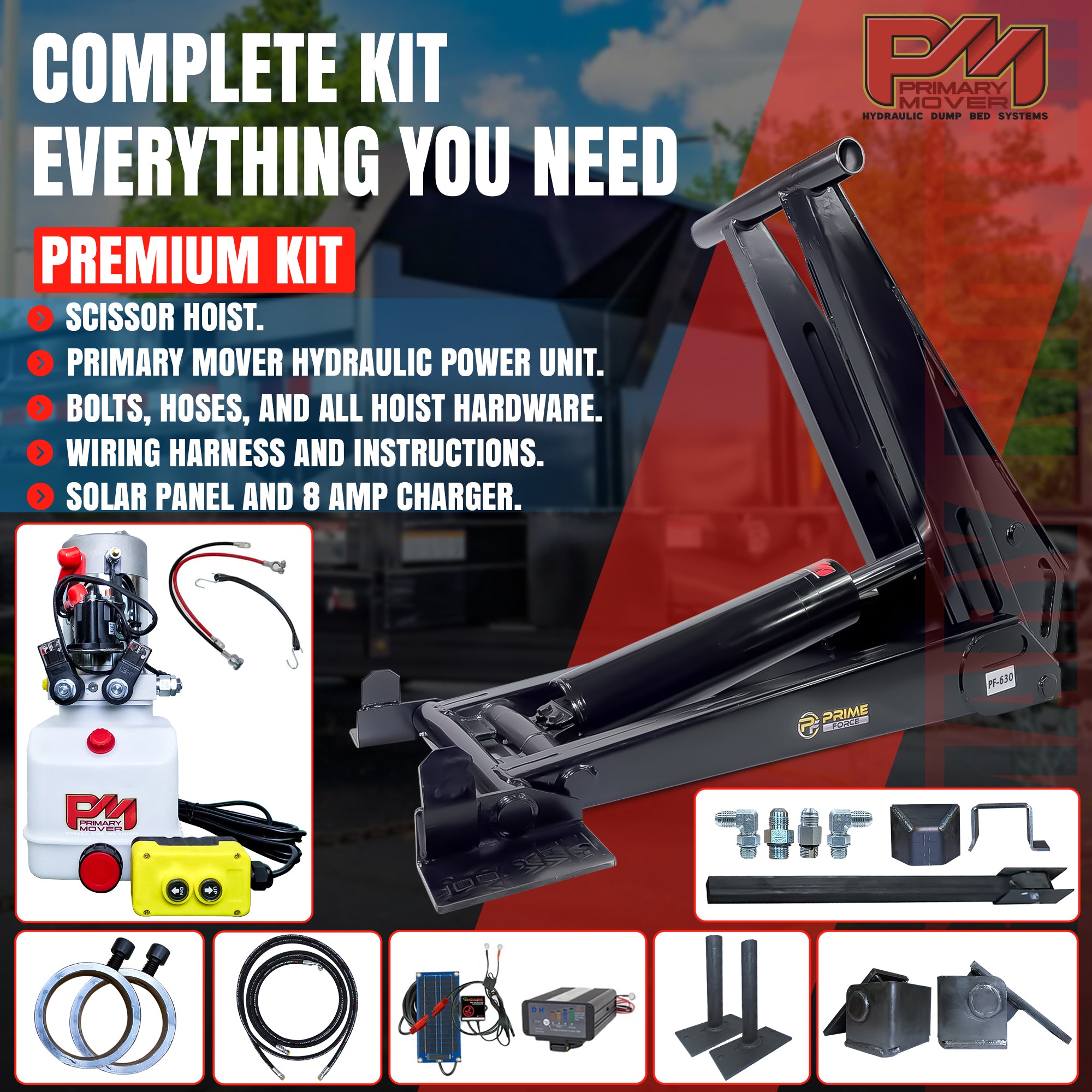

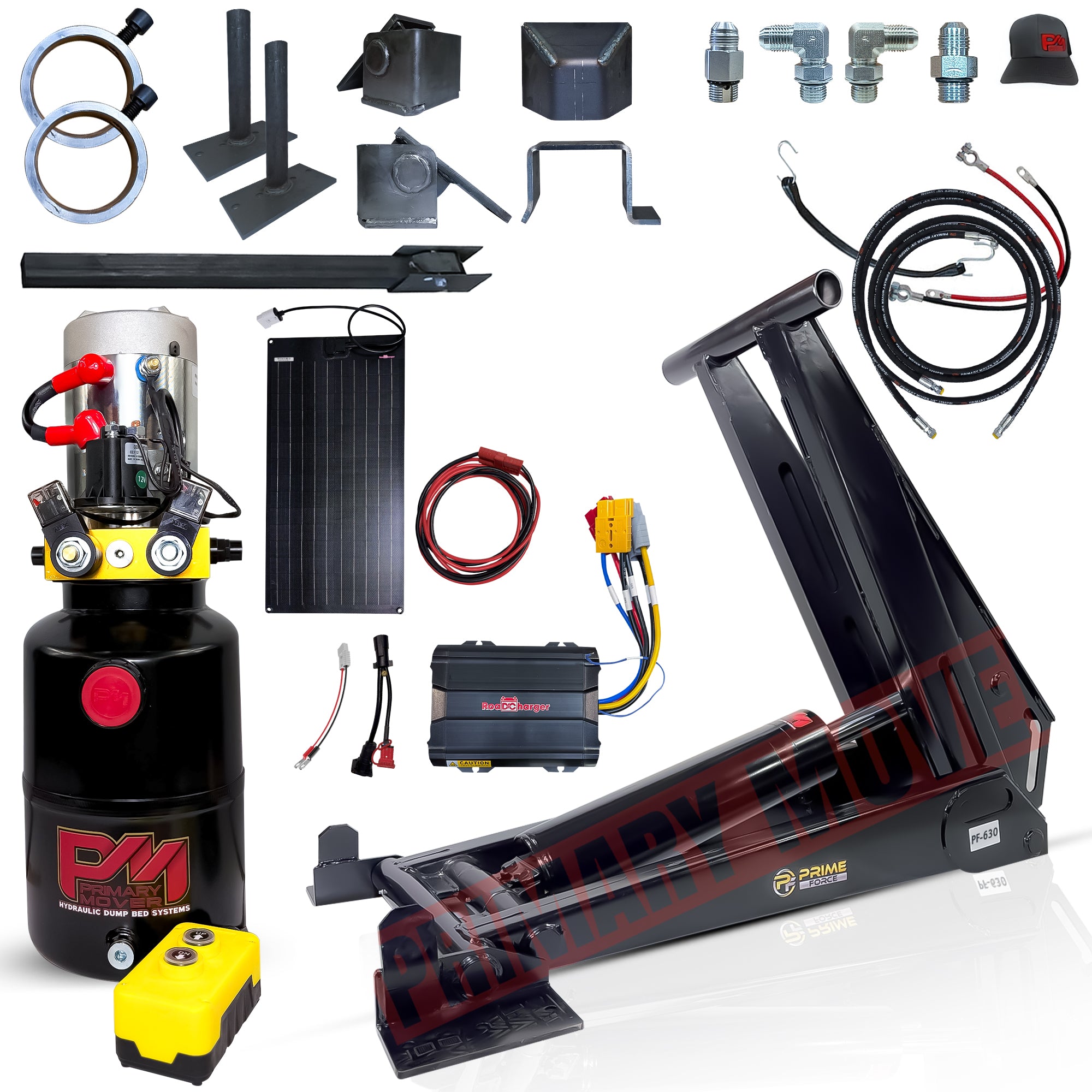

The Premium Kit includes your selected Standard Kit configuration plus charging equipment matched to its voltage:
- Primary Mover 12V or KTI 12V: 12V RoaDCharger with up to 25-amp charging while driving, a 7-way connection harness and a 33-watt solar panel for maintenance charging.
- Twin Engine 24V: 24V RoaDCharger with a direct-wire charging connection. No solar panel is included in this configuration.
Actual charging current depends on the charging source, wiring, battery condition and installation.
Explore RoaDCharger configurations and connection details.
Choose your hydraulic power unit

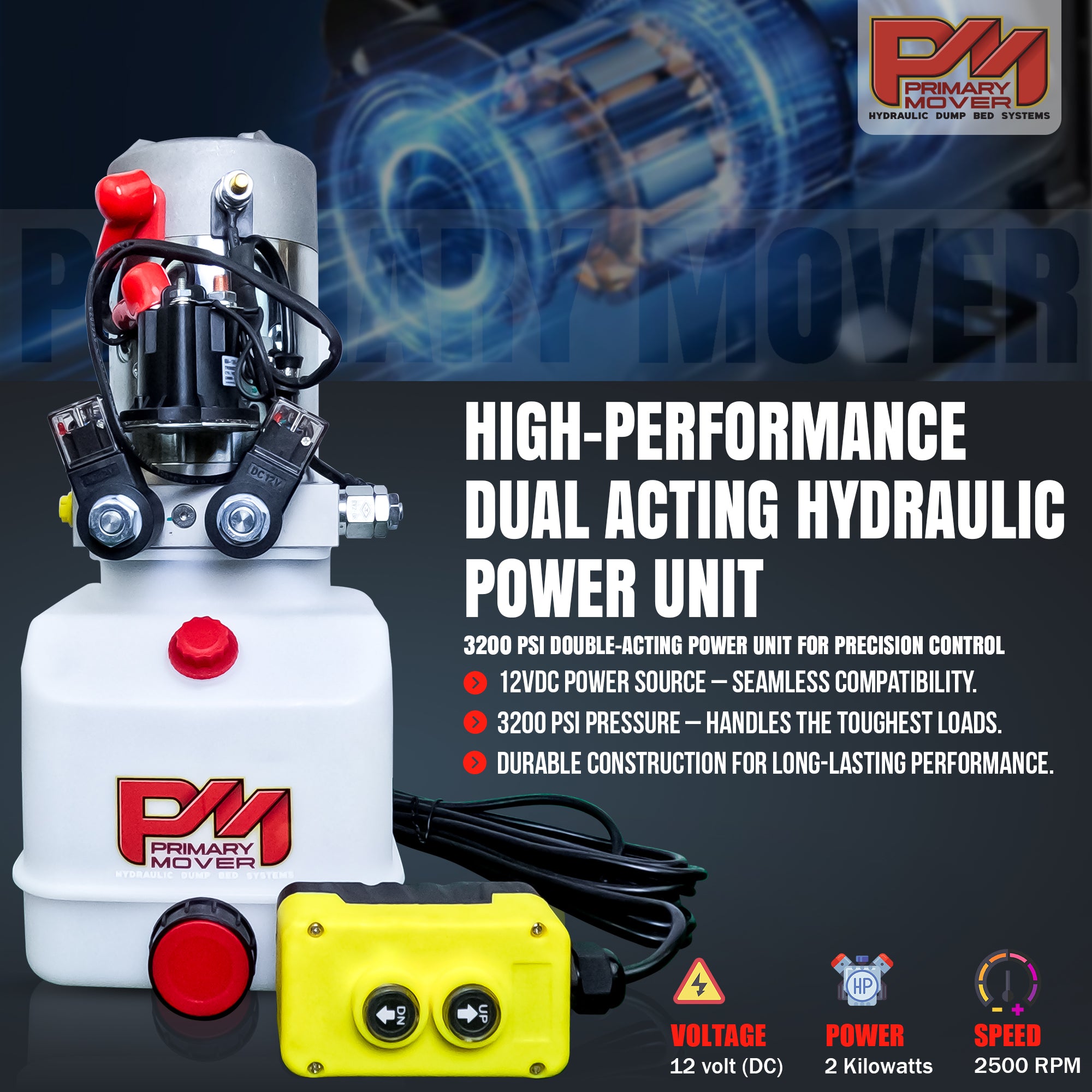

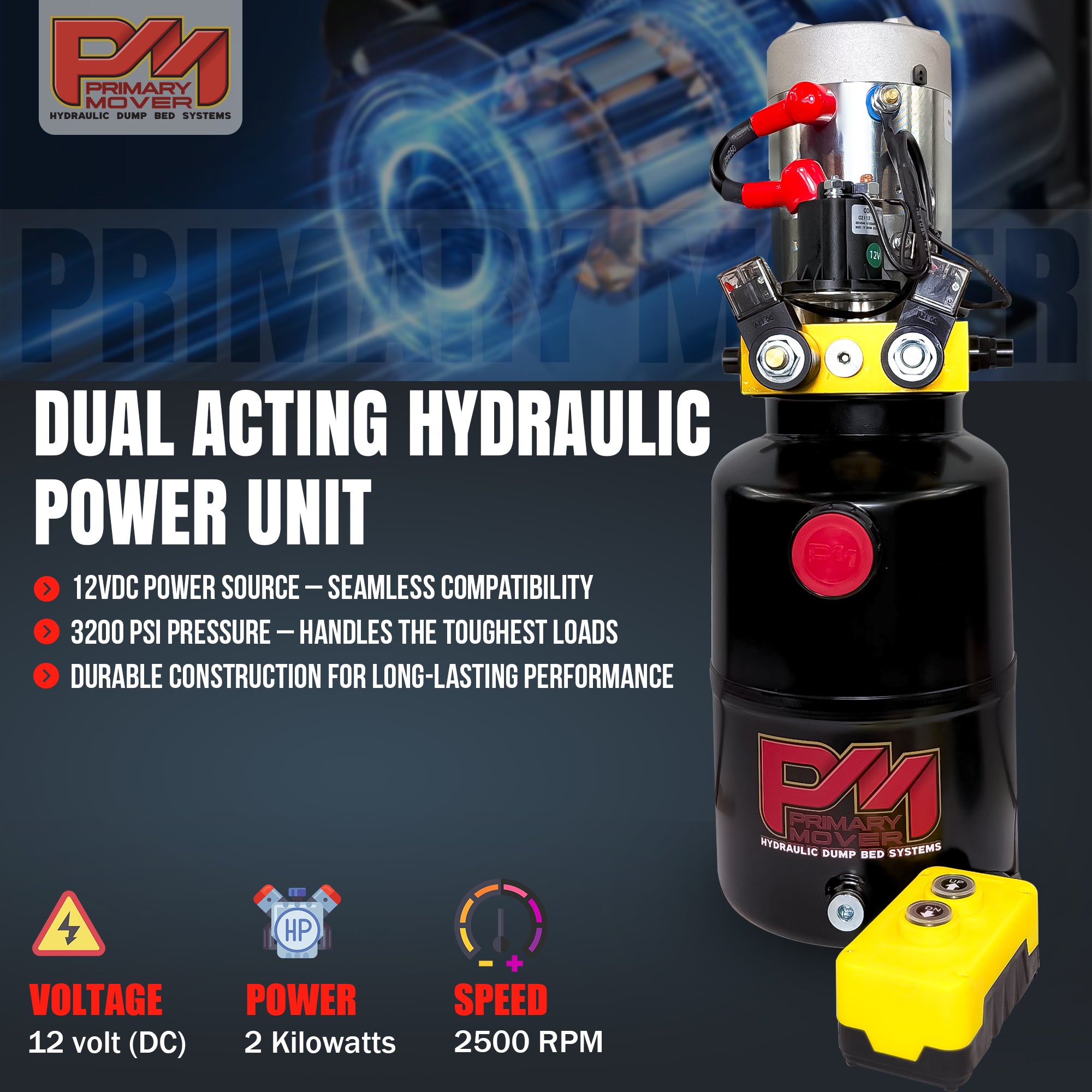

- Primary Mover 12V: Our standard single-motor double-acting power unit with a 2.2 kW / approximately 3 HP motor and a two-button power-up/power-down remote.
- KTI 12V: KTI hydraulic power unit with its matching three-button control for power up, power down and gravity down. This option changes both the power unit and control.
- Twin Engine 24V: PFP-24TDA15S double-acting power unit with two 2.2 kW motors, approximately 6 HP combined, a 15-quart steel reservoir and matching power-up/power-down control.
The Twin Engine unit’s additional pumping capacity improves raising speed. Voltage alone does not make a hydraulic cylinder move faster.
The Twin Engine configuration requires a suitable 24V supply. Two suitable, matched 12V batteries wired in series can provide 24V. Confirm battery capacity, cable sizing, circuit protection and charging compatibility for the complete installation.
PF-630 specifications
| Model | Prime Force PF-630 HD |
|---|---|
| Nominal hoist class | 14 tons / 28,000 lb class; installation-dependent lifting capacity |
| Typical dump-body length | 18–24 ft |
| Cylinder bore × stroke | 6.5 inches × 30 inches |
| Cylinder wall thickness | 10 mm / approximately 0.394 inch |
| Frame platform | HD frame |
| Standard and Premium rear hinges | Heavy-duty hinges |
| Package options | Hoist Only, Standard Kit or Premium Kit |
| Powered-kit configurations | Primary Mover 12V, KTI 12V with gravity down, or Twin Engine 24V |
| Twin Engine power unit | PFP-24TDA15S; dual 2.2 kW motors, 24V double-acting operation and 15-quart steel reservoir |
| Battery included | No |
| Hoist warranty | 36-month limited warranty, subject to warranty terms |
| Power-unit warranty | One year, subject to applicable warranty terms |
Mounting and installation requirements
Check the PF-630 mounting drawing against your chassis, crossmembers, rear-hinge location and available space. Provide the structural support required by the installation manual at the chassis or subframe, body attachment points, hinges and mounts.
Evaluate moving-body weight and material load against the capacity chart for the intended body length, rear overhang and dump angle. Match the hydraulic system to the hoist and load-control components.
Do not exceed applicable system or component pressure limits to compensate for an overloaded or unsuitable installation. A higher-flow power unit does not increase structural ratings or correct unsuitable mounting geometry.
PF-630 questions and answers
Does a 14-ton HD hoist let my trailer carry 14 tons of material?
No. The designation describes the hoist’s nominal capacity class. The moving dump body also contributes to the weight being raised, and the vehicle must remain within its applicable GVWR, axle ratings, payload limits and component ratings.
What is the difference between the PF-625 and PF-630?
Both use an HD-frame platform and a 6.5-inch-bore cylinder. The PF-625 has a 25-inch stroke and typical 16–20 ft body range; the PF-630 has a 30-inch stroke and typical 18–24 ft body range. Compare their individual mounting dimensions and capacity charts for your build.
Can the PF-630 be used on a 24-foot dump body?
A 24-foot body is within its typical application range. Confirm moving-body weight, material load, mounting arrangement, rear overhang and desired dump angle against the model’s capacity chart and installation instructions. The 14-ton class does not establish the lifting capacity of that installation.
Can the Twin Engine unit cut raising time in half?
Raising time can approach half that of a comparable single-motor setup when the Twin Engine unit supplies roughly twice the effective lifting flow. Actual improvement depends on the complete installation. Lowering and total unloading time may improve by different amounts.
What is included with the 24V Twin Engine selection?
The selected Standard or Premium Kit includes the PFP-24TDA15S twin-motor double-acting power unit and matching power-up/power-down control. Premium also adds the 24V RoaDCharger and direct-wire charging connection. Batteries are not included.
Does the Twin Engine option provide gravity down?
This is a double-acting power-up/power-down configuration. Choose the KTI 12V three-button configuration if you want the additional gravity-down control function.
Does Hoist Only include a hydraulic power unit?
No. You supply a compatible hydraulic system. Selecting “Primary” in the power-unit menu does not add a pump to Hoist Only.
What does the Premium Kit add?
Premium adds voltage-matched charging equipment to your selected Standard Kit. The 12V configurations include a RoaDCharger, 7-way harness and 33-watt solar panel. Twin Engine 24V Premium includes a 24V RoaDCharger and direct-wire connection, without a solar panel.
Shipping and pickup
Free freight delivery is available to qualifying commercial business addresses within commercially zoned areas equipped with a freight dock or forklift.
Residential, rural or farm deliveries may incur additional fees. Contact us to confirm delivery requirements and any applicable charges for your address.
Kits ship on a secured pallet for transit. Warehouse pickup is available at Primary Mover in Mandeville, Louisiana.
Warranty, manuals and downloads
- Prime Force warranty and coverage terms
- Prime Force installation and operator’s manual
- Compare Prime Force models by lifting capacity
- Compare Prime Force mounting dimensions
- Watch Primary Mover product and technical videos
Need help choosing your setup? Call 985-888-6554 or email sales@primarymover.com with your body dimensions, planned load, target dump angle and cycle-time priorities.
